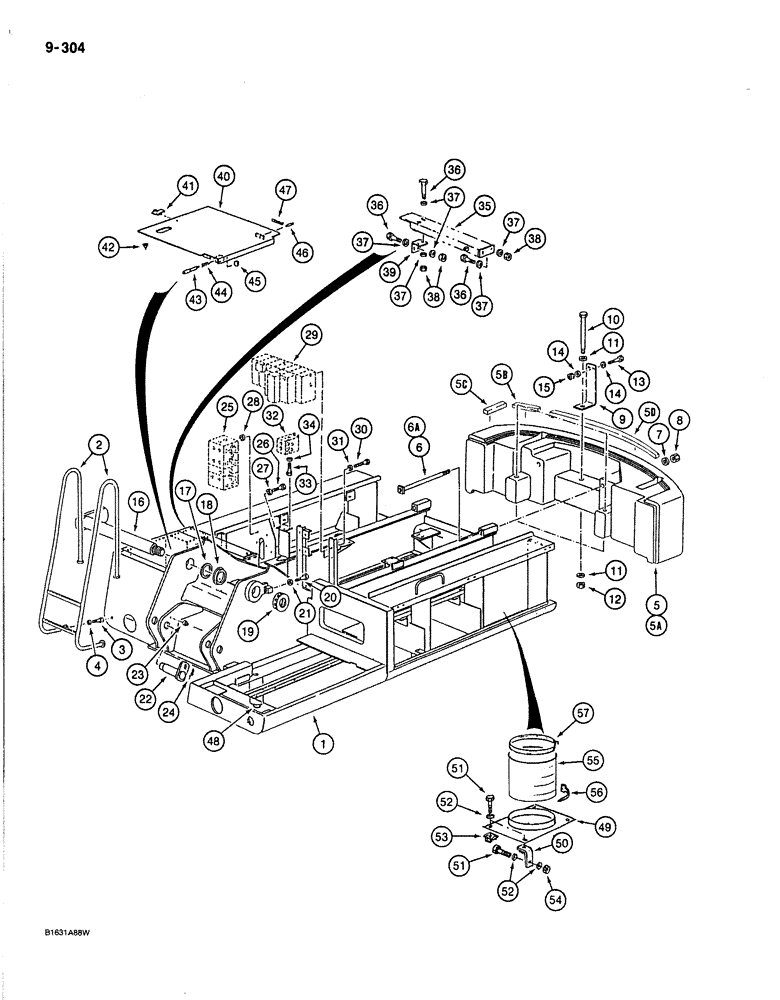

Запчасти Case 170B (9-304) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74341 THROUGH 74441 (09) - CHASSIS

1

P1154878

CHASSIS

TURNTABLE - excavator

1шт.

2

P4247919

LADDER

- platform access

1шт.

3

P33881

SCREW

BOLT -, Serial Range: ladder-platform

4шт.

4

P4328732

WASHER

SPACER - platform bolt

4шт.

5

P403845

BALANCER

COUNTERWEIGHT - rear, 10560 lb (4800 kg), P.I.N. 74341 - 74416

1шт.

5a

P503857

BALANCER

COUNTERWEIGHT - rear, 13860 lb. (6300 kg.), P.I.N. 74417 - 74456

1шт.

5b

REF

INSTRUCTION

SEAL - counterweight to turntable, 11-13/16" (300 mm) long, cut from P3195

2шт.

5c

REF

INSTRUCTION

SEAL - counterweight to turntable, 15-3/4" (400 mm) long, cut from P3195

2шт.

5d

REF

INSTRUCTION

SEAL - counterweight to turntable, 63" (1600 mm) long, cut from P3195

1шт.

6

P554821

TRUSS ROD

BOLT - counterweight to turntable, horizontal, used with 10560 lb (4800 kg) counterweight, Ref. 5

2шт.

6a

P828086

TRUSS ROD

BOLT - counterweigh to turntable, horizontal, used with 13860 lb (6300 kg) counterweight, Ref. 5A

2шт.

7

P1945333

WASHER

- flat, counterweight bolt

2шт.

8

P834544

SAFETY NUT

NUT - counterweight bolt

2шт.

9

P2325644

PLATE

BRACKET - center, counterweight

1шт.

10

P32784

SCREW

BOLT - counterweight to turntable, verticle

3шт.

11

P946391

WASHER

SPACER - counterweight bolt

6шт.

12

P834544

SAFETY NUT

NUT - counterweight bolt

3шт.

13

P33881

SCREW

BOLT - counterweight bracket

2шт.

14

P3528792

WASHER

SPACER - bracket bolt

4шт.

15

P134549

SAFETY NUT

NUT - bracket bolt

2шт.

16

P2530994

HEADED PIN

PIN -, Serial Range: boom-turntable

1шт.

17

P1945387

WASHER

- flat, boom to turntable pin

1шт.

18

P251304

SEAL

- boom pin at turntable

2шт.

19

P1634569

NUT

RETAINER - boom pin

1шт.

20

P2033040

SCREW

BOLT - pin retainer

1шт.

21

P4328747

WASHER

SPACER - retainer pin

1шт.

22

P2430960

HEADED PIN

PIN - boom, Serial Range: cylinder-turntable

2шт.

23

P50053

SHAFT LOCK

PIN - lock, boom cylinder pin, Serial Range: welded-turntable

2шт.

24

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, pin retainer

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-244 - 8-250

1шт.

26

P433839

SCREW

BOLT -, Serial Range: valve-turntable

4шт.

27

P4328733

WASHER

SPACER - bolt, outer

4шт.

28

P3528790

WASHER

SPACER - bolt, inner

4шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-234 - 8-242

1шт.

30

P433830

SCREW

BOLT - attachment, Serial Range: valve-turntable

4шт.

31

P3528791

WASHER

SPACER - attachment valve bolt

4шт.

32

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-274

1шт.

33

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

34

P3528795

WASHER

SPACER - power sensing valve bolt

3шт.

35

P2254809

CROSSBAR

BRACKET - cover support

1шт.

36

P133813

SCREW

BOLT - support bracket

6шт.

37

P3528795

WASHER

SPACER - bracket bolt

12шт.

38

P34598

SAFETY NUT

NUT - bracket bolt

6шт.

39

P1831635

ANGLE

BRACKET - lower support

1шт.

P7043859

PANEL

COVER ASSEMBLY - access, turntable, Includes: Refs. 40, 41

1шт.

40

NSS

NOT SOLD SEPARAT

COVER - turntable access

1шт.

41

P51922

LATCH

LOCK - access cover

1шт.

42

P41434

STOP

- rubber, access cover

2шт.

43

P2127967

PIN

- latch, cover

1шт.

44

P738143

COMPRESSION SPRING

SPRING - latch pin

1шт.

45

P29938

BALL KNOB

BALL - latch pin

1шт.

46

P27438

PIN

- cover

1шт.

47

P35522

SPLIT PIN

PIN - cotter, cover

1шт.

48

P2930907

PIN

- turntable locking, see Figure 9-332 for control parts in operator compartment

1шт.

49

P4540322

ORIFICE RING

SUPPORT - air intake, hydraulic oil cooler

1шт.

50

P5628290

SUPPORT

BRACKET - mounting, support

2шт.

51

P1133839

SCREW

BOLT - mounting, air intake support and bracket

6шт.

52

P3528795

WASHER

SPACER - mounting bolt

8шт.

53

P1334561

NUT

- support bolt, clip type

2шт.

54

P34598

SAFETY NUT

NUT - hex, bracket bolt

2шт.

55

P5931962

LOOM

INTAKE - air, hydraulic oil cooler

1шт.

56

P136922

CLAMP

- band, air intake

14шт.

57

P3036943

COLLAR CLAMP

CLAMP - retaining, air intake to oil cooler shroud

1шт.
