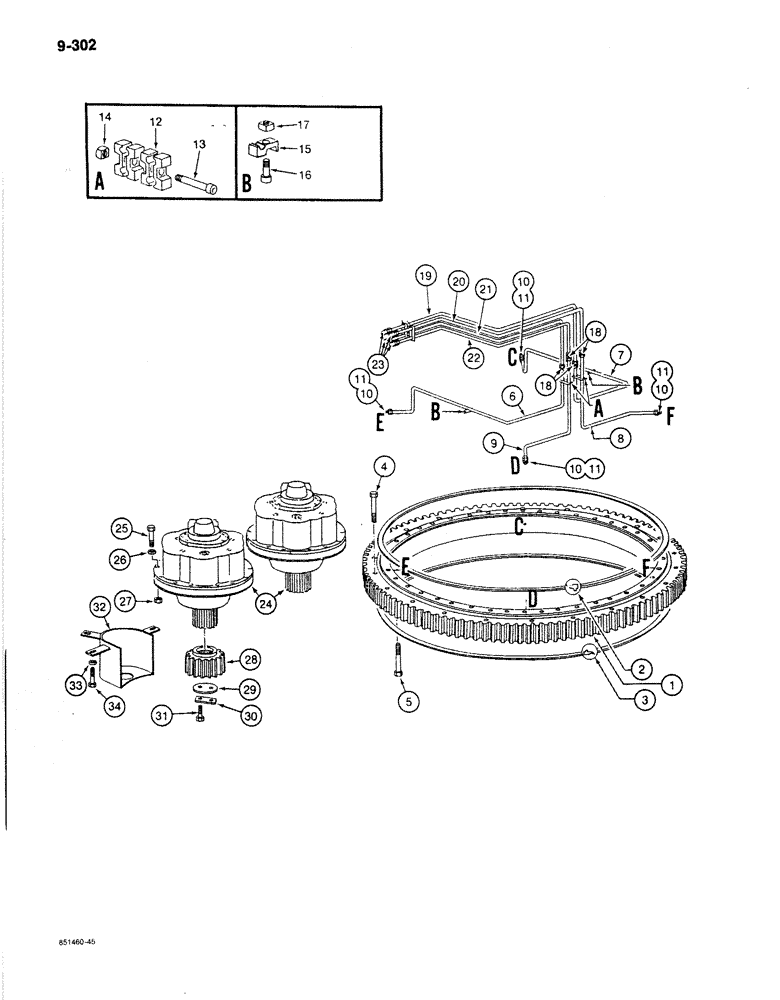

Запчасти Case 170B (9-302) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74341 THRU 74456 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
P739986
SLEWING RING
BEARING ASSEMBLY - turntable, Includes: Refs. 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
BEARING - turntable
1шт.
2
P2046071
SEAL
- upper
1шт.
3
P2046072
SEAL
- lower
1шт.
4
P1633808
SCREW
BOLT - bearing mounting, upper
24шт.
5
P1633808
SCREW
BOLT - bearing mounting, lower
24шт.
6
P5949143
PIPE
TUBE - lubrication, lower
1шт.
7
P5949142
PIPE
TUBE - lubrication, lower
1шт.
8
P7747677
PIPE
TUBE - lubrication, lower
1шт.
9
P7747676
PIPE
TUBE - lubrication, lower
1шт.
10
P837555
UNION
ADAPTER - lubrication, Serial Range: line-bearing
4шт.
11
P28424
COMPOSITE SEAL
SEAL - adapter
4шт.
12
P404292
SHIN
CLAMP - double tube
8шт.
13
P532901
SCREW
BOLT - tube clamp
2шт.
15
P404291
SHIN
CLAMP - single tube
2шт.
16
P32941
SCREW
BOLT - tube clamp
2шт.
18
P37553
UNION
ADAPTER - lubrication tube
4шт.
19
P5849057
PIPE
TUBE - lubrication, upper
1шт.
20
P5849058
PIPE
TUBE - lubrication, upper
1шт.
21
P5849060
PIPE
TUBE - lubrication, upper
1шт.
22
P5849059
PIPE
TUBE - LUBRICATION, upper
1шт.
23
J45801
LUBE NIPPLE,M8 x 1.25
straight M8 x 1.25
4шт.
24
P3143724
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - swing, parts list Figures 8-282 and 8-284
2шт.
25
P1133884
SCREW
BOLT - swing motor mounting
28шт.
26
P4328746
WASHER
SPACER - motor mounting bolt
28шт.
27
P134547
SAFETY NUT
NUT - motor mounting bolt
28шт.
28
P3739376
PINION
GEAR - swing motor
2шт.
29
P130159
WASHER
PLATE - gear retainer
2шт.
30
P22804
BRAKE
PLATE - bolt locking
2шт.
31
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
BOLT, - Gear retainer Hex, M10 x 25, 10.9, Full Thd
4шт.
32
P4540382
HOUSING
COVER - gear
2шт.
33
P3528793
WASHER
SPACER - cover bolt
6шт.
34
P33840
SCREW
BOLT - gear cover
6шт.
Выбрано товаров: 35
