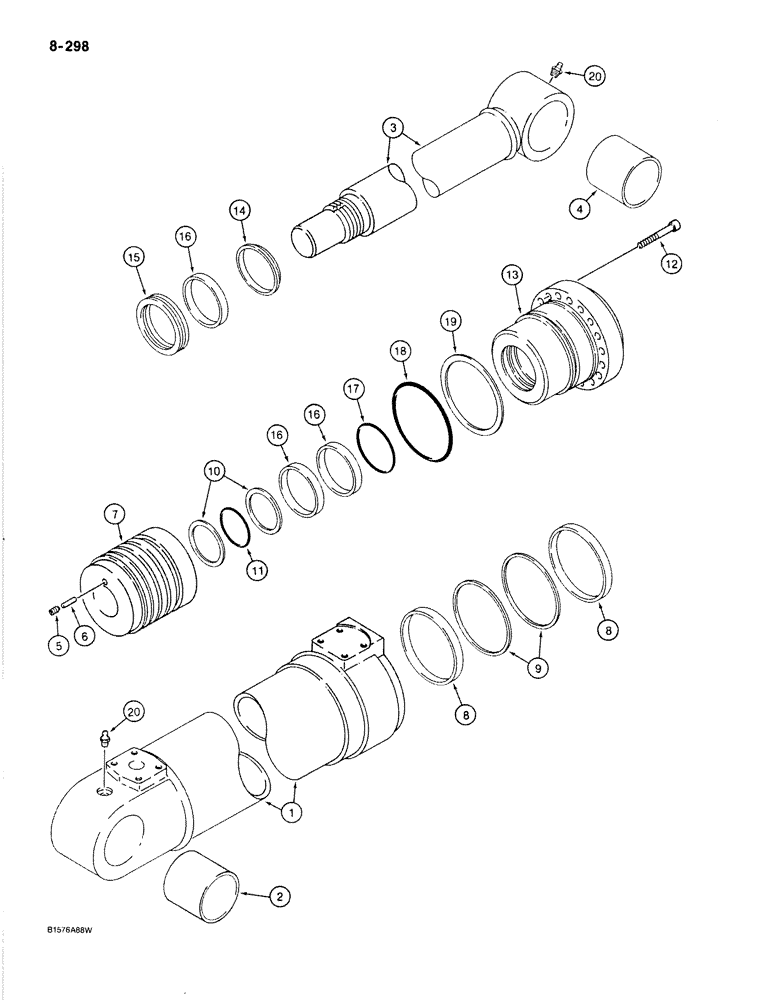

Запчасти Case 170B (8-298) - ARM CYLINDER, P.I.N. 74444, 74445 AND 74448 THROUGH 74456 (08) - HYDRAULICS

P7646768

CYLINDER

ASSEMBLY - arm, Includes: Refs. 1-20

1шт.

P1452450

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928613

BUSHING

- tube

1шт.

P8349444

PISTON ROD

ROD ASSEMBLY - piston, Includes: Refs. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928613

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

- set, pin

1шт.

Part of seal kit P/N P5349629

1шт.

6

P827733

PIN

- locking

1шт.

Part of seal kit P/N P5349629

1шт.

7

P3829157

PISTON

- cylinder

1шт.

8

P1845297

BAND

RING - wear, at piston

2шт.

Part of seal kit P/N P5349629

1шт.

9

P646038

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of seal kit P/N P5349629

1шт.

10

P745375

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of seal kit P/N P5349629

1шт.

11

P630350

O-RING

- piston rod

1шт.

Part of seal kit P/N P5349629

1шт.

12

P532917

SCREW

BOLT - hex socket head, 18 mm x 60 mm, class 10.9

18шт.

13

P2229075

CYLINDER END CAP

GLAND - cylinder packing

1шт.

14

*P1251305

WIPER - piston rod

1шт.

15

P1751229

SEAL

- packing, piston rod

1шт.

Part of seal kit P/N P5349629

1шт.

16

P7846068

SEAL

RING - wear

3шт.

Part of seal kit P/N P5349629

1шт.

17

P1751239

SEAL

O-RING - gland, inner

1шт.

Part of seal kit P/N P5349629

1шт.

18

P1730426

O-RING

- gland, outer

1шт.

Part of seal kit P/N P5349629

1шт.

19

P6846017

BACK-UP RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N P5349629

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

straight, if used M8 x 1.25

2шт.

P5349629

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 6, 8-11 and 15-19

1шт.
