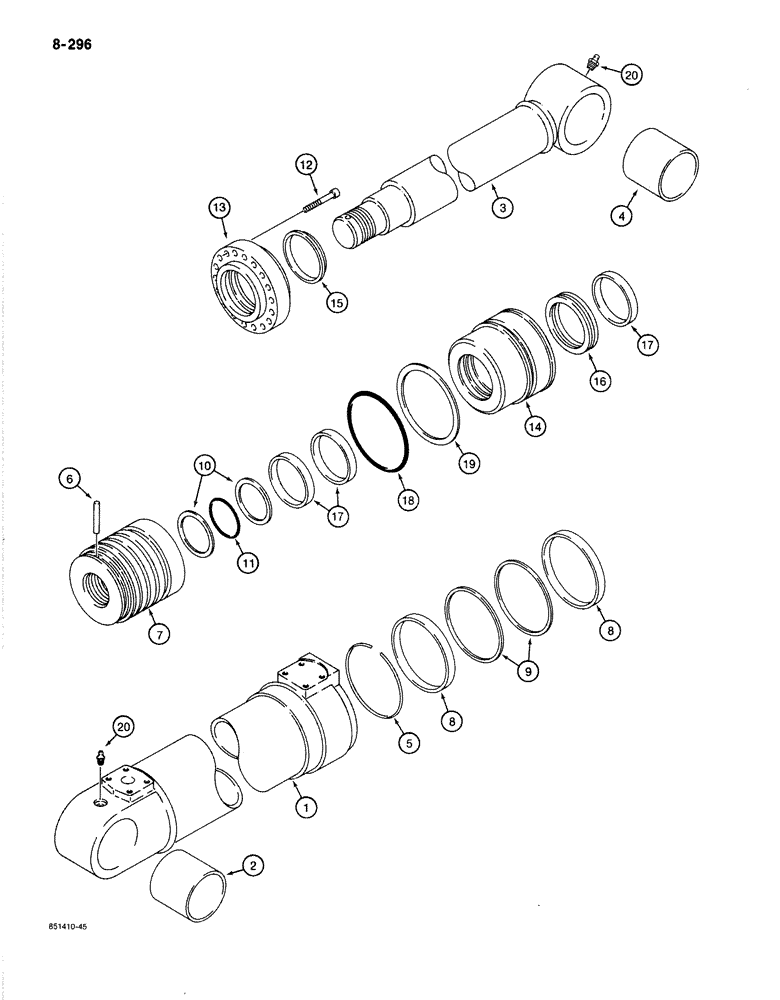

Запчасти Case 170B (8-296) - ARM CYLINDER, P.I.N. 74341 THROUGH 74443, 74446, AND 74447 (08) - HYDRAULICS

P6646736

CYLINDER ASSY.

CYLINDER - arm, Includes: Refs. 1-20

1шт.

P9749362

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928613

BUSHING

- tube

1шт.

P7249471

PISTON ROD

ROD ASSEMBLY - piston, Includes: Refs. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928613

BUSHING

- piston rod

1шт.

5

P836976

SPECIAL RING

RETAINER - locking pin

1шт.

6

P27362

PIN

- locking

1шт.

7

P929757

NUT

PISTON - cylinder

1шт.

8

P6846053

BAND

RING - wear

2шт.

Part of Seal Kit P/N P3649680

1шт.

9

P646038

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit P/N P3649680

1шт.

10

P4246023

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of Seal Kit P/N P3649680

1шт.

11

P30344

O-RING

- piston rod

1шт.

Part of Seal Kit P/N P3649680

1шт.

12

P532917

SCREW

BOLT - gland

18шт.

13

P2630123

CAP

RETAINER - packing gland

1шт.

14

P1629088

CYLINDER END CAP

GLAND - cylinder packing

1шт.

15

P2046008

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N P3649680

1шт.

16

P651262

SEAL

- packing, piston rod

1шт.

Part of Seal Kit P/N P3649680

1шт.

17

P2746023

SEGMENT

RING - wear

3шт.

Part of Seal Kit P/N P3649680

1шт.

18

P1730426

O-RING

- gland

1шт.

Part of Seal Kit P/N P3649680

1шт.

19

P6846017

BACK-UP RING

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N P3649680

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.

P3649680

SEAL PACKAGE

KIT - seal, includes Ref. 8 - 11 and 15 - 19

1шт.

P6754860

For mounting safety valves on dipperstick small cylinder

1шт.
