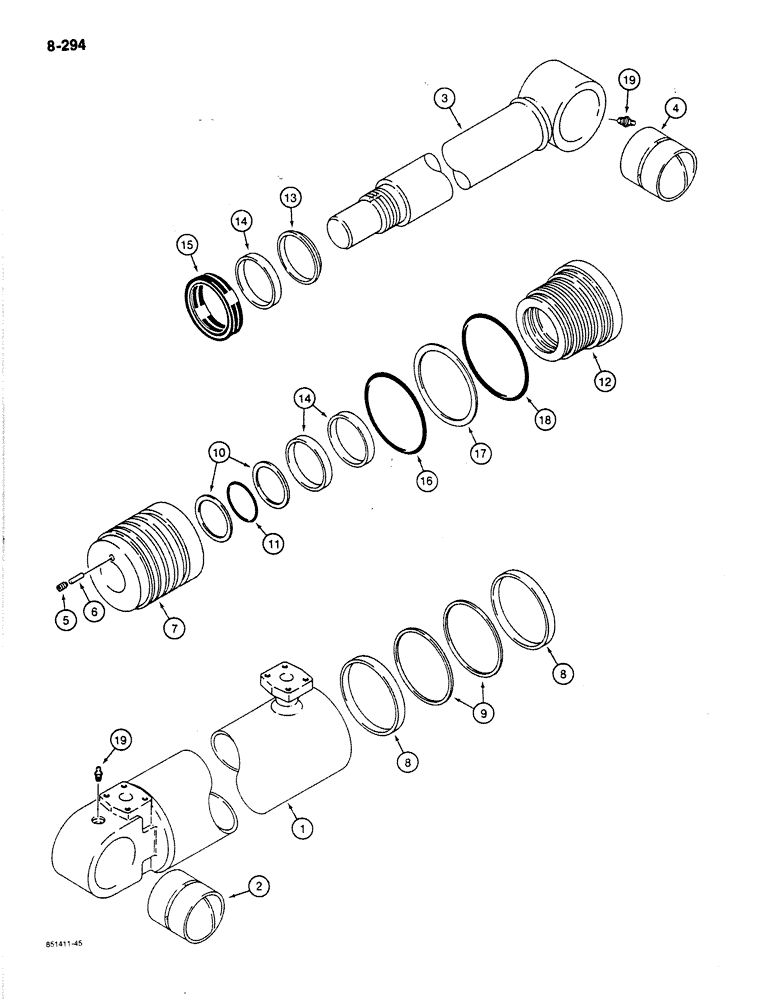

Запчасти Case 170B (8-294) - BOOM AND TOOL CYLINDER, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

P7346753

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom and tool, Includes: Refs. 1-19

3шт.

P1052406

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928612

BUSHING

- tube

1шт.

P7949478

PISTON ROD

ROD ASSEMBLY - piston, Includes: Refs. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928612

BUSHING

- piston rod

1шт.

5

P1432952

SCREW

- set, pin

1шт.

Part of Seal Kit P/N P4949661

1шт.

6

P827736

PIN

- locking

1шт.

Part of Seal Kit P/N P4949661

1шт.

7

P3829101

PISTON

- cylinder

1шт.

8

P2045226

BAND

RING - wear

2шт.

Part of Seal Kit P/N P4949661

1шт.

9

P1451295

SEAL

- piston

2шт.

Part of Seal Kit P/N P4949661

1шт.

10

4646017

BACKUP RING - backup, piston rod O-ring

2шт.

Part of Seal Kit P/N P4949661

1шт.

11

P30346

O-RING

- piston rod

1шт.

Part of Seal Kit P/N P4949661

1шт.

12

P3729199

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P146036

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N P4949661

1шт.

14

P2746048

SEGMENT

RING - wear

3шт.

Part of Seal Kit P/N P4949661

1шт.

15

P1351217

SEAL

- u-cup, piston rod

1шт.

Part of Seal Kit P/N P4949661

1шт.

16

P1430496

O-RING

- gland, small

1шт.

Part of Seal Kit P/N P4949661

1шт.

17

P7346017

LEDGER PLATE

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N P4949661

1шт.

18

P1830404

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

- gland, large

1шт.

Part of Seal Kit P/N P4949661

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.

P4949661

SEAL PACKAGE

KIT - seal, includes Ref. 5, 6, 8 -11 and 13 - 18

1шт.

P6754858

KIT

For mounting safety valves on the boom cylinder

1шт.
