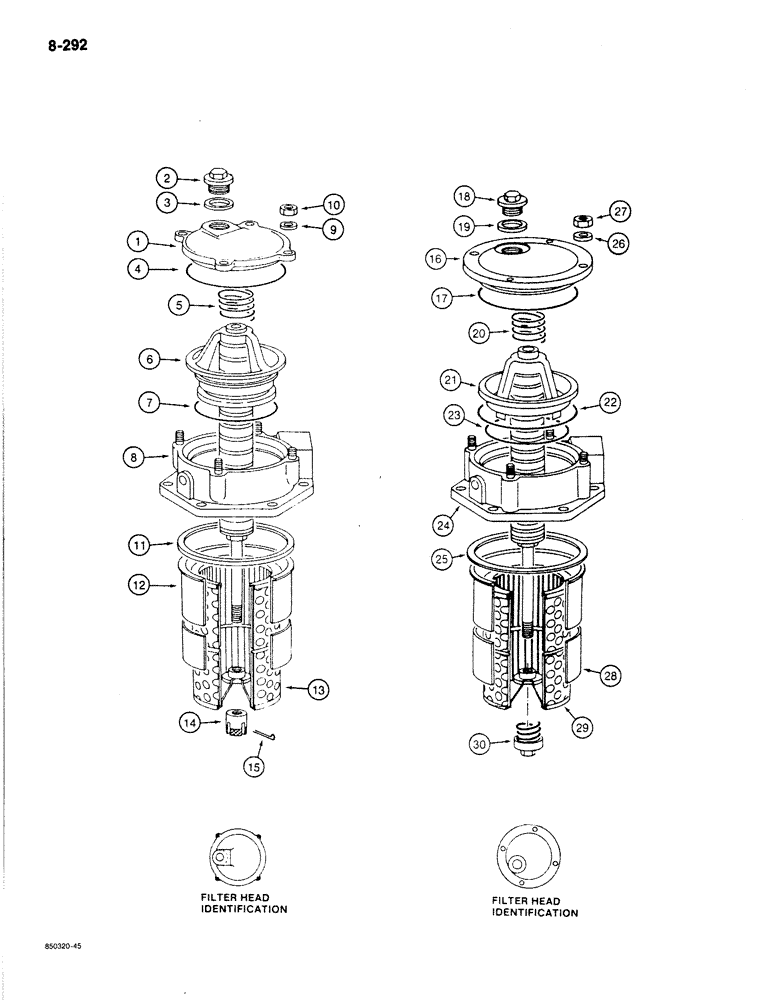

Запчасти Case 170B (8-292) - HYDRAULIC OIL FILTER, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

P1050539

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering components, Includes: Refs. 1-15

3шт.

1

P1050583

COVER

HEAD - filter

1шт.

2

P1337465

PLUG

- filter head

1шт.

3

P545233

SEAL

- plug

1шт.

4

P30364

O-RING

- head

1шт.

5

P38257

SPRING

- filter

1шт.

6

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter

1шт.

7

P1430496

O-RING

- magnetic core

1шт.

8

P1350513

BODY

BASE - filter

1шт.

9

P35047

WASHER

- head

4шт.

10

P34177

DEUTZ PART

NUT - head retaining

4шт.

11

P945264

WASHER, SEALING

SEAL - element

1шт.

12

P250535

FILTER COVER

HOUSING - element, filter

1шт.

13

P150580

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

14

P834558

NUT

- magnetic core retaining

1шт.

15

P35513

SPLIT PIN

PIN - lock, magnetic core

1шт.

P1050539

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering comnponents, Includes: P1350545 HEAD ASSEMBLY and Refs. 16-30

3шт.

P1350545

COVER

HEAD ASSEMBLY - filter, Includes: Refs. 16, 17, 18, and both 19s

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

17

P30363

O-RING

- filter head

1шт.

18

P1737431

PLUG

- filter head, 2.05" (52 mm) diameter

1шт.

18

P1337465

PLUG

- filter head, 1.77" (45 mm) diameter

1шт.

19

P146079

SEAL

- plug, used with 2.05" (52 mm) diameter plug

1шт.

19

P545233

SEAL

- plug, used with 1.77" (45 mm) diameter plug

1шт.

20

P738116

COMPRESSION SPRING

SPRING - filter head

1шт.

21

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter

1шт.

22

P130474

O-RING

- magnetic, core, large

1шт.

23

P1630425

O-RING

- magnetic core, small

1шт.

P1350546

BODY

BASE ASSEMBLY - filter, Includes: Refs. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

25

P945264

WASHER, SEALING

SEAL -, Serial Range: base-housing

1шт.

26

P35047

WASHER

- filter head

4шт.

27

P34177

DEUTZ PART

NUT - filter head

4шт.

28

P250535

FILTER COVER

HOUSING - filter element

1шт.

29

P150580

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

30

P1950529

SET OF PARTS

NUT ASSEMBLY - includes spring, element to magnetic core

1шт.
