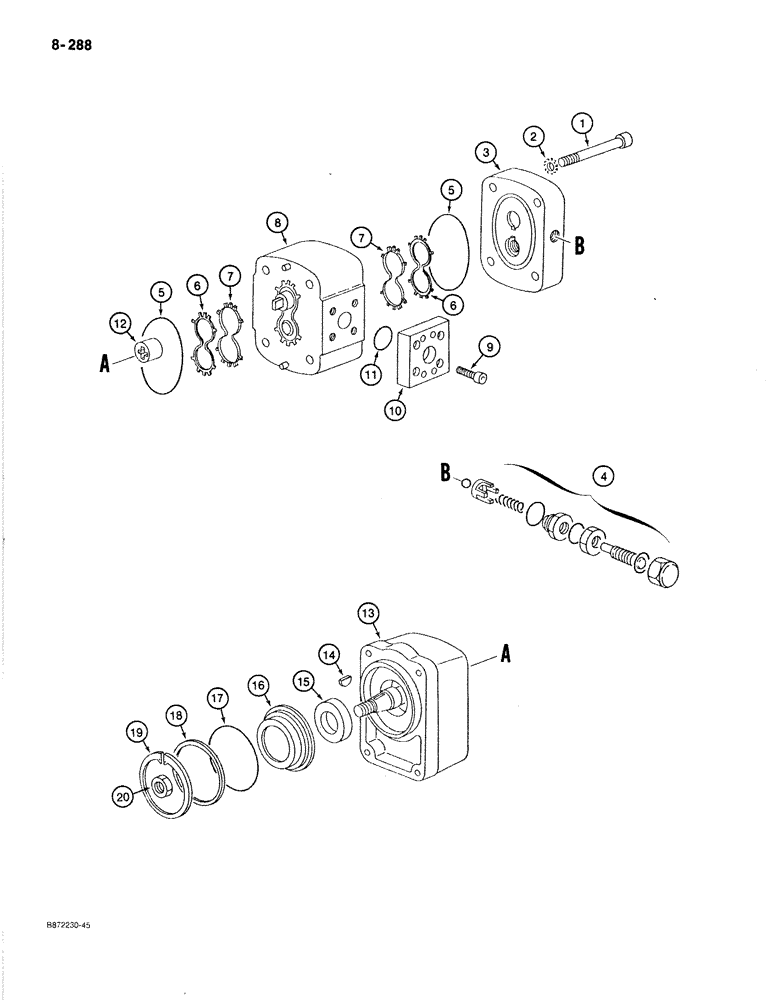

Запчасти Case 170B (8-288) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 60200000 AND AFTER (08) - HYDRAULICS

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, Includes: Refs. 1-20

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

4

P5449608

KIT

VALVE ASSEMBLY - motor relief, contains no individual serviceable components

1шт.

P5449671

SEAL PACKAGE

KIT - seal repair, Includes: Refs. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - gear housing

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer, gear housing

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, gear housing

4шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - includes gear set

1шт.

P3837782

SHIN

BLOCK ASSEMBLY - oil cooler motor, Includes: Refs. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - block mounting

4шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - oil cooler motor

1шт.

11

P7546065

SEAL

O-RING - block

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - includes drive shaft

1шт.

14

P236199

BUCKET TOOTH KEY

KEY - shaft

1шт.

15

P7146019

BUSHING

SEAL - shaft

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

17

P2230448

O-RING

- retainer

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

19

P936324

RING, SNAP

RING - snap, shaft

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - locking

1шт.

P5949630

SEAL PACKAGE

KIT, for the P2343732 motor

1шт.
