Запчасти Case 170B (8-286) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 40700000 THROUGH 60199999 (08) - HYDRAULICS

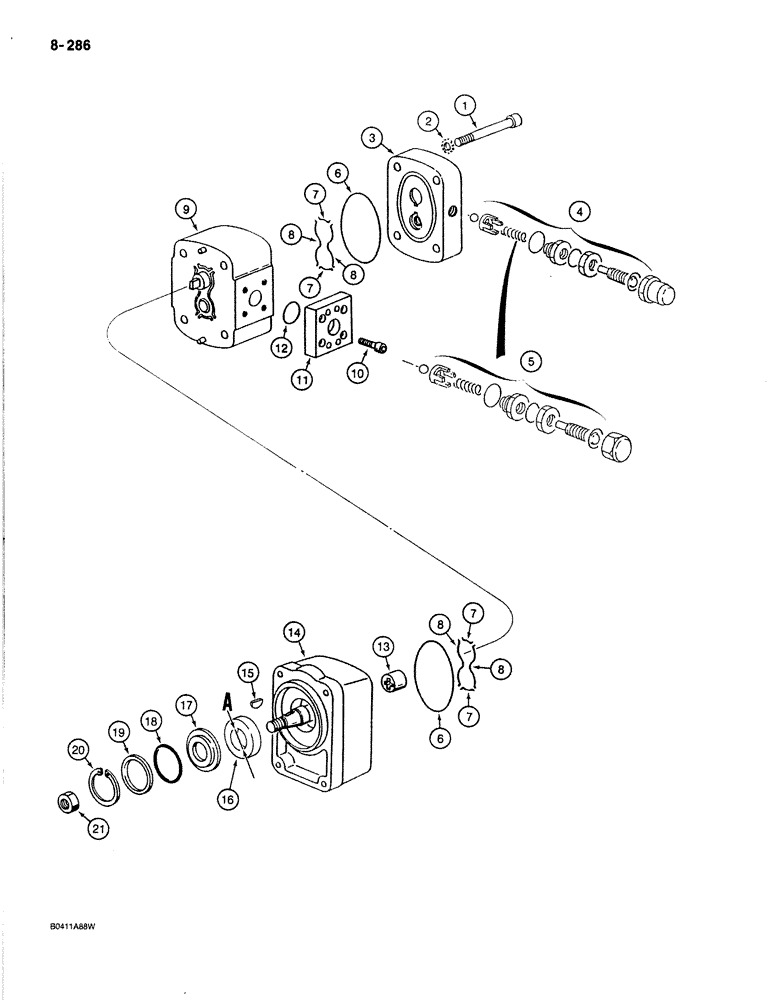

Схема запчастей Case 170B - (8-286) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 40700000 THROUGH 60199999 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, Includes: Refs. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

4

P3749685

KIT

VALVE ASSEMBLY - motor relief, contains no individual serviceable components, if used

1шт.

5

P5449608

KIT

VALVE ASSEMBLY - motor relief, contains no individual serviceable components, if used

1шт.

P3749672

KIT

- seal repair, Includes: Refs. 6-8

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gear housing

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - small, gear housing

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - large, gear housing

4шт.

9

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - includes gear set

1шт.

P3837782

SHIN

BLOCK ASSEMBLY - oil cooler motor, Includes: Refs. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

BOLT - block mounting

4шт.

11

NSS

NOT SOLD SEPARAT

BLOCK - oil cooler motor

1шт.

12

P7546065

SEAL

O-RING - block

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING - shaft

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - includes drive shaft

1шт.

15

P236199

BUCKET TOOTH KEY

KEY - shaft

1шт.

16

P8046005

SEAL

- shaft, "A" dimension is 1" (25 mm)

1шт.

16

P7146019

BUSHING

SEAL - shaft, "A" dimension is 25/32" (20 mm)

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

18

P2230448

O-RING

- retainer

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

20

P936324

RING, SNAP

RING - snap, shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - locking

1шт.

P5949630

SEAL PACKAGE

KIT

1шт.

Выбрано товаров: 26
