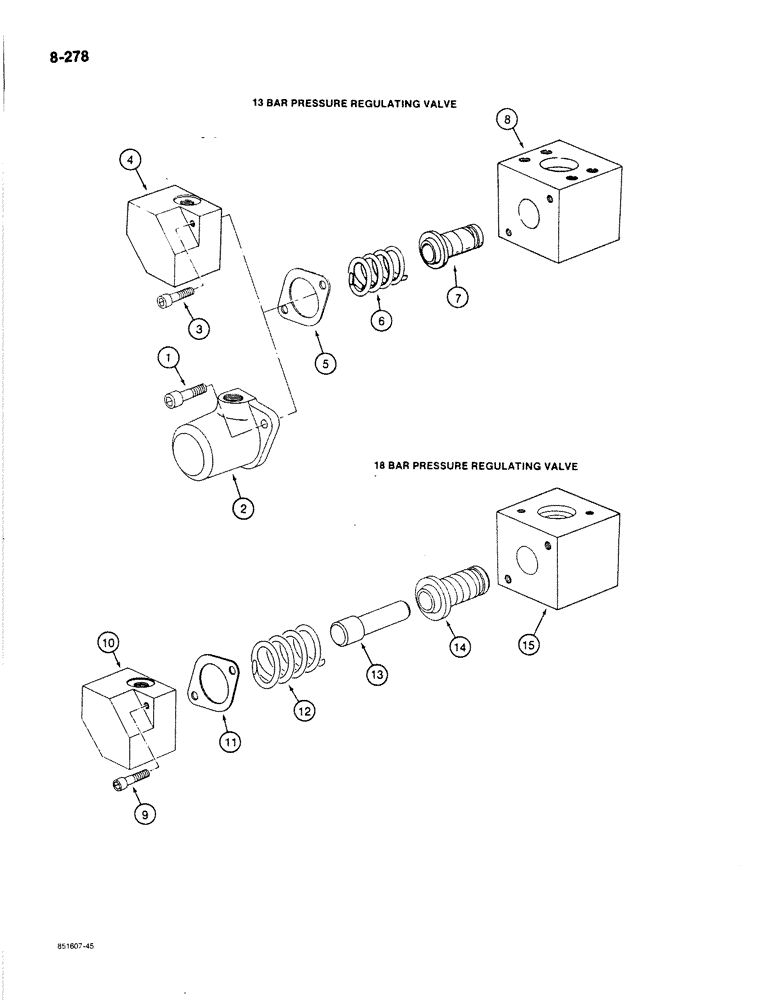

Запчасти Case 170B (8-278) - PRESSURE REGULATING VLVS-13 BAR & 18 BAR,PIN 74341-74456,13 BAR REGLT VLV (08) - HYDRAULICS

P1143343

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 185 psi, (1275 KPa, 13 bar), Includes: Refs. 1-8

2шт.

1

P32931

SCREW

BOLT - mounting, used with Ref. 2 round-type end cap

2шт.

2

REF

INSTRUCTION

CAP - end, round type, no longer available, order Ref. 4, P1229815 block-type cap

1шт.

3

P832916

SCREW

BOLT - mounting, used with Ref. 4, P1229815 block-type cap

2шт.

4

P1229815

CAP

- end, block type, replaces round-type cap used on some machines

1шт.

5

P5046005

SEAL

GASKET - end cap

1шт.

6

P1038167

COMPRESSION SPRING

SPRING - regulator valve

1шт.

7

P2327865

VALVE POPPET

PLUNGER - valve

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve

1шт.

P3443333

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 256 psim (1765 KPa, 18 bar), Includes: Refs. 9-15

1шт.

9

P832916

SCREW

BOLT - mounting, cap to block, 18 bar pressure regulating valve

2шт.

10

P1229815

CAP

- end, regulator valve, 18 bar pressure regulating valve

1шт.

11

P5046005

SEAL

GASKET - end cap, 18 bar pressure regulating valve

1шт.

12

P1038168

COMPRESSION SPRING

SPRING - regulating valve, 18 bar pressure regulating valve

1шт.

13

P4727876

PISTON

PLUNGER - valve, 18 bar pressure regulating valve

1шт.

14

P4727875

VALVE POPPET

SEAT - plunger, 18 bar pressure regulating valve

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - regulating valve, 18 bar pressure regulating valve

1шт.
