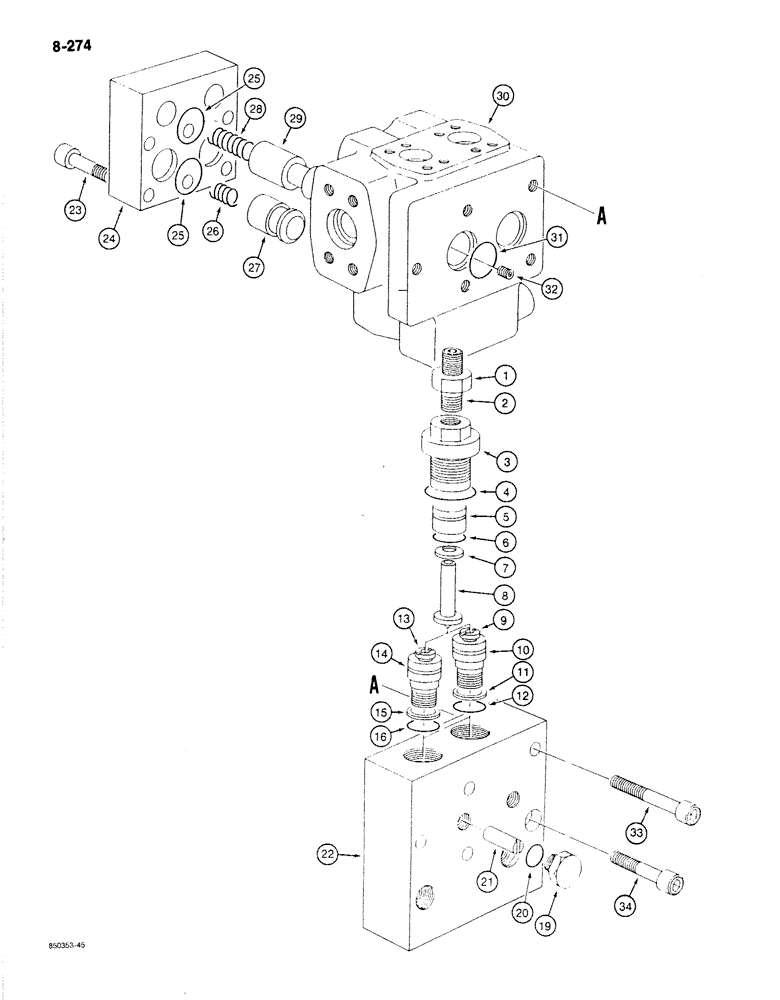

Запчасти Case 170B (8-274) - POWER SENSING VALVE, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, Includes: P2543324 BLOCK ASSEMBLY and Refs. 1-34

1шт.

P2543324

SHIN

BLOCK ASSEMBLY - power sensing valve, Includes: Refs. 1-22

1шт.

1

P34564

NUT

- locking

2шт.

2

P32859

SCREW

- set, adjusting

2шт.

3

P2037720

CAP

BODY - valve

2шт.

4

P130486

O-RING

- body

2шт.

5

P929835

TAPPET

SLEEVE - plunger

2шт.

6

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- sleeve

2шт.

7

P34909

RUBBER WASHER

SPRING - Belleville, plunger

1шт.

8

P1229870

GUIDE

PLUNGER - valve

2шт.

P4037702

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: Refs. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - plunager seat

1шт.

11

P945217

BACK-UP RING

RING - backup, O-ring

1шт.

12

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- housing

1шт.

P4037703

VALVE POPPET

HOUSING ASSEMBLY - plunger seat, Includes: Refs. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - plunger seat

1шт.

15

P945217

BACK-UP RING

RING - backup, O-ring

1шт.

16

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- housing

1шт.

19

P1737452

PLUG

- valve block

2шт.

20

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

2шт.

21

NSS

NOT SOLD SEPARAT

PISTON - valve

2шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

P4237786

SHIN

BLOCK AND HOUSING ASSEMBLY - power sensing valve, Includes: Refs. 23-32

1шт.

23

P32937

SCREW

BOLT - block mounting

6шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - end

1шт.

25

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- block

4шт.

26

P38192

COMPRESSION SPRING

SPRING - poppet

2шт.

27

NSS

NOT SOLD SEPARAT

POPPET - power sensing valve

2шт.

28

P1038171

COMPRESSION SPRING

SPRING - spool

2шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - power sensing valve

2шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - spool

1шт.

31

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- spool housing

2шт.

32

P233094

SCREW

PLUG - orifice

2шт.

33

P32954

SCREW

BOLT - valve block, long

4шт.

34

P32937

SCREW

BOLT - valve block, short

1шт.
