(8-266) - SOLENOID CONTROL VALVE - 35 BAR, P.I.N. 74341 THROUGH 74456

Запчасти Case 170B (8-266) - SOLENOID CONTROL VALVE - 35 BAR, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

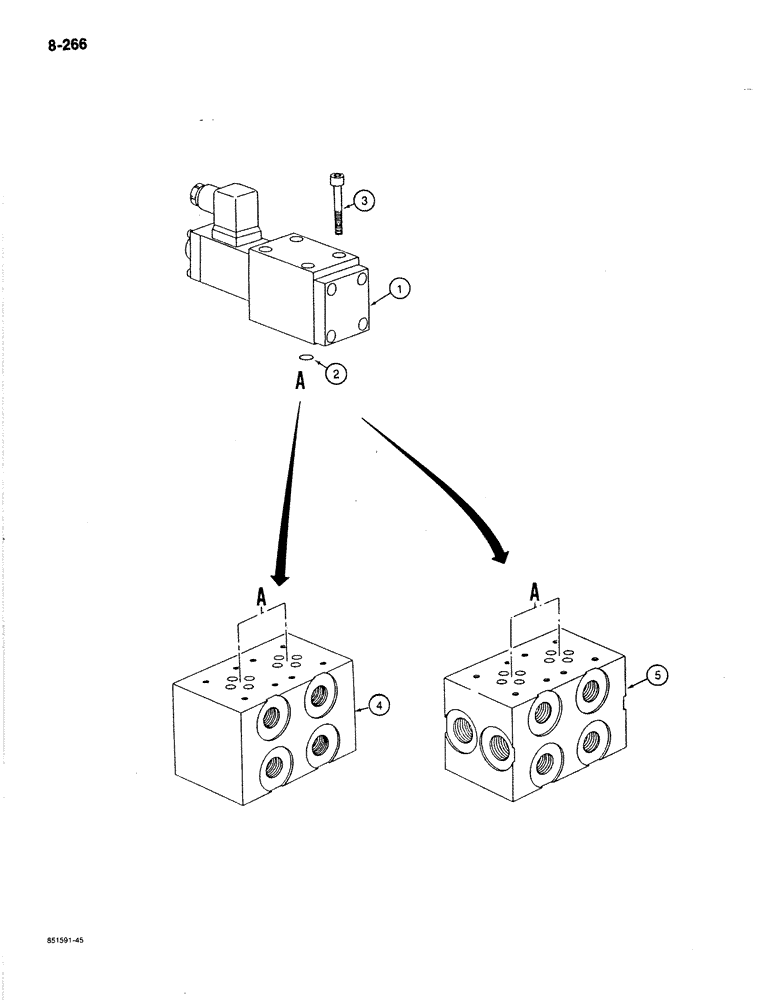

Схема запчастей Case 170B - (8-266) - SOLENOID CONTROL VALVE - 35 BAR, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1843371

SHIN

VALVE ASSEMBLY - solenoid, 35 bar, Includes: Refs. 1-3

6шт.

1

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

2

P1230430

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-, Serial Range: valve-block

4шт.

3

P232916

SCREW

-, Serial Range: valve-block

4шт.

4

P3237722

LARGE PLATE

BLOCK - manifold, solenoid valve

1шт.

5

P3237734

LARGE PLATE

BLOCK - manifold, solenoid valve

1шт.
