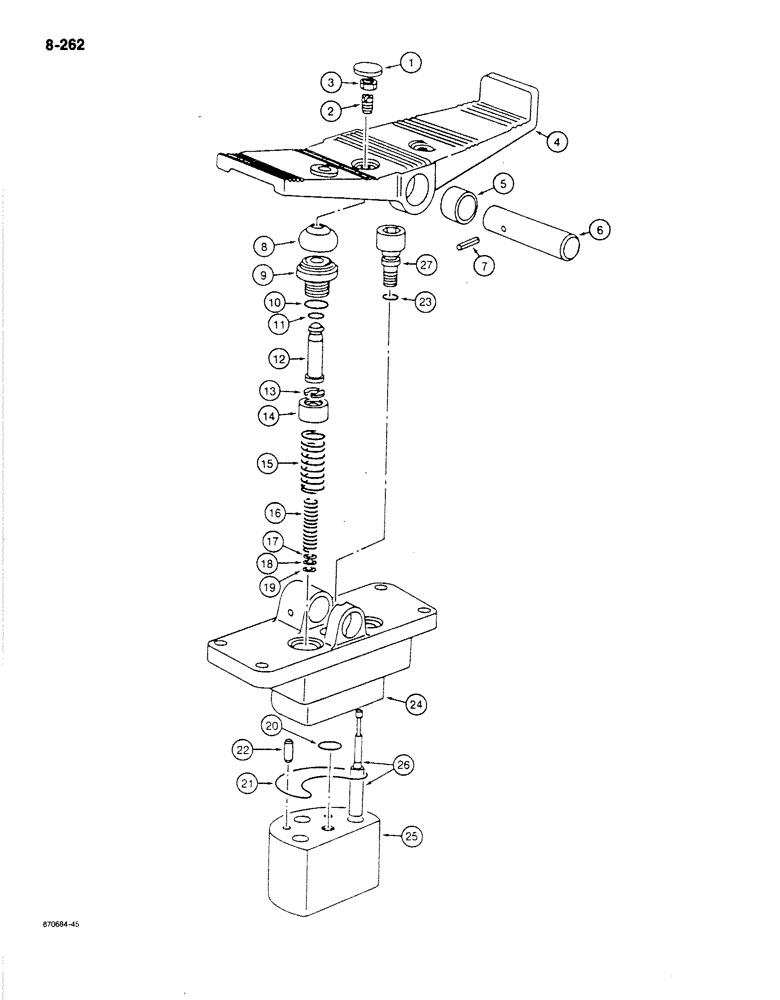

Запчасти Case 170B (8-262) - FOOT CONTROL VALVE - REXROTH, P.I.N. 74398 AND 74400 THROUGH 74456 (08) - HYDRAULICS

P1643394

BLOCK ASSY.

VALVE ASSEMBLY - foot control, Rexroth manufactured, if used, see Figure 8-264 for units equipped with Monsun-Tison manufactured foot control valve, Includes: P5242747 PEDAL ASSEMBLY and Refs. 1-27

2-3шт.

P5242747

PEDAL

ASSEMBLY - foot, Includes: Refs. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - pedal set screw

1шт.

2

P3533052

SCREW

- set, foot pedal (replaced NSS)

1шт.

3

P34211

NUT

- hex, jam

1шт.

4

NSS

NOT SOLD SEPARAT

PEDAL - valve control

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - pedal

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal pivot

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roll, pivot shaft

1шт.

P3749679

KIT

PISTON ASSEMBLY - foot control valve, Includes: Refs. 8-12

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston

1шт.

Part of seal repair kit P/N P5449619

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston guide, outer

1шт.

Part of seal repair kit P/N P5449619

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston guide, inner

1шт.

Part of seal repair kit P/N P5449619

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - foot control valve

1шт.

P5449661

KIT

- spring and shim, Includes: Refs. 13-19

2шт.

13

NSS

NOT SOLD SEPARAT

ORIFICE - spring guide

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

17

P1545342

BLOCK

SHIM - 0.004" (0.1 mm) thick

1шт.

18

P1545342

BLOCK

SHIM - 0.008" (0.2 mm) thick

1шт.

19

P1545343

BLOCK

SHIM - 0.020" (0.5 mm) thick

1шт.

P5449620

KIT

- seal, Includes: Refs. 20-23

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - body to block, small

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - body to block, large

1шт.

22

NSS

NOT SOLD SEPARAT

PIN -, Serial Range: block-body

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - retainer stud

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - foot control valve, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - foot pedal mounting

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve

2шт.

27

NSS

NOT SOLD SEPARAT

STUD - retainer, foot control valve

1шт.

P5449619

SEAL PACKAGE

KIT - seal repair, Includes: Ref. 8, 10 and 11

1шт.
