(8-260) - FOOT CONTROL VALVE - P2643318, P.I.N.74341 THROUGH 74397 AND 74399

Запчасти Case 170B (8-260) - FOOT CONTROL VALVE - P2643318, P.I.N.74341 THROUGH 74397 AND 74399 (08) - HYDRAULICS

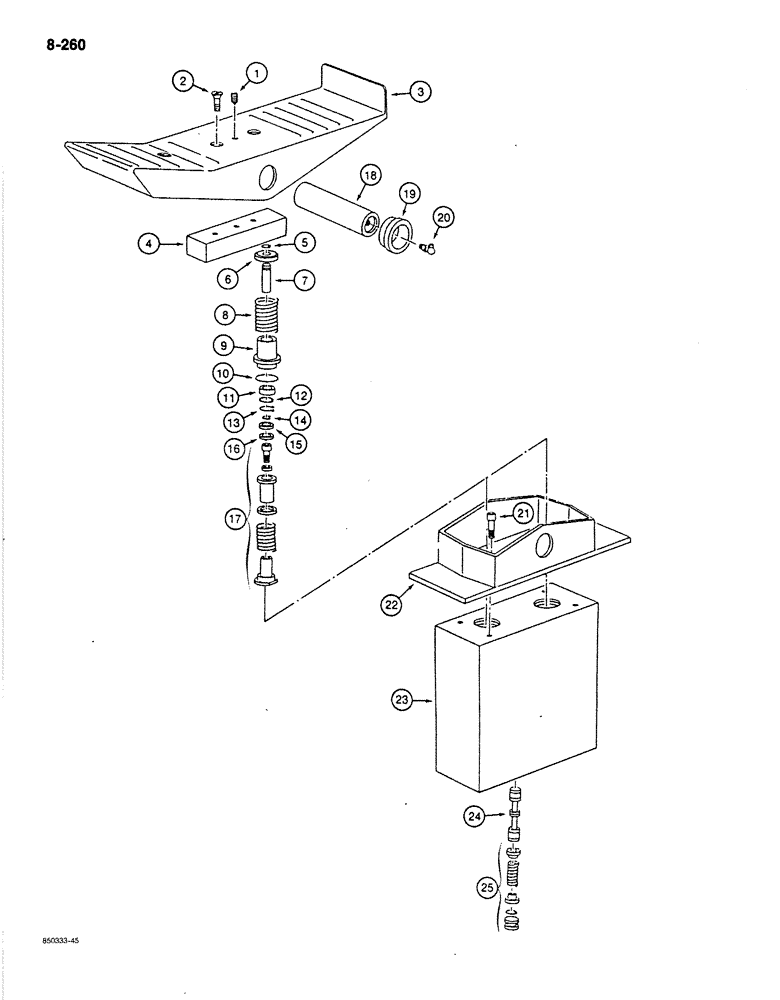

Схема запчастей Case 170B - (8-260) - FOOT CONTROL VALVE - P2643318, P.I.N.74341 THROUGH 74397 AND 74399 (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P2643318

BLOCK ASSY.

VALVE ASSEMBLY - foot control, see Figure 8-262 or 8-264 for control valves used on P.I.N. 74398 and 74400 - 74456. P2643318 valve is no longer available, order P1643394 with replacing complete valve, see Figure 8-262, Includes: Refs. 1-25

2-3шт.

P4842792

PEDAL

ASSEMBLY - foot, Includes: Refs. 1-4

1шт.

1

P32826

SCREW - set, foot pedal

1шт.

2

P32446

SCREW

- foot pedal

2шт.

3

NSS

NOT SOLD SEPARAT

PEDAL - valve control

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK - pedal stop

1шт.

P2737753

CARTRIDGE

PISTON ASSEMBLY - foot control valve, Includes: Refs. 5-14

2шт.

5

NSS

NOT SOLD SEPARAT

RING - snap, piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - foot control valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - foot control valve

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

10

P1630415

O-RING

- spring guide

1шт.

11

P3946095

SEAL

- spring guide

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

13

NSS

NOT SOLD SEPARAT

RING - snap, large

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, small

1шт.

15

P1545342

BLOCK

SHIM - 0.008" (0.2 mm) thick

1шт.

16

P1545343

BLOCK

SHIM - 0.020" (0.5 mm) thick

1шт.

17

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - foot control valve, component parts not serviced separately

2шт.

P4046287

SUPPORT

PLATE ASSEMBLY - foot pedal mounting, Includes: Refs. 18-22

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - foot pedal pivot

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - mounting plate

2шт.

20

P452828

FITTING - grease, lubrication, if used

1шт.

21

P1232912

SCREW

BOLT - plate mounting

4шт.

22

NSS

NOT SOLD SEPARAT

PLATE - foot pedal valve

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - foot control valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - foot control valve

2шт.

25

P4046283

CARTRIDGE

SPRING ASSEMBLY - spool return, component parts not serviced separately

2шт.
