Запчасти Case 170B (8-258) - HAND CONTROL VALVE - MONSUN-TISON, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

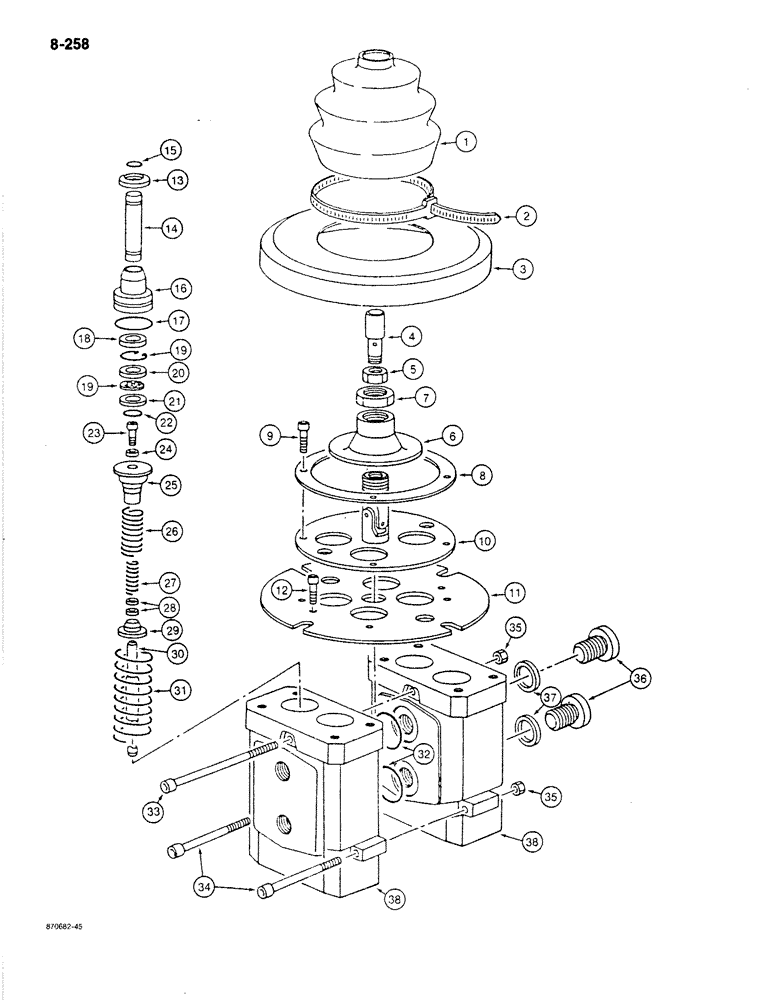

Схема запчастей Case 170B - (8-258) - HAND CONTROL VALVE - MONSUN-TISON, P.I.N. 74341 THROUGH 74456 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

P2643328

BLOCK ASSY.

VALVE ASSEMBLY - hand control, Monsun-Tison manufactured, if used, see Figure 8-256 for units equipped with Rexroth hand control valve, Includes: Refs. 1-38

2шт.

1

P2340449

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

STRAP - tie, boot

1шт.

3

P7230165

PROTECTOR

RING - rubber, valve body

1шт.

4

P1027976

PIN

- control lever

1шт.

5

P34546

NUT

- hex, 14 mm

1шт.

P5328294

LARGE PLATE

KIT - cam and plate, Includes: Refs. 6-12

1шт.

6

NSS

NOT SOLD SEPARAT

ACTUATOR - control lever

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - actuator

1шт.

8

NSS

NOT SOLD SEPARAT

RING - top cover

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - ring

4шт.

10

NSS

NOT SOLD SEPARAT

JOINT - universal, control lever

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - mounting plate

4шт.

P3143665

CARTRIDGE

KIT - cartridge and guide, Includes: Refs. 13-22

4шт.

13

NSS

NOT SOLD SEPARAT

WASHER - guide

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - guide

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - guide pin

1шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - guide, outer

1шт.

18

P8046003

OIL SEAL

SPACER - cartridge

1шт.

19

P936337

SPARE PART SET

KIT - retainer

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - cartridge

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cartridge

1шт.

22

P2230446

O-RING

- guide, inner

1шт.

P3143664

CARTRIDGE

KIT - spring, Includes: Refs. 23-31

4шт.

23

NSS

NOT SOLD SEPARAT

SCREW - cartridge

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - screw

1шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - spring, upper

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - spring

2шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - spring, lower

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - regulating

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - spool return

1шт.

P144988

TRUSS ROD

KIT - seal and tie bolt, Includes: Refs. 32-37

1шт.

32

P2230445

O-RING

- valve body

2шт.

33

NSS

NOT SOLD SEPARAT

BOLT - upper

1шт.

34

NSS

NOT SOLD SEPARAT

BOLT - lower

2шт.

35

NSS

NOT SOLD SEPARAT

NUT - tie bolt

3шт.

36

NSS

NOT SOLD SEPARAT

PLUG - valve body

2шт.

37

NSS

NOT SOLD SEPARAT

SEAL - plug

2шт.

38

NSS

NOT SOLD SEPARAT

SECTION - valve body

2шт.

Выбрано товаров: 43
