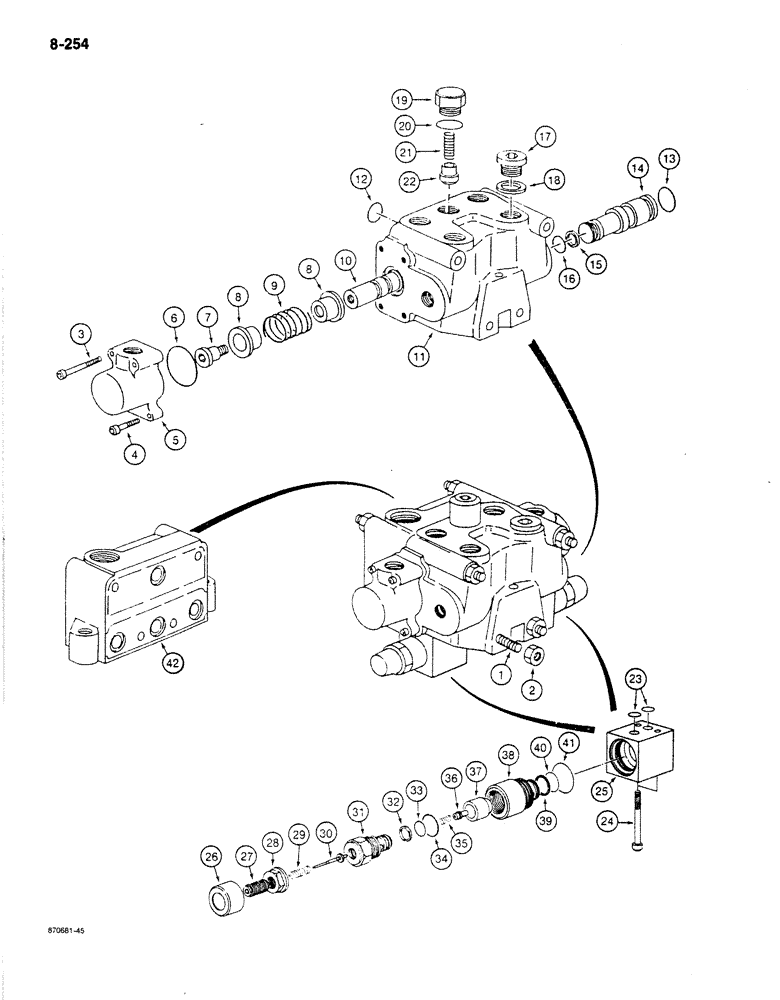

Запчасти Case 170B (8-254) - CONTROL VALVE FOR OPTIONS, P.I.N. 74425 THROUGH 74456 (08) - HYDRAULICS

1

P2527712

TRUSS ROD

STUD - section retaining

4шт.

2

P3533052

SCREW

NUT - hex

8шт.

P2243690

DISTRIBUTOR

SECTION ASSEMBLY - inlet, Includes: Refs. 3-22

1шт.

3

P34211

NUT

BOLT - cap mounting, upper

4шт.

4

P32911

SCREW

BOLT - cap mounting, lower

4шт.

5

P2241022

CASE

CAP - spool

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cap

2шт.

Part of seal kit P/N P5449657

1шт.

7

P2033090

SCREW

BOLT - spool

2шт.

8

P8230112

CUPEL

SEAT - spring

4шт.

9

P38259

SPRING

- spool

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

11

NSS

NOT SOLD SEPARAT

SECTION - inlet

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - section

4шт.

Part of seal kit P/N P5449657

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - plug, large

1шт.

Part of seal kit P/N P5449657

1шт.

14

P2537402

BLANK-OFF PLUG

PLUG - section

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

Part of seal kit P/N P5449657

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small, Includes: Refs. 17, 18

1шт.

Part of seal kit P/N P5449657

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - plug

1шт.

19

P2537433

PLUG

- load check valve

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of seal kit P/N P5449657

1шт.

21

P38283

SPRING

- poppet

1шт.

22

P2643624

VALVE POPPET

POPPET - load check valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - circuit relief, 370 bar, Includes: Refs. 23-41

2шт.

23

P330406

O-RING

- circuit relief valve

2шт.

24

P1332912

SCREW

BOLT - circuit relief valve mounting

2шт.

25

P3940393

BODY

BLOCK - circuit relief valve

1шт.

P3143630

CARTRIDGE

- relief valve assembly, 370 bar, Includes: Refs. 26-41

2шт.

26

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

28

NSS

NOT SOLD SEPARAT

NUT - jam, adjusting screw

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

29

P38298

SPRING

- plunger

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - check

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

RING - backup, body

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

35

P1038221

SPRING

- poppet

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

39

NSS

NOT SOLD SEPARAT

RING - backup, housing

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - housing, small

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING - housing, large

1шт.

Part of circuit relief valve seal kit P/N P5449633

1шт.

42

P2243693

ELEMENT

SECTION - outlet

1шт.

P5449657

SEAL PACKAGE

KIT - seal, Includes: Ref. 6, 12, 13, 15, 16 and 20

1шт.

P5449633

SEAL PACKAGE

KIT - circuit relief valve seal, Includes: Ref. 28, 32, 33, 34, 39, 40 and 41

1шт.
