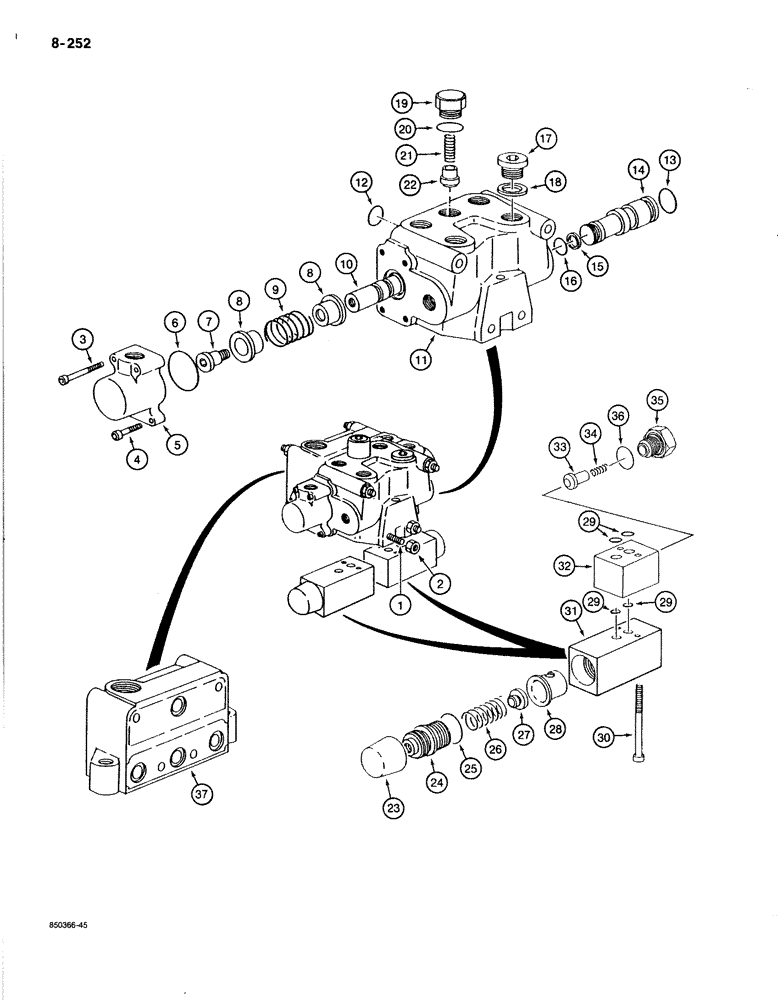

Запчасти Case 170B (8-252) - CONTROL VALVE FOR OPTIONS, P.I.N. 74341 THROUGH 74424 (08) - HYDRAULICS

1

P2527712

TRUSS ROD

STUD - section retaining

4шт.

2

P1634589

NUT

- hex

8шт.

P2243690

DISTRIBUTOR

SECTION ASSEMBLY - inlet, Includes: Refs. 3-22

1шт.

3

P432913

SCREW

BOLT - mounting, upper

4шт.

4

P32911

SCREW

BOLT - mounting, lower

4шт.

5

P2241022

CASE

CAP - spool

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cap

2шт.

Part of section seal repair kit P/N P3749648

1шт.

7

P2033090

SCREW

BOLT - spool

2шт.

8

P8230112

CUPEL

SEAT - spring

4шт.

9

P38259

SPRING

- spool

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control valave

1шт.

11

NSS

NOT SOLD SEPARAT

SECTION - inlet

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - section

4шт.

Part of section seal repair kit P/N P3749648

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - plug, large

1шт.

Part of section seal repair kit P/N P3749648

1шт.

14

P2537402

BLANK-OFF PLUG

PLUG - section

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

Part of section seal repair kit P/N P3749648

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of section seal repair kit P/N P3749648

1шт.

P2537410

PLUG

ASSEMBLY - section, Includes: Refs. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - plug

1шт.

19

P2537433

PLUG

- load check valve

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of section seal repair kit P/N P3749648

1шт.

21

P38283

SPRING

- poppet

1шт.

22

P2643624

VALVE POPPET

POPPET - load check valve

1шт.

P2643606

BOX

VALVE ASSEMBLY - circuit relief, 370 bar, Includes: Refs. 23-36

2шт.

23

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - adjusting screw

1шт.

Part of circuit relief valve seal kit P/N P3749656

1шт.

26

P38278

SPRING

- circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

4шт.

28

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - circuit relief valve

4шт.

Part of circuit relief valve seal kit P/N P3749656

1шт.

30

P1532910

SCREW

BOLT - circuit relief valve mounting

2шт.

31

NSS

NOT SOLD SEPARAT

BLOCK - circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK - circuit relief valve, upper

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET - check

1шт.

34

P38277

SPRING

- poppet

1шт.

35

P2537443

PLUG

- check valve

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of circuit relief valve seal kit P/N P3749656

1шт.

37

P2243693

ELEMENT

SECTION - outlet

1шт.

P3749648

KIT

- section seal repair, Includes: Ref. 6, 12, 13, 15, 16 and 20

1шт.

P3749656

SEAL PACKAGE

KIT - circuit relief valve seal repair, Includes: Ref. 25, 29 and 36

1шт.
