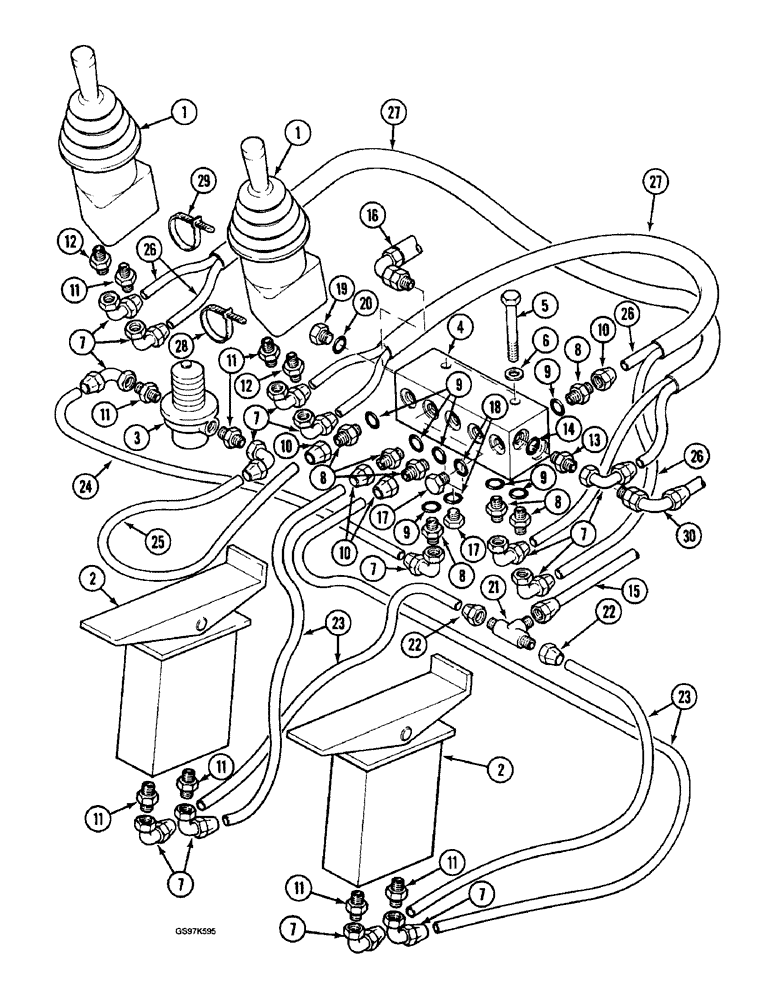

Запчасти Case 220B (8-068) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD TO HAND & FOOT CONTROL VALVES, P.I.N. 74510 - 74569 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list figure 8-138 or 8-140

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list figure 8-144 or 8-146

2шт.

3

REF

INSTRUCTION

PUMP - foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Manifold mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - bolt

2шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P3037546

UNION

ADAPTER - straight

7шт.

9

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

7шт.

10

B506378

END FITTING

ADAPTER - straight, control circuit hoses (Replaces adapter P4037535)

4шт.

11

P4037504

UNION

ADAPTER ASSEMBLY - straight

8шт.

P7046042

SEAL

- adapter

1шт.

12

P4037505

UNION

ADAPTER ASSEMBLY - straight

2шт.

P7046042

SEAL

- adapter

1шт.

13

P2337591

UNION

ADAPTER - straight

1шт.

14

P1230443

O-RING

- adapter

1шт.

15

REF

INSTRUCTION

HOSE - control circuit, pressure, see figure 8-48 for pilot control circuit

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, return, see figure 8-20 for leak return circuit

1шт.

17

P1737451

PLUG

- manifold ports

4шт.

18

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

4шт.

19

P1737445

PLUG

- manifold port, end (Replaces plug P1737443)

1шт.

20

P1230443

O-RING

- plug

1шт.

21

P37236

TEE

- control circuit lines

1шт.

22

B506378

END FITTING

ADAPTER - straight, control circuit hoses (Replaces adapter P4037535)

2шт.

23

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

4шт.

24

REF

INSTRUCTION

HOSE - control circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

1шт.

25

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

26

REF

INSTRUCTION

HOSE - control circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

4шт.

27

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

28

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

29

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.

30

REF

INSTRUCTION

HOSE - control circuit, pressure, see figure 8-48 for pilot control circuit

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
