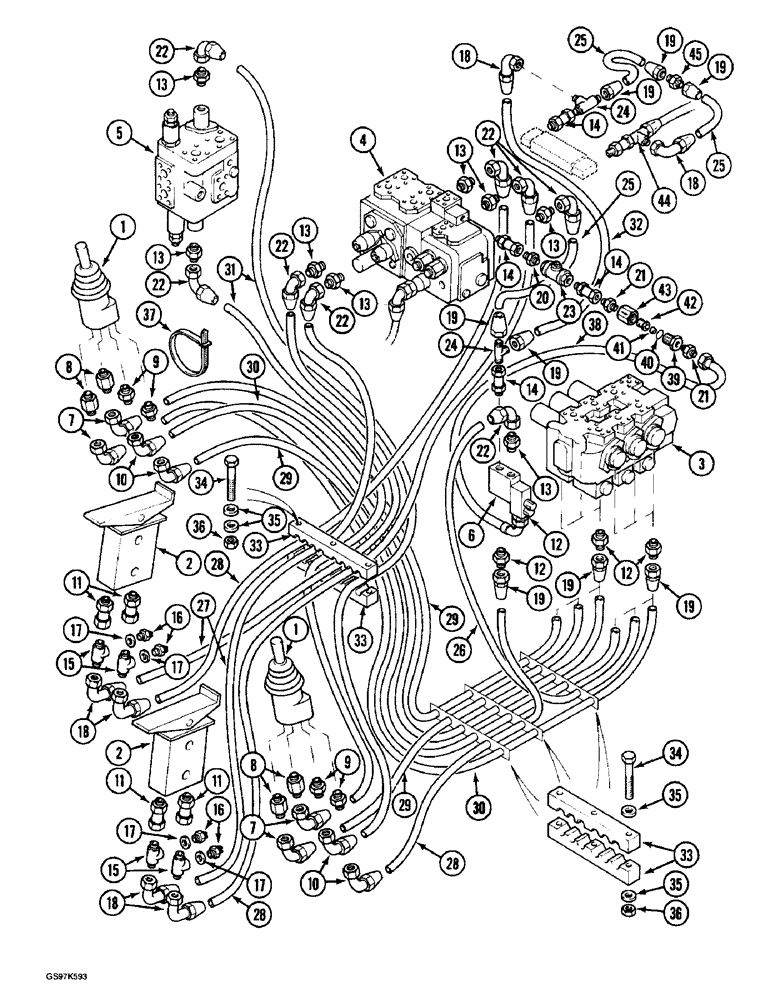

Запчасти Case 220B (8-062) - HYDRAULIC CIRCUIT FOR PILOT CONTROL FROM VALVES, P.I.N. 03209 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list figure 8-138 or 8-140

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list figure 8-144 or 8-146

2шт.

3

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list figure 8-122

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - parallel and drive control, parts list figure 8-130 or 8-134

1шт.

5

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list figure 8-136

1шт.

6

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list figure 8-154

1шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

8

P4037572

UNION

ADAPTER ASSEMBLY - straight, long

4шт.

P7046042

SEAL

- adapter

1шт.

9

P4037571

UNION

ADAPTER ASSEMBLY - straight, short

4шт.

P7046042

SEAL

- adapter

1шт.

10

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

11

P4037576

FITTING

ADAPTER ASSEMBLY - tube, tee to foot control valve

4шт.

P7046042

SEAL

- adapter

1шт.

12

P4037573

UNION

ADAPTER ASSEMBLY - straight

8шт.

P945295

SEAL

- adapter

1шт.

13

P4037573

UNION

ADAPTER ASSEMBLY - straight

8шт.

P945295

SEAL

- adapter

1шт.

14

P4037577

FITTING

TUBE ASSEMBLY - adapter

3шт.

P945295

SEAL

- adapter

1шт.

15

P1237223

TEE

- sender to control circuit

4шт.

16

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-42 for electrical connections

4шт.

17

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

4шт.

18

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

6шт.

19

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

11шт.

20

P4037573

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945295

SEAL

- adapter

1шт.

21

P4037584

UNION

ADAPTER ASSEMBLY - straight

2шт.

P7046042

SEAL

- adapter

1шт.

22

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

9шт.

23

P837850

COCK

VALVE - shutoff

1шт.

24

P937275

TEE

- control circuit hose to adapter tube

1шт.

25

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

3шт.

26

REF

INSTRUCTION

HOSE - control circuit, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

27

REF

INSTRUCTION

HOSE - control circuit, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

28

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-7/16 inch) long, cut from bulk hose P1103640 below

3шт.

29

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

3шт.

30

REF

INSTRUCTION

HOSE - control circuit, 3600 mm (141-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

31

REF

INSTRUCTION

HOSE - control circuit, 4000 mm (157-1/2 inch) long, cut from bulk hose P1103640 below

2шт.

32

REF

INSTRUCTION

HOSE - control circuit, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

33

P4620398

SHIN

CLAMP - hose, half (Replaces clamp P1820302)

8шт.

34

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- clamp, hex, full threads, 10 - 1.5 x 70 mm (Replaces bolt P33830)

12шт.

35

P3528795

WASHER

SPACER - bolt

24шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34598) M10 x 1.5, Cl 8

12шт.

37

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.

38

P6631919

HOSE

- from parallel drive valve to parallel supply valve

1шт.

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel supply valve, Includes: Ref. 39 - 43

1шт.

39

NSS

NOT SOLD SEPARAT

CAP - filter assembly, order filter assembly P7646290

1шт.

40

P1145268

SEAL

O-RING - cap

1шт.

41

NSS

NOT SOLD SEPARAT

CONE - filter assembly, order filter assembly P7646290

1шт.

42

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - filter assembly, order filter assembly P7646290

1шт.

44

REF

INSTRUCTION

HOSE - control circuit, see figure 8-44 Ref. 24, for continuation

1шт.

45

P4237512

UNION

ADAPTER - straight

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
