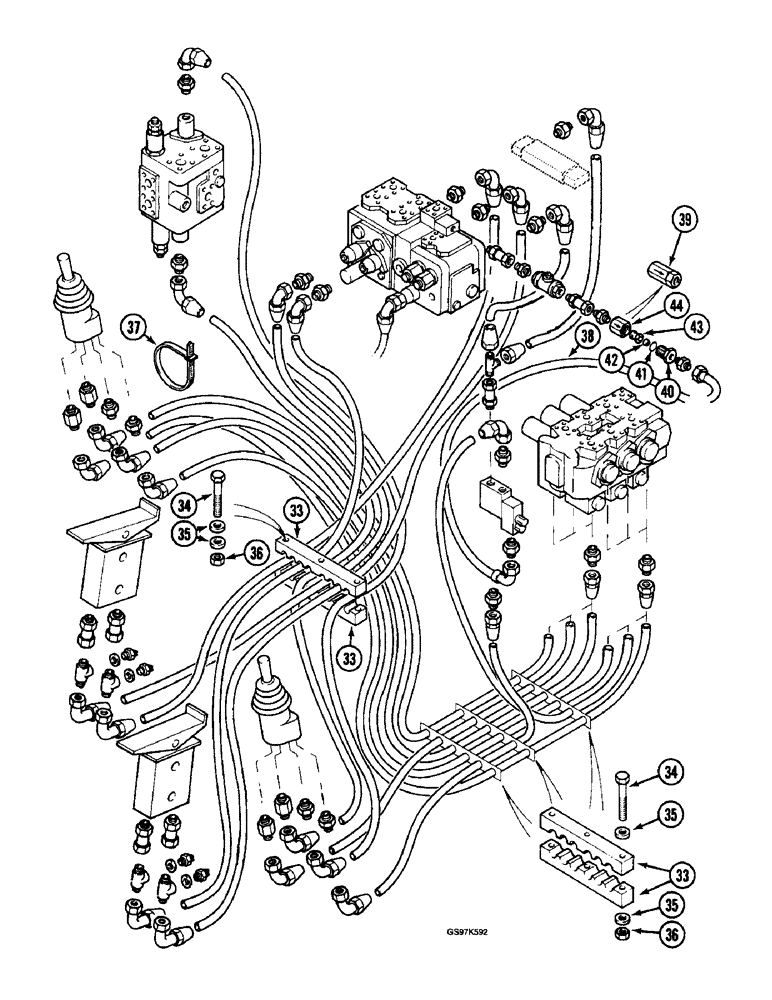

Запчасти Case 220B (8-060) - HYDRAULIC CIRCUIT FOR PILOT CONTROL SUPPLY, P.I.N. 74570 THRU 74597, P.I.N. 03201 THRU 03208 (CONT) (08) - HYDRAULICS

27

REF

INSTRUCTION

HOSE - control circuit, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below, continued

2шт.

28

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-7/16 inch) long, cut from bulk hose P1103640 below

3шт.

29

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

3шт.

30

REF

INSTRUCTION

HOSE - control circuit, 3600 mm (141-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

31

REF

INSTRUCTION

HOSE - control circuit, 4000 mm (157-1/2 inch) long, cut from bulk hose P1103640 below

2шт.

32

REF

INSTRUCTION

HOSE - control circuit, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

33

P4620398

SHIN

CLAMP - hose, half (Replaces clamp P1820302)

8шт.

34

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- clamp, hex, 10 - 1.5 x 70 mm (Replaces bolt P33830)

12шт.

35

P3528795

WASHER

SPACER - bolt

24шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34598) M10 x 1.5, Cl 8

12шт.

37

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.

38

P6631919

HOSE

- from parallel drive valve to parallel supply valve

1шт.

39

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel supply valve, Includes: Ref. 40 - 44

1шт.

40

NSS

NOT SOLD SEPARAT

CAP - filter assembly, order filter assembly P7646290

1шт.

41

P1145268

SEAL

O-RING - cap

1шт.

42

NSS

NOT SOLD SEPARAT

CONE - filter assembly, order filter assembly P7646290

1шт.

43

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - filter assembly, order filter assembly P7646290

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
