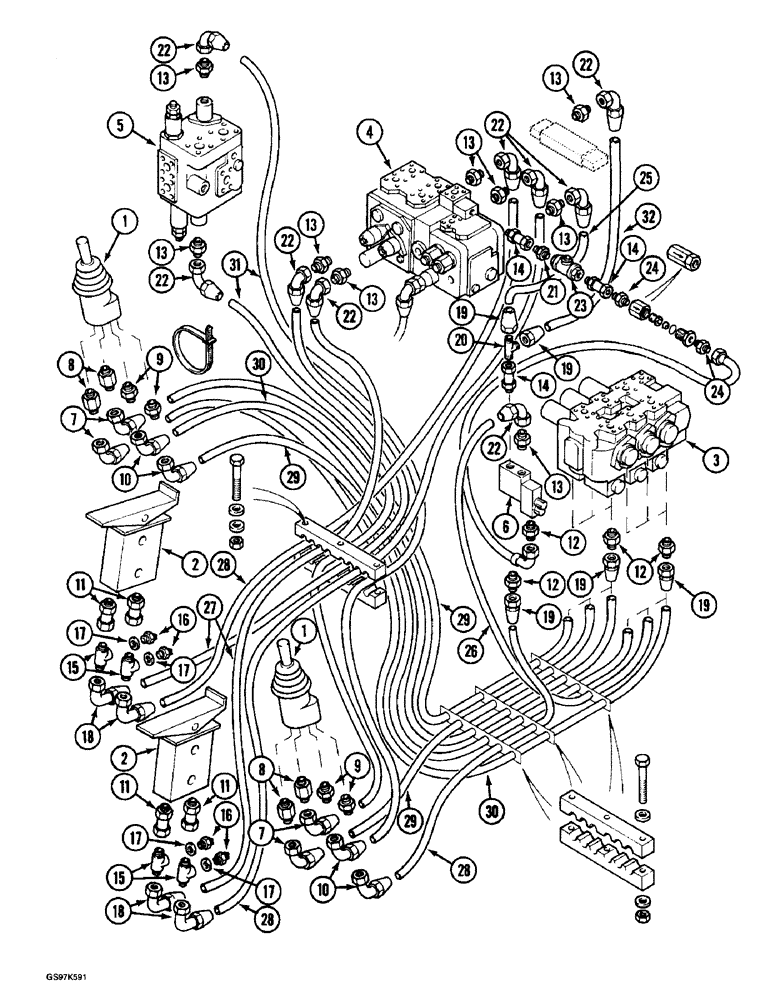

Запчасти Case 220B (8-058) - HYDRAULIC CIRCUIT FOR PILOT CONTROL SUPPLY, P.I.N. 74570 THRU 74597, P.I.N. 03201 THRU 03208 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list Figure 8-138 or 8-140

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list Figure 8-142, 8-144 or 8-146

2шт.

3

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figure 8-122

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - parallel and drive control, parts list figure 8-130 or 8-134

1шт.

5

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list Figure 8-136

1шт.

6

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-154

1шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

8

P4037572

UNION

ADAPTER ASSEMBLY - straight, long

4шт.

P7046042

SEAL

- adapter

1шт.

9

P4037571

UNION

ADAPTER ASSEMBLY - straight, short

4шт.

P7046042

SEAL

- adapter

1шт.

10

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

11

P4037576

FITTING

ADAPTER ASSEMBLY - tube, tee to foot control valve

4шт.

P7046042

SEAL

- adapter

1шт.

12

P4037573

UNION

ADAPTER ASSEMBLY - straight

8шт.

P945295

SEAL

- adapter

1шт.

13

P4037573

UNION

ADAPTER ASSEMBLY - straight

9шт.

P945295

SEAL

- adapter

1шт.

14

P4037577

FITTING

TUBE ASSEMBLY - adapter

3шт.

P945295

SEAL

- adapter

1шт.

15

P1237223

TEE

- sender to control circuit

4шт.

16

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-42 for electrical connections

4шт.

17

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

4шт.

18

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

19

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

9шт.

20

P937275

TEE

- control circuit hose to adapter tube

1шт.

21

P4037573

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945295

SEAL

- adapter

1шт.

22

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

9шт.

23

P837850

COCK

VALVE - shutoff

1шт.

24

P4037584

UNION

ADAPTER ASSEMBLY - straight

2шт.

P7046042

SEAL

- adapter

1шт.

25

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

26

REF

INSTRUCTION

HOSE - control circuit, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
