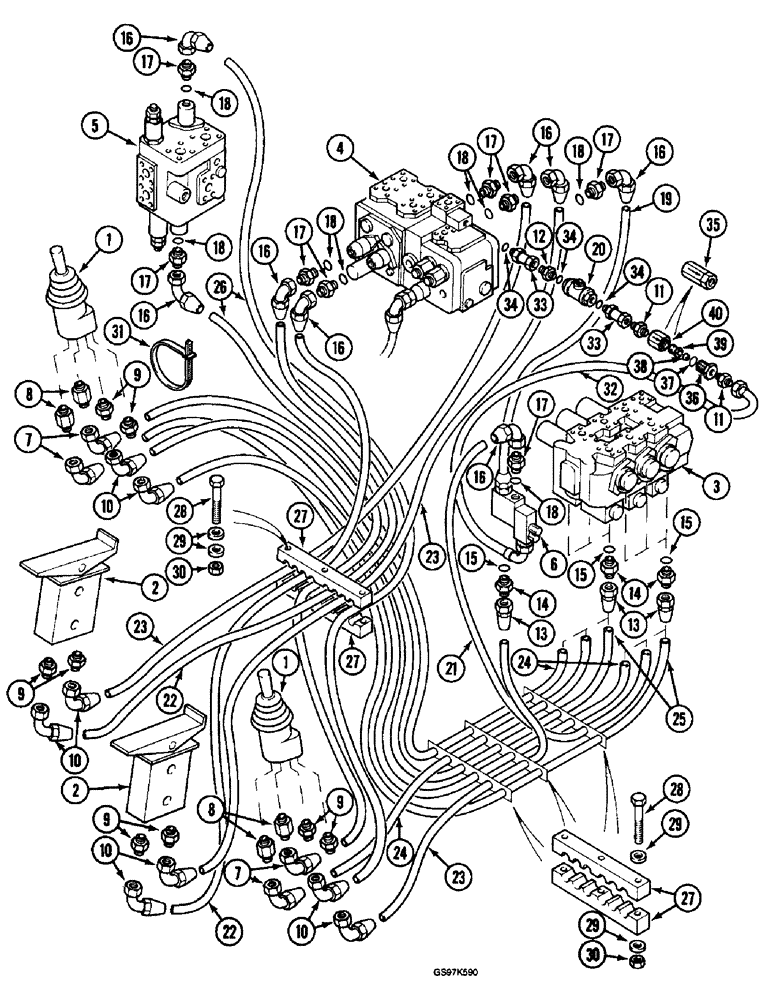

Запчасти Case 220B (8-056) - HYDRAULIC CIRCUIT FOR PILOT CONTROL SUPPLY, P.I.N. 74520 THROUGH 74569 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list Figure 8-138 or 8-140

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list Figure 8-142, 8-144 or 8-146

2шт.

3

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figure 8-122

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - parallel and drive control, parts list figure 8-130 or 8-134

1шт.

5

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list Figure 8-136

1шт.

6

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-154

1шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

8

P4037505

UNION

ADAPTER ASSEMBLY - straight, long

4шт.

P7046042

SEAL

- adapter

1шт.

9

P4037504

UNION

ADAPTER ASSEMBLY - straight, short

8шт.

P7046042

SEAL

- adapter

1шт.

10

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

8шт.

11

P3237574

UNION

ADAPTER ASSEMBLY - straight

2шт.

P7046042

SEAL

- adapter

1шт.

12

P3037546

UNION

ADAPTER - straight

1шт.

13

B506378

END FITTING

ADAPTER - straight, control circuit hoses (Replaces adapter P4037535)

8шт.

14

P3037546

UNION

ADAPTER - straight

9шт.

15

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

9шт.

16

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

8шт.

17

P3037546

UNION

ADAPTER - straight

8шт.

18

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

8шт.

19

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

20

P837850

COCK

VALVE - shutoff

1шт.

21

REF

INSTRUCTION

HOSE - control circuit, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

22

REF

INSTRUCTION

HOSE - control circuit, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

23

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-7/16 inch) long, cut from bulk hose P1103640 below

3шт.

24

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

3шт.

25

REF

INSTRUCTION

HOSE - control circuit, 3600 mm (141-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

26

REF

INSTRUCTION

HOSE - control circuit, 5000 mm (196-7/8 inch) long, cut from bulk hose P1103640 below

2шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.

27

P4620398

SHIN

CLAMP - hose, half (Replaces clamp P1820302)

8шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- clamp, hex, 10 - 1.5 x 70 mm (Replaces bolt P33830)

12шт.

29

P3528795

WASHER

SPACER - bolt

24шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34598) M10 x 1.5, Cl 8

12шт.

31

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.

32

P6631920

HOSE

- from parallel drive valve to parallel supply valve

1шт.

33

P3037561

FITTING

TUBE - adapter

2шт.

34

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

3шт.

35

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel supply valve, Includes: Ref. 36 - 40

1шт.

36

NSS

NOT SOLD SEPARAT

CAP - filter assembly, order filter assembly P7646290

1шт.

37

P1145268

SEAL

O-RING - cap

1шт.

38

NSS

NOT SOLD SEPARAT

CONE - filter assembly, order filter assembly P7646290

1шт.

39

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - filter assembly, order filter assembly P7646290

1шт.
