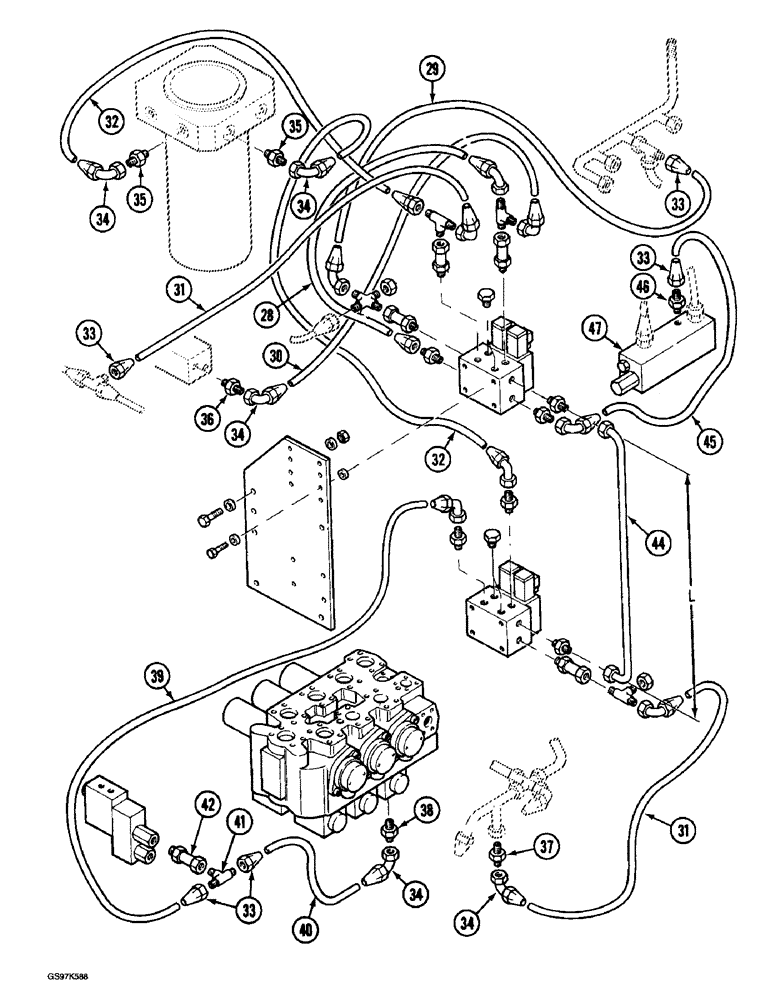

Запчасти Case 220B (8-052) - HYDRAULIC CIRCUIT / PILOT CONTROL SUPPLY, PIN 74570 - 74597 / 03201 & AFT, SUPPLY LINES & CONNECTION (08) - HYDRAULICS

28

REF

INSTRUCTION

HOSE - 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below, continued

1шт.

29

REF

INSTRUCTION

HOSE - 1300 mm (51-3/16 inch) long, cut from bulk hose P1103640 below

1шт.

30

REF

INSTRUCTION

HOSE - 1600 mm (63 inch) long, cut from bulk hose P1103640 below

1шт.

31

REF

INSTRUCTION

HOSE - 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

32

REF

INSTRUCTION

HOSE - 2500 mm (98-7/16 inch) long, cut from bulk hose P1103640 below

2шт.

33

P4037588

END FITTING

ADAPTER - straight

5шт.

34

P4037590

END FITTING

ADAPTER - 90 degree

5шт.

35

P4037575

UNION

ADAPTER ASSEMBLY - straight

2шт.

P5746063

SEAL

- adapter

1шт.

36

P4037574

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

37

P3237535

UNION

ADAPTER - straight

1шт.

38

P4037573

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945295

SEAL

- adapter

1шт.

39

REF

INSTRUCTION

HOSE - 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

40

REF

INSTRUCTION

HOSE - 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

41

P937275

TEE

- male

1шт.

42

P4037577

FITTING

TUBE ASSEMBLY - adapter

1шт.

P945295

SEAL

- adapter

1шт.

43

P8347676

PIPE

TUBE - between solenoid valves, L dimension is 190 mm (7-1/2 inch), no longer available, order tube P8347652 below

1шт.

44

P8347652

PIPE

TUBE - between solenoid valves, L dimension is 210 mm (8-1/4 inch), if used

1шт.

45

REF

INSTRUCTION

HOSE - 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

46

P4037571

UNION

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

47

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, pilot circuit, parts list Figure 8-42

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
