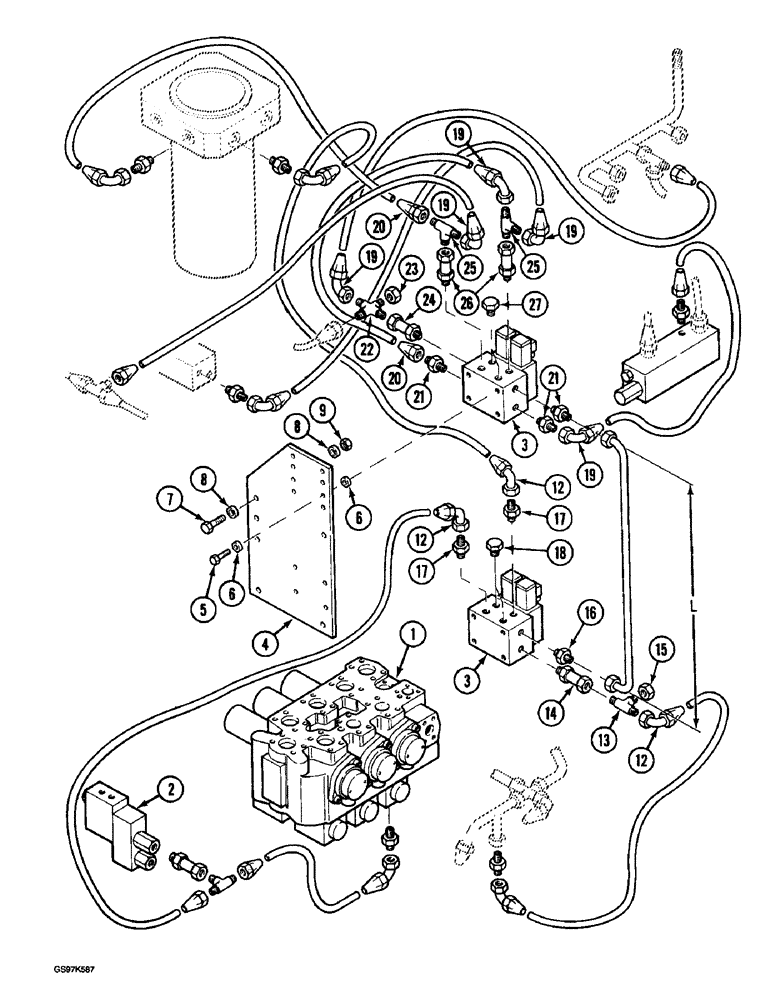

Запчасти Case 220B (8-050) - HYDRAULIC CIRCT / PILOT CONTROL SUPPLY, P.I.N. 74570-74597/03201 & AFTER (08) - HYDRAULICS

1

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figure 8-122

1шт.

2

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-154

1шт.

3

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-148

2шт.

4

P4623464

LARGE PLATE

PLATE - valve mounting

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- valve mounting, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

6

P3528794

WASHER

SPACER - bolt

16шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- plate mounting, hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

4шт.

8

P3528795

WASHER

SPACER - bolt

8шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Mounting bolt (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

10

REF

INSTRUCTION

MANIFOLD - control valve, hand and foot, see figure 8-70

1шт.

11

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - parts list Figure 8-186

1шт.

12

P4037590

END FITTING

ADAPTER - 90 degree, connections to lower solenoid valve

3шт.

13

P937275

TEE

- male, connections to lower solenoid valve

1шт.

14

P4037578

FITTING

ADAPTER ASSSEMBLY - straight, connections to lower solenoid valve

1шт.

P945293

WASHER, SEALING

SEAL - adapter, connections to lower solenoid valve

1шт.

15

P2537407

BLANK-OFF PLUG

CAP - tee, connections to lower solenoid valve

1шт.

16

P4037574

UNION

ADAPTER ASSEMBLY - straight, connections to lower solenoid valve

1шт.

P945293

WASHER, SEALING

SEAL - adapter, connections to lower solenoid valve

1шт.

17

P4037573

UNION

ADAPTER ASSEMBLY - straight, connections to lower solenoid valve

1шт.

P945295

SEAL

- adapter, connections to lower solenoid valve

1шт.

18

P1437456

PLUG

ASSEMBLY - valve port, connections to lower solenoid valve

2шт.

P945295

SEAL

- plug

1шт.

19

P4037590

END FITTING

ADAPTER - 90 degree, connections to upper solenoid valve

5шт.

20

P4037588

END FITTING

ADAPTER - straight, connections to upper solenoid valve

2шт.

21

P4037574

UNION

ADAPTER ASSEMBLY - straight, connections to upper solenoid valve

3шт.

P945293

WASHER, SEALING

SEAL - adapter, connections to upper solenoid valve

1шт.

22

P1237220

CROSS

- hydraulic, connections to upper solenoid valve

1шт.

23

P2537407

BLANK-OFF PLUG

CAP - fitting, connections to upper solenoid valve

1шт.

24

P4037578

FITTING

ADAPTER ASSEMBLY - straight, connections to upper solenoid valve

1шт.

P945293

WASHER, SEALING

SEAL - adapter, connections to upper solenoid valve

1шт.

25

P937275

TEE

- male, connections to upper solenoid valve

2шт.

26

P4037577

FITTING

ADAPTER ASSEMBLY - straight, connections to upper solenoid valve

2шт.

P945295

SEAL

- adapter, connections to upper solenoid valve

1шт.

27

P1437456

PLUG

ASSEMBLY - valve port, connections to upper solenoid valve

2шт.

P945295

SEAL

- plug Continued on next figure

1шт.
