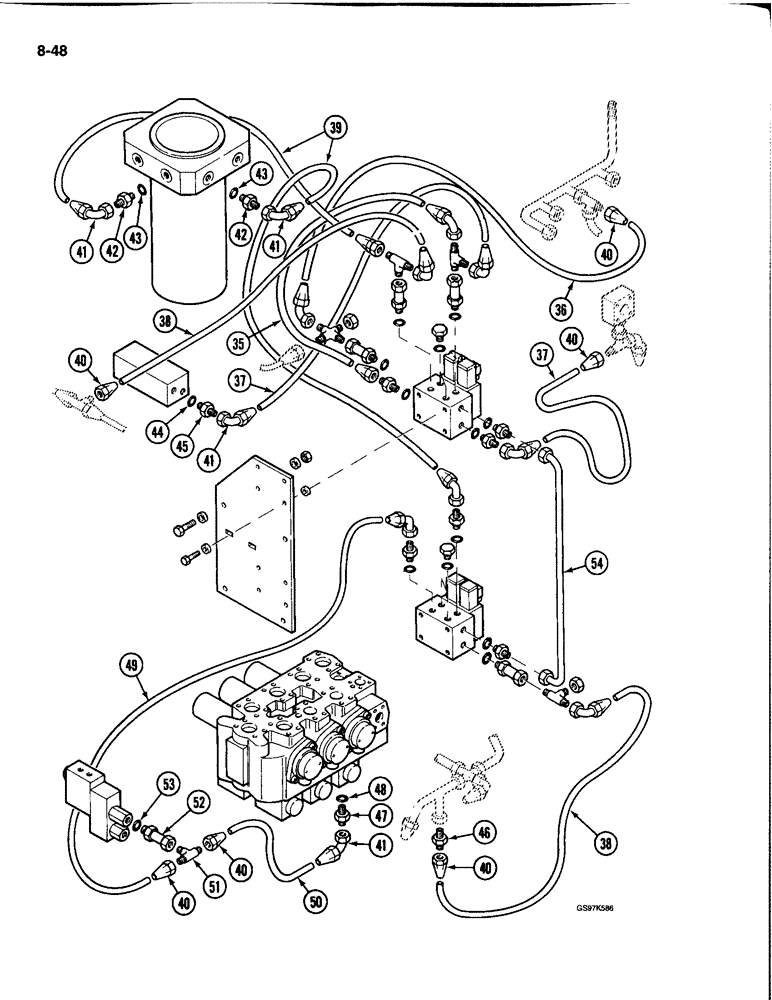

Запчасти Case 220B (8-048) - HYDRAULIC CIRCUIT FOR PILOT CONTROL SUPPLY, P.I.N. 74441 - 745699, SUPPLY LINES AND CONNECTIONS (08) - HYDRAULICS

35

REF

INSTRUCTION

HOSE - 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below, continued

1шт.

36

REF

INSTRUCTION

HOSE - 1300 mm (51-3/16 inch) long, cut from bulk hose P1103640 below

1шт.

37

REF

INSTRUCTION

HOSE - 1600 mm (63 inch) long, cut from bulk hose P1103640 below

2шт.

38

REF

INSTRUCTION

HOSE - 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

39

REF

INSTRUCTION

HOSE - 2500 mm (98-7/16 inch) long, cut from bulk hose P1103640 below

2шт.

40

B506378

END FITTING

ADAPTER - straight (Replaces adapter P4037535)

6шт.

41

P4037537

END FITTING

ADAPTER - 90 degree

4шт.

42

P2337589

UNION

ADAPTER - straight

2шт.

43

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Adapter (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

44

P1230443

O-RING

- adapter

1шт.

45

P2337591

UNION

ADAPTER - straight

1шт.

45

P1230443

O-RING

- adapter

1шт.

46

P37553

UNION

ADAPTER - straight

1шт.

47

P3037546

UNION

ADAPTER - straight

1шт.

48

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

49

REF

INSTRUCTION

HOSE - 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

50

REF

INSTRUCTION

HOSE - 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

51

P37236

TEE

- male

1шт.

52

P3037561

FITTING

ADAPTER - straight

1шт.

53

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

54

P8047602

PIPE

TUBE - between solenoid valves

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
