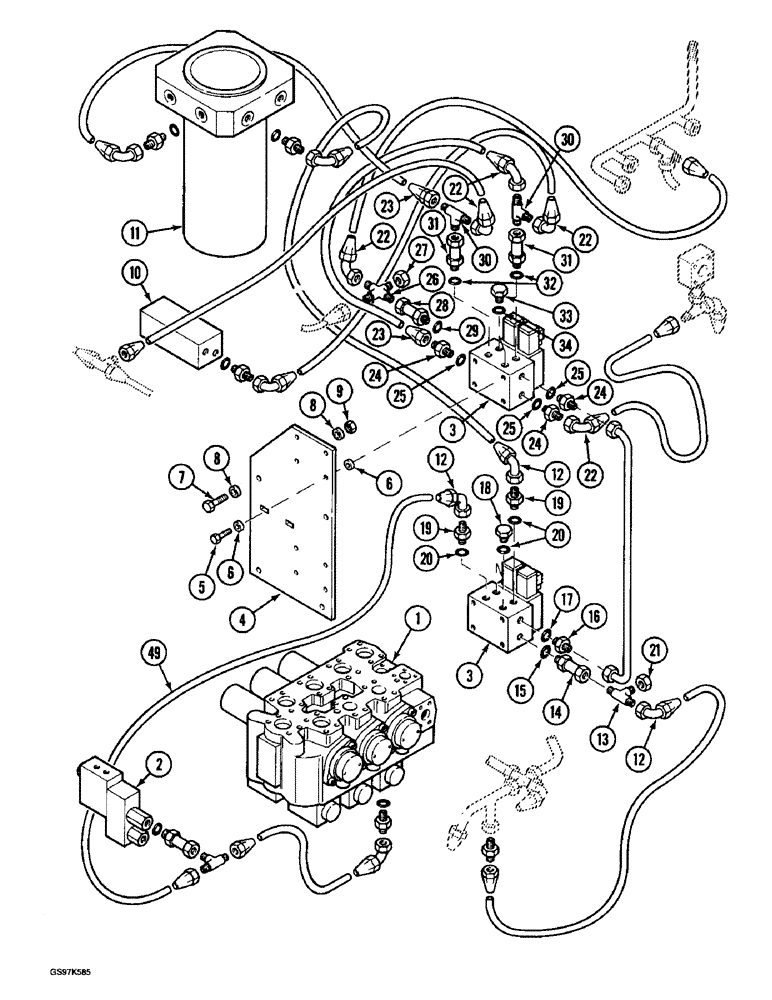

Запчасти Case 220B (8-046) - HYD CIRCT FOR PILOT CONTL SPLY, PIN 74441-74569 (08) - HYDRAULICS

1

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figure 8-122

1шт.

2

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-154

1шт.

3

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-148

2шт.

4

P4623464

LARGE PLATE

PLATE - valve mounting

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- valve mounting, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

6

P3528794

WASHER

SPACER - bolt

16шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- plate mounting, hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

4шт.

8

P3528795

WASHER

SPACER - bolt

8шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Mounting bolt (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

10

P2643328

BLOCK ASSY.

MANIFOLD - control valve, hand and foot, parts list Figure 8-138 or 8-140

1шт.

11

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - parts list Figure 8-186

1шт.

12

P4037537

END FITTING

ADAPTER - 90 degree, connections to lower solenoid valve

3шт.

13

P37236

TEE

- male, connections to lower solenoid valve

1шт.

14

P3037502

FITTING

ADAPTER - straight, connections to lower solenoid valve

1шт.

15

P1230443

O-RING

- adapter, connections to lower solenoid valve

1шт.

16

P2337591

UNION

ADAPTER - straight, connections to lower solenoid valve

1шт.

17

P1230443

O-RING

- adapter, connections to lower solenoid valve

1шт.

18

P1737451

PLUG

- valve port, connections to lower solenoid valve

2шт.

19

P3037546

UNION

ADAPTER - straight, connections to lower solenoid valve

2шт.

20

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215), Connections to lower solenoid valve -116, 90 Duro, .737" ID x .103" Thk

4шт.

21

P237406

BLANK-OFF PLUG

CAP - tee, connections to lower solenoid valve

1шт.

22

P4037537

END FITTING

ADAPTER - 90 degree, connections to upper solenoid valve

5шт.

23

B506378

END FITTING

ADAPTER - straight (Replaces adapter P4037535), connections to upper solenoid valve

2шт.

24

P2337591

UNION

ADAPTER - straight, connections to upper solenoid valve

3шт.

25

P1230443

O-RING

- adapter, connections to upper solenoid valve

3шт.

26

P937219

CROSS

- hydraulic, connections to upper solenoid valve

1шт.

27

P237406

BLANK-OFF PLUG

CAP - fitting, connections to upper solenoid valve

1шт.

28

P3037502

FITTING

ADAPTER - straight, connections to upper solenoid valve

1шт.

29

P1230443

O-RING

- adapter, connections to upper solenoid valve

1шт.

30

P37236

TEE

- male, connections to upper solenoid valve

2шт.

31

P3037561

FITTING

ADAPTER - straight, connections to upper solenoid valve

2шт.

32

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215), Connections to upper solenoid valve -116, 90 Duro, .737" ID x .103" Thk

2шт.

33

P1737451

PLUG

- valve port, connections to upper solenoid valve

2шт.

34

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) Continued on next figure, Connections to upper solenoid valve -116, 90 Duro, .737" ID x .103" Thk

2шт.
