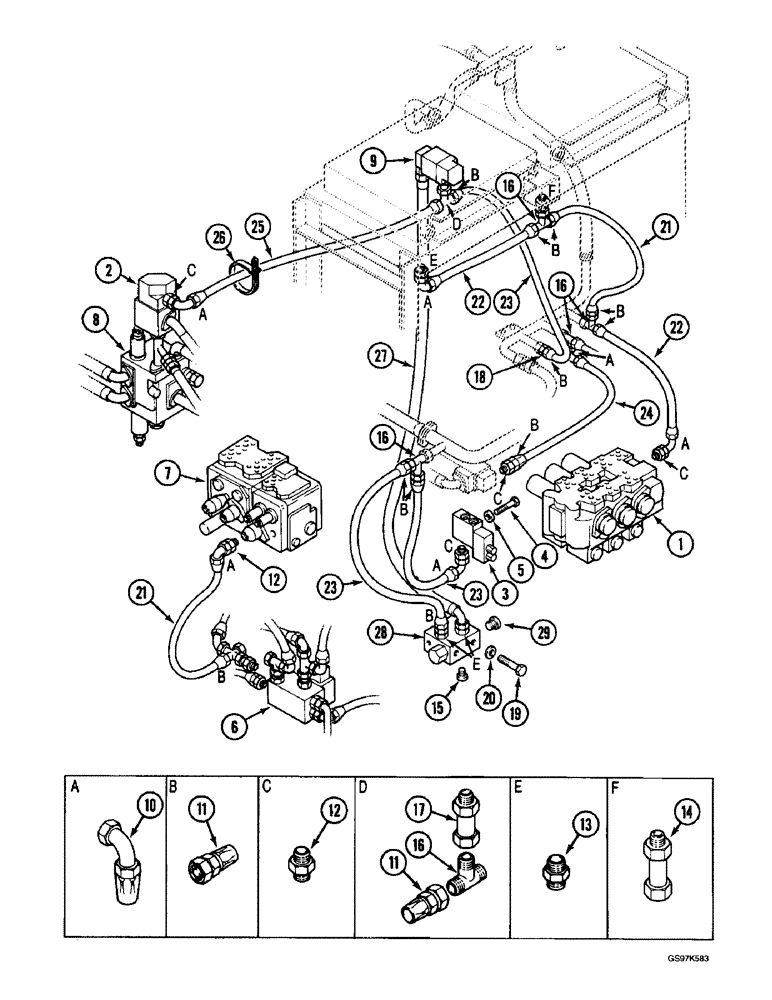

Запчасти Case 220B (8-042) - HYDRAULIC CIRCUIT DRAIN RETURN LINES, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 THROUGH 03208 (08) - HYDRAULICS

1

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figures 8-122

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, 13 bar, parts list Figure 8-164 or 8-166

1шт.

3

P3143306

BLOCK

VALVE ASSEMBLY - parallel supply control, parts list Figure 8-154

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

5

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

6

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-148, see Figure 8-46 for connecting lines\

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - parallel and drive control, parts list figure 8-130 or 8-134

1шт.

8

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - swing control, parts list Figure 8-136

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, 13 bar, parts list Figure 8-160 or 8-162

1шт.

10

P4037590

END FITTING

ADAPTER - 90 degree, hose ends

6шт.

11

P4037588

END FITTING

ADAPTER - straight, hose ends

12шт.

12

P4037573

UNION

ADAPTER ASSEMBLY - straight

4шт.

P945295

SEAL

- adapter

1шт.

13

P3237535

UNION

ADAPTER - straight, at tube

1шт.

14

P4037571

UNION

ADAPTER ASSEMBLY - straight

3шт.

P7046042

SEAL

- adapter

1шт.

15

P4037576

FITTING

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

16

P937275

TEE

- male

6шт.

17

P4037577

FITTING

ADAPTER ASSEMBLY - straight

2шт.

P945295

SEAL

- adapter

1шт.

18

P1437455

PLUG

ASSEMBLY - relief valve

1шт.

P7046042

SEAL

- plug

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

21

REF

INSTRUCTION

HOSE - return circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

2шт.

22

REF

INSTRUCTION

HOSE - return circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

2шт.

23

REF

INSTRUCTION

HOSE - return circuit, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

3шт.

24

REF

INSTRUCTION

HOSE - return circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P110364 below

1шт.

25

REF

INSTRUCTION

HOSE - return circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

1шт.

26

P51946

CLAMP

STRAP - tie, hoses

1шт.

27

P6631934

HOSE

- pressure regulating valve to relieve valve, 2000 mm (78-3/4 inch) long

1шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, pilot circuit, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly P1843398

1шт.

29

P2537448

PLUG

ASSEMBLY - valve

1шт.

P2230441

SEAL

O-RING - plug

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
