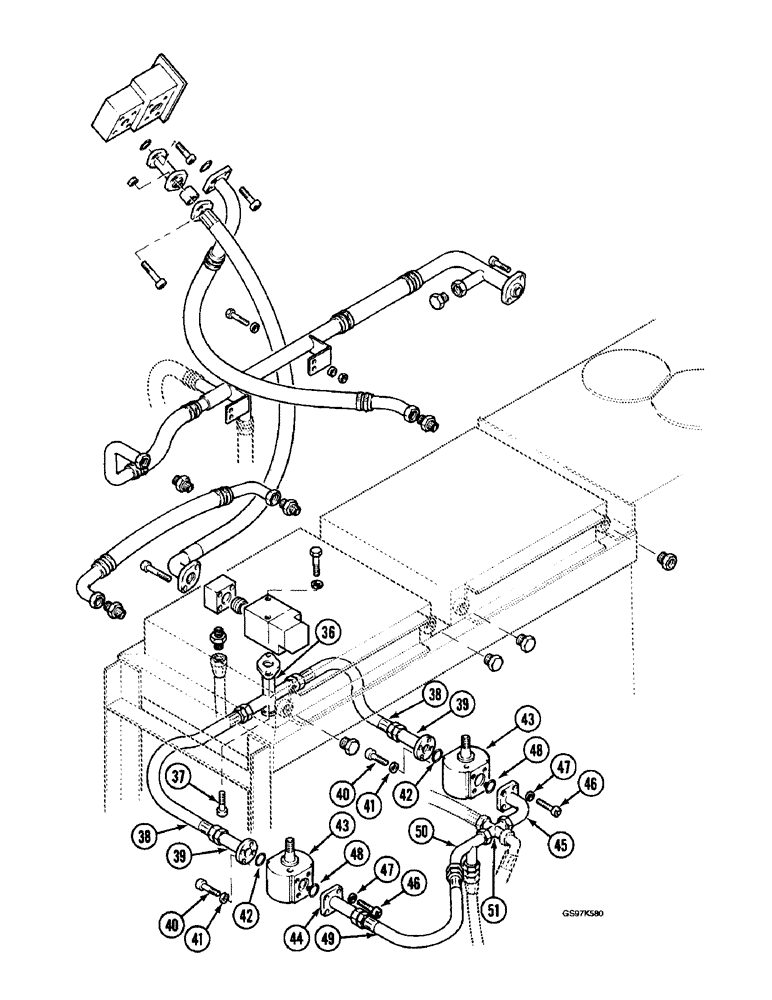

Запчасти Case 220B (8-036) - HYDRAULIC CIRCUIT TO COOLER, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (08) - HYDRAULICS

36

P2950105

MANIFOLD

TUBE - four way, continued

1шт.

37

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube mounting Hex Soc Hd, M10 x 35, 10.9

2шт.

38

P131921

HOSE

- to fan motors

2шт.

39

P2837643

PIPE

TUBE - to fan motors

2шт.

40

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Tube mounting (Replaces bolt P32912) Hex Soc Hd, M6 x 25, 8.8

8шт.

41

P3528799

WASHER

SPACER - mounting bolt

8шт.

42

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Tube (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

43

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, cooler fan, parts list Figure 8-182 or 8-184

2шт.

44

P1250153

PIPE

TUBE - from fan motor, straight

1шт.

45

P3247112

PIPE

TUBE - from fan motor, bent

1шт.

46

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Tube mounting (Replaces bolt P32912) Hex Soc Hd, M6 x 25, 8.8

8шт.

47

P3528799

WASHER

SPACER - mounting bolt

8шт.

48

P1230443

O-RING

- tube

2шт.

49

P1031969

HOSE

- fan motor circuit

1шт.

50

P3750182

MANIFOLD

TUBE - three way

1шт.

51

P37283

CROSS

- hydraulic

1шт.
