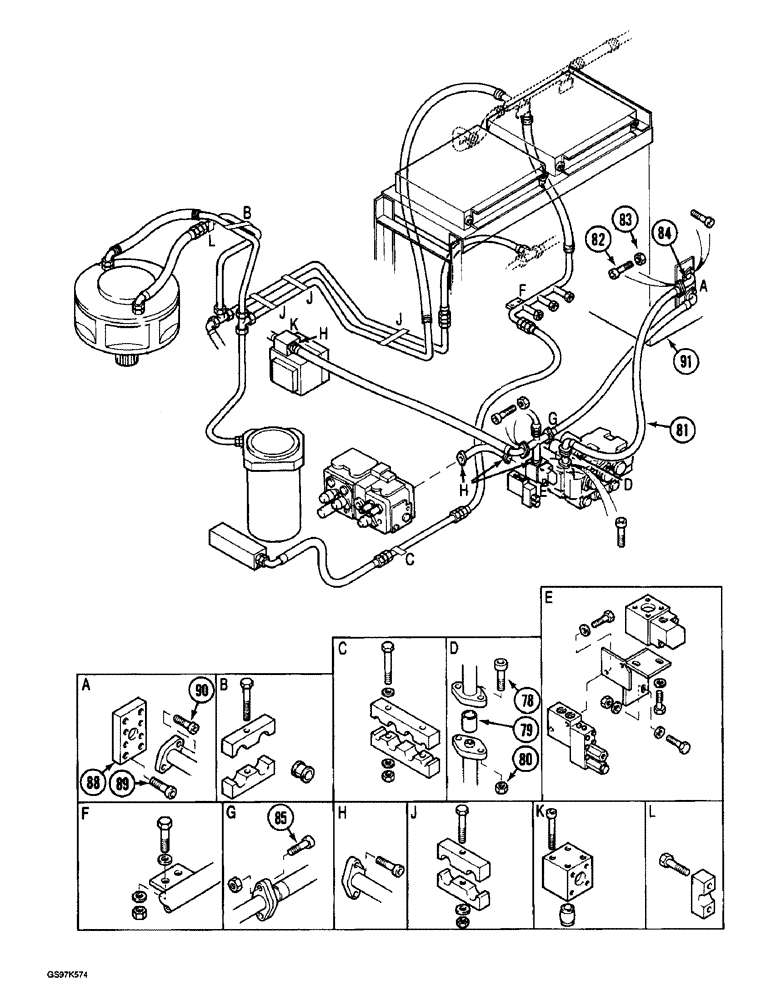

Запчасти Case 220B (8-024) - HYDRAULIC CIRCUIT, RETURN LINES FROM VALVES, P.I.N. 74441 THROUGH 74569 (CONTINUED) (08) - HYDRAULICS

78

P732993

SCREW

BOLT - flange, continued

2шт.

79

P1737776

JUNCTION

SPACER - flange

1шт.

80

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

81

P1331981

HOSE

- attachment control, Serial Range: valve-reservoir

1шт.

82

P832964

SCREW

BOLT - flange

2шт.

83

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

84

P1950109

MANIFOLD

TUBE -, Serial Range: hose-reservoir

1шт.

85

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

BOLT - flange

2шт.

86

829-1414

NUT,M14, Cl 10

- hex, 14 mm - 2.0, class 10 (Replaces nut P134107)

2шт.

87

P3231946

HOSE

-, Serial Range: tee-reservoir

1шт.

88

P637345

RESTRICTOR

ADAPTER - hose to reservoir, no longer available

1шт.

89

P1332910

SCREW

BOLT - adapter

4шт.

90

P532924

SCREW

BOLT - flange

2шт.

91

P840272

OIL RESERVOIR

RESERVOIR - hydraulic oil, see Figure 8-2 for breather and filters

1шт.
