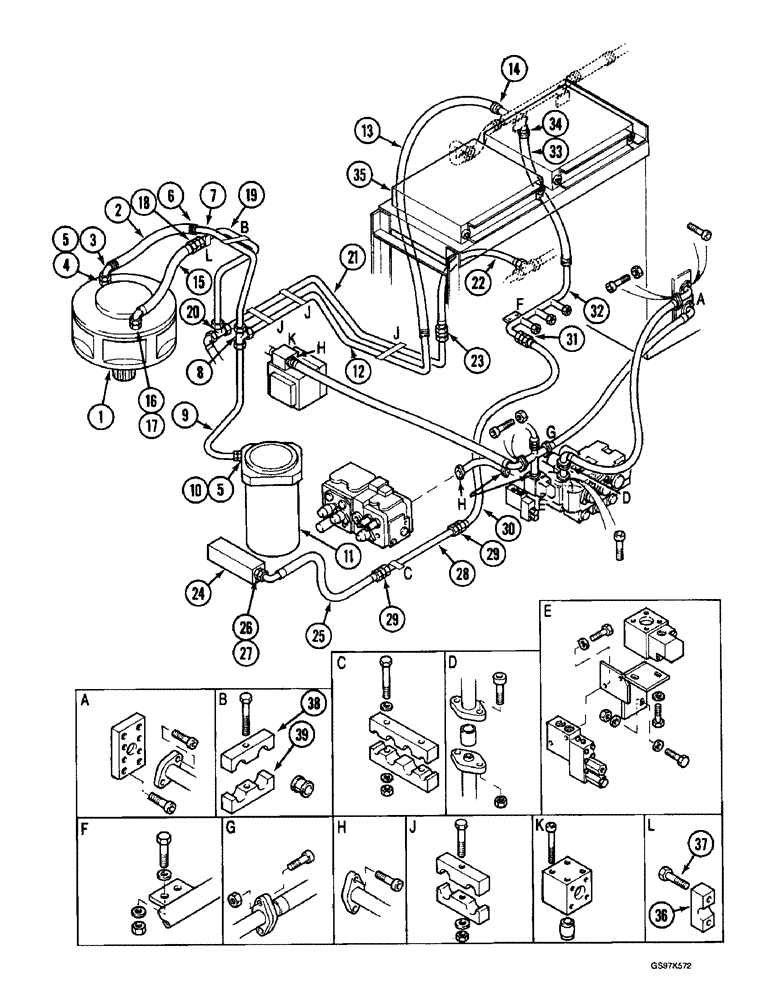

Запчасти Case 220B (8-020) - HYDRAULIC CIRCUIT, RETURN LINES FROM VALVES, P.I.N. 74441 THROUGH 74569 (08) - HYDRAULICS

1

P1943722R

REMAN-HYD MOTOR

MOTOR ASSEMBLY - swing, parts list Figures 8-178 and 8-180

1шт.

2

REF

INSTRUCTION

HOSE - swing motor return, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103608 below

1шт.

3

P5847163

PIPE

ADAPTER - 90 degree, return hose

1шт.

4

P3037501

UNION

ADAPTER - straight, swing motor

1шт.

5

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Adapter (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

6

P36998

COLLAR CLAMP

CLAMP - swing motor return hose

4шт.

7

P5749002

PIPE

TUBE - hose to tee, no longer available

1шт.

8

P37268

TEE

- swing motor tube to swivel tube

1шт.

9

P7447640

PIPE

TUBE -, Serial Range: tee-swivel

1шт.

10

P3037515

UNION

ADAPTER - straight, Serial Range: tube-swivel

1шт.

11

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-186

1шт.

12

P5449099

PIPE

TUBE - tee to oil cooler hose

1шт.

13

REF

INSTRUCTION

HOSE - tube to oil cooler, 700 mm (27-9/16 inch) long, cut from bulk hose P1103609 below

1шт.

14

P36998

COLLAR CLAMP

CLAMP - oil cooler return hose

4шт.

15

P4431991

HOSE

- swing motor warm-through

1шт.

16

P3037511

UNION

ADAPTER - straight, hose to swing motor

1шт.

17

P245217

WASHER, SEALING

O-RING - adapter

1шт.

18

P37550

UNION

ADAPTER - straight, Serial Range: hose-tube

1шт.

19

P5749001

PIPE

TUBE -, Serial Range: hose-tee

1шт.

20

P37241

TEE

- tube to warm-through tube

1шт.

21

P5449097

PIPE

TUBE - warm-through

1шт.

22

P3231993

HOSE

- warm-through

1шт.

23

P37551

UNION

ADAPTER -, Serial Range: hose-tube

1шт.

24

REF

INSTRUCTION

BLOCK - manifold, return circuit, see Figures 8-66 - 8-70

1шт.

25

P3731901

HOSE

- manifold

1шт.

26

P2337592

UNION

ADAPTER - straight, manifold

1шт.

27

P1230443

O-RING

- adapter

1шт.

28

P1137610

PIPE

TUBE - manifold hose, no longer available

1шт.

29

P37550

UNION

ADAPTER - straight, Serial Range: hose-tube

2шт.

30

P3231989

HOSE

- tube to manifold tube

1шт.

31

P37368

UNION

ADAPTER - hose to manifold tube

1шт.

32

P2950162

MANIFOLD

TUBE - manifold, return circuit

1шт.

33

REF

INSTRUCTION

HOSE - manifold tube to cooler, 800 mm (31-1/2 inch) long, cut from bulk hose P1103609 below

1шт.

34

P36902

COLLAR CLAMP

CLAMP - hose

4шт.

35

P1137724

COOLER ASSY.

COOLER - oil, hydraulic, see Figure 8-4 for cooler fan and shroud

1шт.

36

P1023414

SHIN

CLAMP - single tube

1шт.

37

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- clamp, hex, full threads, 10 - 1.5 x 35 mm

2шт.

38

P820353

SHIN

CLAMP - double tube, upper

1шт.

39

P820351

SHIN

CLAMP - double tube, lower

1шт.

P1103608

PIPE

HOSE - bulk, sold by the meter

1шт.

P1103609

LARGE HOSE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
