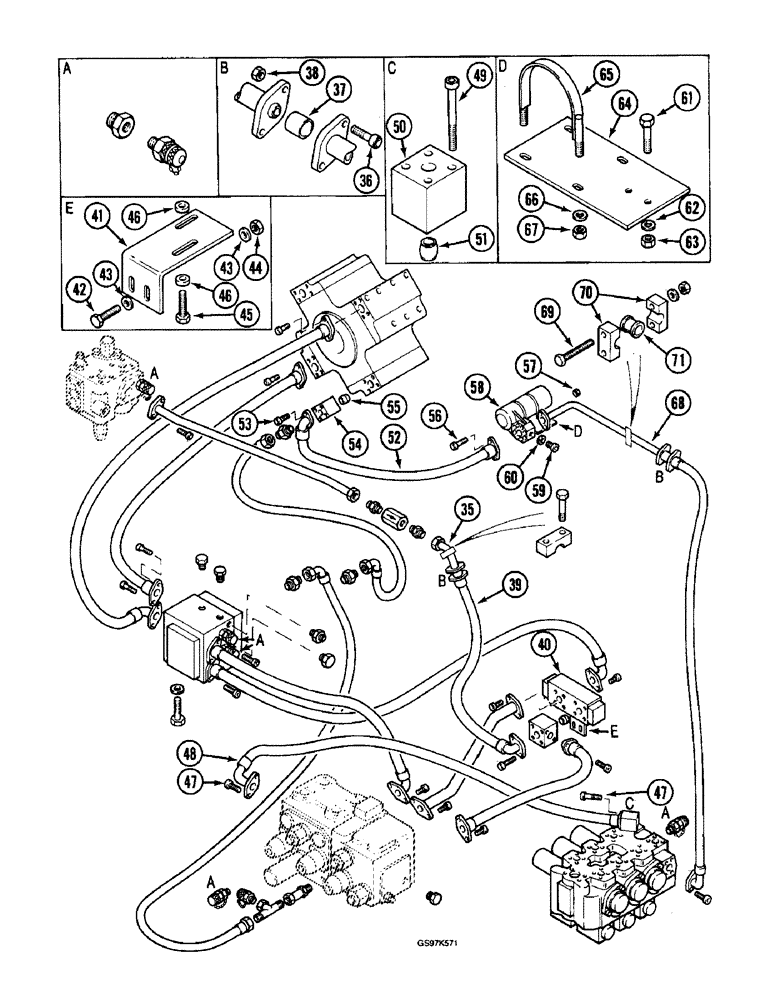

Запчасти Case 220B (8-018) - HYDRAULIC PUMP LINES, HIGH PRESSURE PUMP TO CONTROL VALVES, P.I.N. 03209 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
35
P6947149
PIPE
TUBE - from check valve to regulator valve, continued
1шт.
36
P1432903
SCREW
BOLT - hex socket, tube flange to hose flange
4шт.
37
P1737758
JUNCTION
ADAPTER - flange
2шт.
38
825-1408
NUT,M8, Cl 8
Flange bolt M8, Cl 8
4шт.
39
P3731961
HOSE
- check valve to regulator valve
1шт.
40
P1743350
SELECTOR
VALVE ASSEMBLY - regulator, parallel control, parts list Figure 8-158
1шт.
41
P4825695
SUPPORT
BRACKET - mounting, regulator valve
1шт.
42
614-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd
- hex, full threads, 10 - 1.5 x 60 mm (Replaces bolt P433814)
2шт.
43
P3528795
WASHER
SPACER - bolt, 7 mm thick
4шт.
44
832-10410
NUT,M10 x 1.5, Cl 8
NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8
2шт.
45
P133884
SCREW
BOLT - hex, 8 mm x 35 mm, full threaded
2шт.
46
P3528794
WASHER
SPACER - bolt, 6 mm thick
4шт.
47
P532924
SCREW
BOLT - flange
4шт.
48
P3231912
HOSE
- drive valve to equipment valve
1шт.
49
P1332908
SCREW
BOLT - junction block
2шт.
50
P1737017
SHIN
BLOCK - junction
1шт.
51
P2728875
JUNCTION
ADAPTER - junction, Serial Range: block-valve
1шт.
52
P3731961
HOSE
- pump to equipment valve
1шт.
53
P1232979
SCREW
BOLT - hex socket, hose, Serial Range: flange-block
2шт.
54
P3237733
JUNCTION
BLOCK - junction, at pump
1шт.
55
P1528828
JUNCTION
ADAPTER - junction, Serial Range: block-pump
1шт.
56
P732976
SCREW
BOLT - hex socket, hose, Serial Range: flange-accumulator
2шт.
57
825-1408
NUT,M8, Cl 8
Flange bolt M8, Cl 8
2шт.
P4237794
SHOCK ABSORBER
ACCUMULATOR ASSEMBLY - equipment circuit, Includes: Ref. 58 - 60
1шт.
58
NSS
NOT SOLD SEPARAT
BODY - accumulator, order accumulator assembly P4237794
1шт.
59
P933005
SCREW
- bleeder
5шт.
60
P1446072
WASHER
SEAL - bleeder screw
5шт.
61
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
- clamp plate, hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)
2шт.
62
P3528793
WASHER
SPACER - clamp plate bolt
2шт.
63
832-10412
NUT,M12 x 1.75, Cl 8
NUT, LOCK, , Clamp plate bolt (Replaces nut P34596) M12 x 1.75, Cl 8
2шт.
64
P4223317
SOLE
PLATE - tube clamp
1шт.
65
P3036946
CLAMP
- tube
2шт.
66
P3528795
WASHER
SPACER - clamp nut
4шт.
67
832-10410
NUT,M10 x 1.5, Cl 8
NUT, LOCK, , Clamp (Replaces nut P34598) M10 x 1.5, Cl 8
4шт.
68
P6547102
PIPE
TUBE - pump to equipment valve
1шт.
69
P133084
SCREW
BOLT - hex, 12 mm x 110 mm, full threaded
2шт.
70
P820377
SHIN
CLAMP - tube
2шт.
71
P741440
BUSHING
- tube
1шт.
Выбрано товаров: 38
