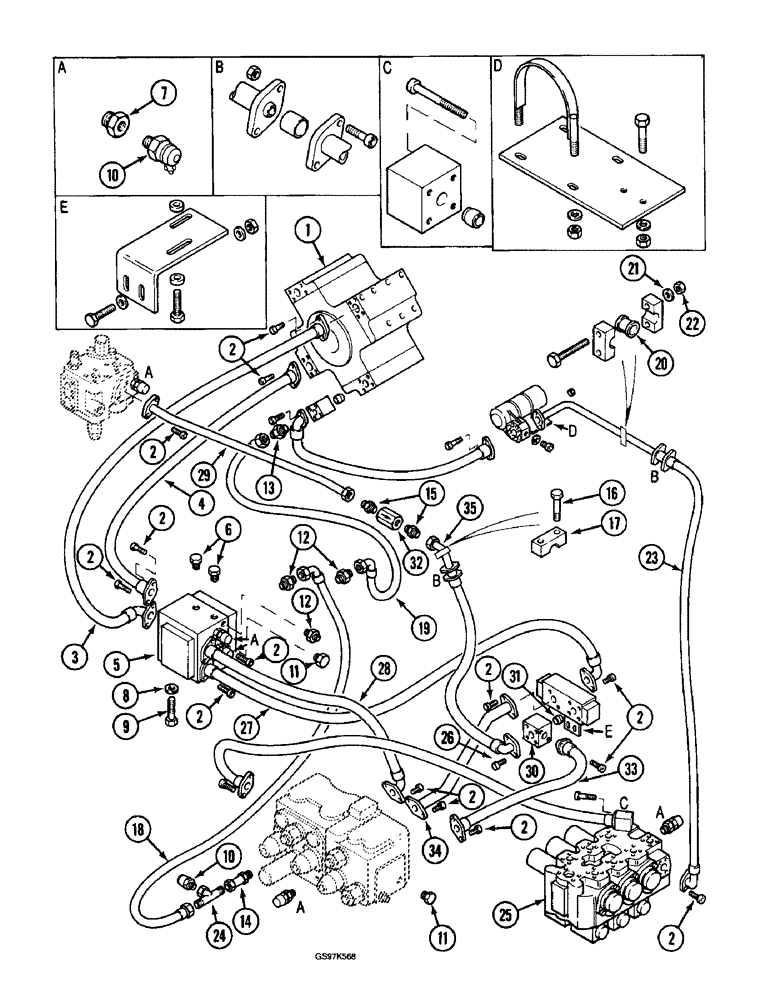

Запчасти Case 220B (8-012) - HYDRAULIC PUMP LINES, HIGH PRESSURE PUMP TO CONTROL VALVES, P.I.N 74570 - 74597, P.I.N 03201 - 03208 (08) - HYDRAULICS

1

P3443516

PUMP

ASSEMBLY - high pressure, parts list Figure 8-116

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose and tube flange Hex Soc Hd, M10 x 35, 10.9

28шт.

3

P3731961

HOSE

- pump to power sensing valve

1шт.

4

P3731923

HOSE

- pump to power sensing valve

1шт.

5

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-156

1шт.

6

P1437456

PLUG

ASSEMBLY - power sensing valve

2шт.

P945295

SEAL

- plug

1шт.

7

P637358

RESTRICTOR

ADAPTER ASSEMBLY - pressure check

5шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

8

P4528715

WASHER

SPACER - valve mounting bolt

3шт.

9

814-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 8.8

Power sensing valve (Replaces bolt P533804) Hex, M14 x 55, 8.8, Full Thd

3шт.

10

P4037516

MAKING-UP

VALVE ASSEMBLY - check, hydraulic pressure

6шт.

P7046042

SEAL

- pressure check

1шт.

11

P1337445

PLUG

ASSEMBLY - valve

2шт.

P945293

WASHER, SEALING

SEAL - plug

1шт.

12

P4037574

UNION

ADAPTER ASSEMBLY - straight, hose to power sensing valve

3шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

13

P4037573

UNION

ADAPTER ASSEMBLY - hose to junction block

1шт.

P945295

SEAL

- adapter

1шт.

14

P4037578

FITTING

TUBE ASSEMBLY - adapter, pilot hose to drive valve

1шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

15

P3037515

UNION

ADAPTER ASSEMBLY - check valve

2шт.

P5746063

SEAL

- check valve

1шт.

16

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Clamp Hex, M12 x 60, 8.8

2шт.

17

P520303

SHIN

CLAMP - tube

1шт.

18

P6631932

HOSE

- pilot, power sensing valve to drive valve

1шт.

19

P6631919

HOSE

- pilot, power sensing valve to equipment circuit

1шт.

20

P741440

BUSHING

- tube

1шт.

21

P4328731

WASHER

SPACER - clamp bolt

2шт.

22

825-1112

NUT,M12, Cl 8

- clamp bolt, hex, 12 mm - 1.75 (Replaces nut P34167)

2шт.

23

P3731961

HOSE

- pump to equipment valve

1шт.

24

P1237223

TEE

- pressure, Serial Range: check-valve

1шт.

25

REF

INSTRUCTION

VALVE - equipment, parts list figure 8-122 and 8-124

1шт.

26

P1232991

SCREW

BOLT - hex socket, hose, Serial Range: flange-block

2шт.

27

P3231950

HOSE

- lower, from power sensing valve

1шт.

28

P3231910

HOSE

- upper, from power sensing valve

1шт.

29

P8047694

PIPE

TUBE - from swing valve to check valve

1шт.

30

P937249

TEE

BLOCK - junction, hose to regulator valve

1шт.

31

P1528828

JUNCTION

ADAPTER - junction, Serial Range: block-valve

1шт.

32

P2043307

BLOCK ASSY.

VALVE ASSEMBLY - check, parts list Figure 8-168

1шт.

33

P3731920

HOSE

- junction block to parallel control valve

1шт.

34

P8147670

PIPE

TUBE - regulator valve to parallel control valve

1шт.

35

P6947149

PIPE

TUBE - from check valve to regulator valve Continued on next page

1шт.
