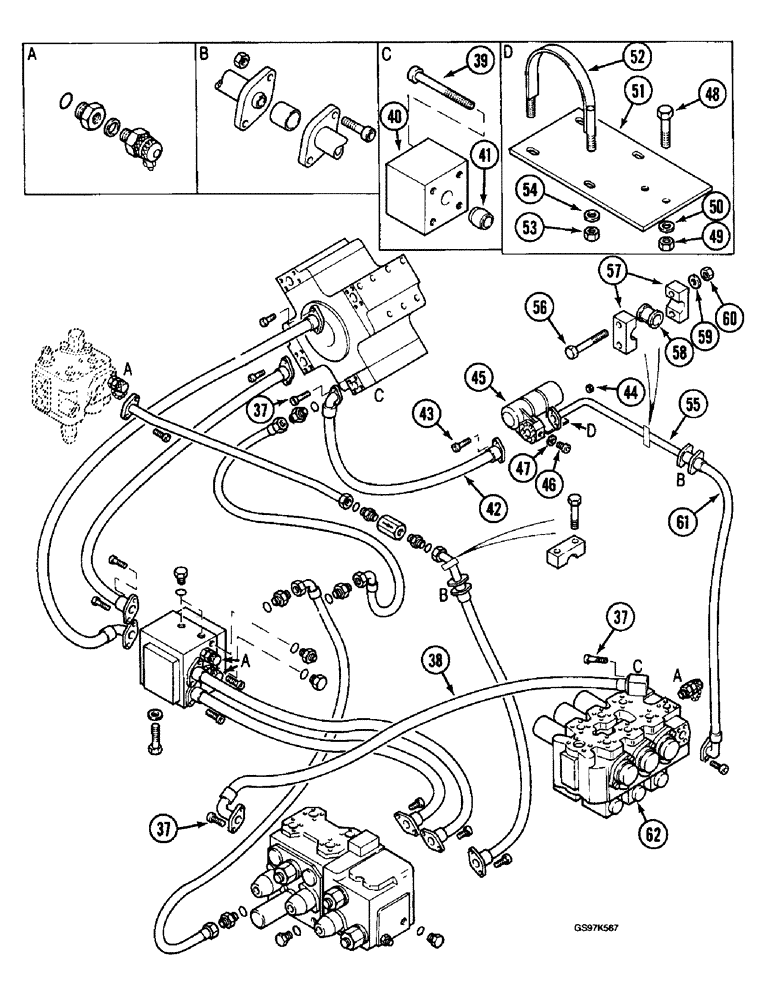

Запчасти Case 220B (8-010) - HYDRAULIC PUMP LINES, HIGH PRESSURE PUMP TO CONTROL VALVES, P.I.N. 74441 THROUGH 74569 (CONT) (08) - HYDRAULICS

37

P532924

SCREW

BOLT - flange, continued

4шт.

38

P3231912

HOSE

- drive valve to equipment valve

1шт.

39

P1332908

SCREW

BOLT - junction block

2шт.

40

P1337066

SHIN

BLOCK - junction

1шт.

41

P2728875

JUNCTION

ADAPTER - junction block

1шт.

42

P3731961

HOSE

- pump to equipment valve

1шт.

43

P933895

SCREW

BOLT - flange

2шт.

44

825-1408

NUT,M8, Cl 8

Flange bolt M8, Cl 8

2шт.

P4237794

SHOCK ABSORBER

ACCUMULATOR ASSEMBLY - equipment circuit, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - accumulator, order accumulator assembly P4237794

1шт.

46

P933005

SCREW

- bleeder

5шт.

47

P1446072

WASHER

SEAL - bleeder screw

5шт.

48

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- clamp plate, hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)

2шт.

49

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Clamp plate bolt (Replaces nut P34596) M12 x 1.75, Cl 8

2шт.

50

P3528793

WASHER

SPACER - clamp plate bolt

2шт.

51

P4223317

SOLE

PLATE - tube clamp

1шт.

52

P3036946

CLAMP

- tube

2шт.

53

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

54

P3528795

WASHER

SPACER - clamp nut

4шт.

55

P6547102

PIPE

TUBE - pump to equipment valve

1шт.

56

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

- hex, 12-1.75 x 110 mm, 8.8 - tube clamp (Replaces bolt P133887)

2шт.

57

P820377

SHIN

CLAMP - tube

2шт.

58

P741440

BUSHING

- tube

1шт.

59

P4328731

WASHER

SPACER - clamp bolt

2шт.

60

825-1112

NUT,M12, Cl 8

- clamp bolt, hex, 12 mm - 1.75 (Replaces nut P34167)

2шт.

61

P3731961

HOSE

- pump to equipment valve

1шт.

62

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list figures 8-122 and 8-124

1шт.
