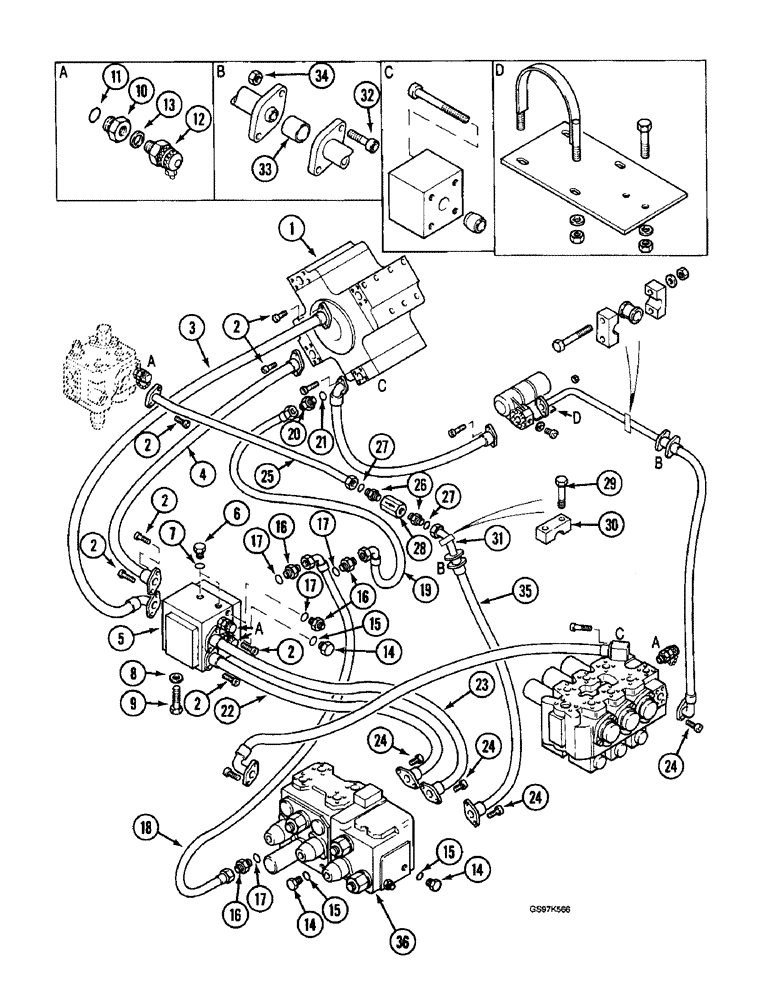

Запчасти Case 220B (8-008) - HYDRAULIC PUMP LINES, HIGH PRESSURE PUMP TO CONTROL VALVES, P.I.N. 74441 THROUGH 74569 (08) - HYDRAULICS

1

P3443516

PUMP

ASSEMBLY - high pressure, parts list Figure 8-116

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange Hex Soc Hd, M10 x 35, 10.9

14шт.

3

P3731961

HOSE

- pump to power sensing valve

1шт.

4

P3731923

HOSE

- pump to power sensing valve

1шт.

5

P1343315

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-156

1шт.

6

P1737451

PLUG

- power sensing valve

2шт.

7

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

8

P4528715

WASHER

SPACER - valve mounting bolt

3шт.

9

814-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 8.8

Power sensing valve (Replaces bolt P533804) Hex, M14 x 55, 8.8, Full Thd

3шт.

10

P637358

RESTRICTOR

ADAPTER - pressure check

4шт.

11

P1230443

O-RING

- adapter, Includes: Ref. 12 and 13

4шт.

P4037516

MAKING-UP

VALVE ASSEMBLY - check, pressure, hydraulic

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - pressure check, order valve assembly P4037516

1шт.

13

P7046042

SEAL

- pressure check

1шт.

14

P1337445

PLUG

- valve (Replaces plug P1737443)

3шт.

15

P1230443

O-RING

- plug

3шт.

16

P2337591

UNION

ADAPTER - hose

4шт.

17

P1230443

O-RING

- adapter

4шт.

18

P4831902

HOSE

- pilot, power sensing valve to drive valve

1шт.

19

P4431936

HOSE

- pilot, power sensing valve to equipment circuit

1шт.

20

P3037546

UNION

ADAPTER - hose to junction block

1шт.

21

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

22

P3731962

HOSE

- from power sensing valve

1шт.

23

P3231942

HOSE

- from power sensing valve

1шт.

24

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange Hex Soc Hd, M10 x 35, 10.9

8шт.

25

P8047694

PIPE

TUBE - from swing valve to parallel valve

1шт.

26

P3037515

UNION

ADAPTER - check valve

2шт.

27

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Check valve (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

28

P2043307

BLOCK ASSY.

VALVE ASSEMBLY - check, parts list Figure 8-168

1шт.

29

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Clamp Hex, M12 x 60, 8.8

2шт.

30

P520303

SHIN

CLAMP - tube

1шт.

31

P6947149

PIPE

TUBE - from check valve to parallel valve

1шт.

32

P1432903

SCREW

BOLT - flange

4шт.

33

P1737758

JUNCTION

SLEEVE - junction

2шт.

34

825-1408

NUT,M8, Cl 8

Flange bolt M8, Cl 8

4шт.

35

P3231942

HOSE

- swing valve to parallel valve

1шт.

36

REF

INSTRUCTION

VALVE ASSEMBLY - drive and parallel, parts list Figure 8-126 Continued on next figure

1шт.
