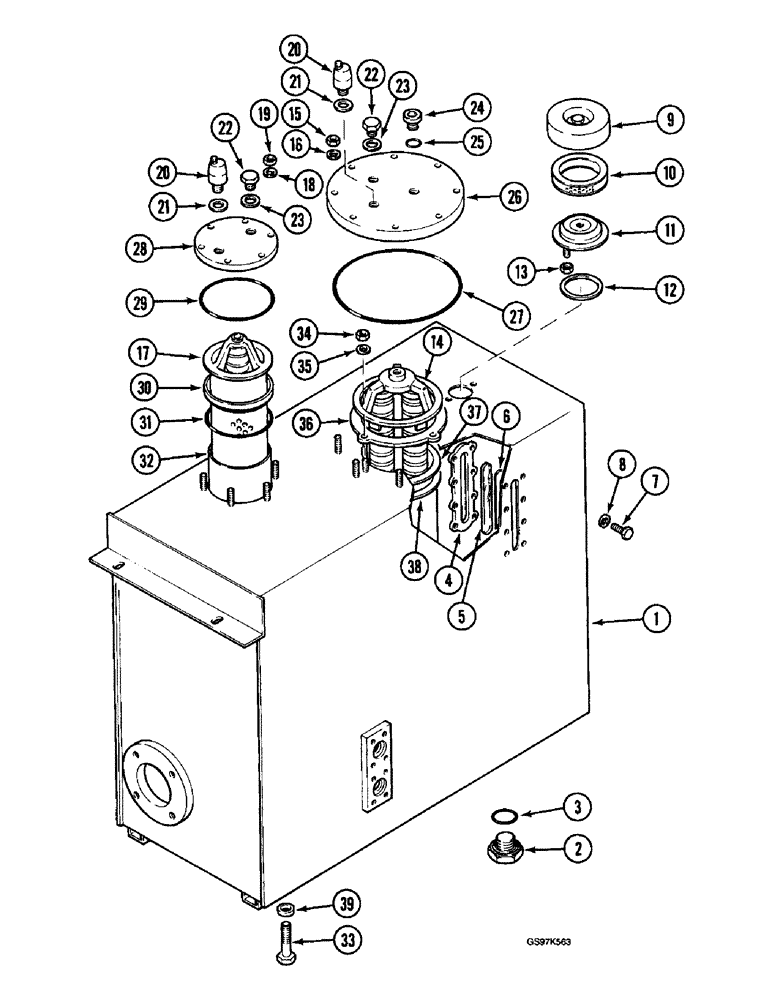

Запчасти Case 220B (8-002) - HYDRAULIC RESERVOIR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (08) - HYDRAULICS

1

P840272

OIL RESERVOIR

RESERVOIR - hydraulic oil

1шт.

2

P1737444

PLUG

- reservoir drain

2шт.

3

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Drain plug (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

4

P423428

BODY

GAUGE - sight, oil level

1шт.

5

P22485

SIGHTGLASS

GLASS - sight gauge

1шт.

6

P130487

O-RING

- sight gauge

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Gauge to tank

8шт.

8

P28425

COMPOSITE SEAL

WASHER - flat, gauge bolt

8шт.

P1337410

PLUG

BREATHER ASSEMBLY - hydraulic tank, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - breather, order breather assembly P1337410

1шт.

10

P850566

CARTRIDGE

FILTER - tank breather

1шт.

11

NSS

NOT SOLD SEPARAT

BASE - breather, order breather assembly P1337410

1шт.

12

P945279

SEAL

-, Serial Range: breather-tank

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

2шт.

14

P1350521

ENGINE OIL FILTER

FILTER ASSEMBLY - return oil, parts list Figure 8-188

1шт.

15

825-1410

NUT,M10, Cl 8

Filter to tank studs (Replaces nut P34166) M10, Cl 8

8шт.

16

P34611

WASHER

- lock, filter to tank studs

8шт.

17

P1050566

FILTER, ENGINE OIL

FILTER ASSEMBLY - drain return, parts list Figure 8-190

1шт.

18

P35002

WASHER

- lock, filter to tank studs

6шт.

19

P34113E

NUT,M8, Cl 8

- hex, filter to tank studs

6шт.

20

P841828

ELECTRO/HYD CONTACT

SENDER - electrical, filter condition

2шт.

21

P28424

COMPOSITE SEAL

SEAL - sending unit

2шт.

22

P3533006

SCREW

PLUG - filter cover (Replaces plug P30892)

2шт.

23

P45251

COMPOSITE SEAL

SEAL - plug

2шт.

24

P1337465

PLUG

- filter cover, no longer available, order plug P1337409 and O-ring J906696, Refs. 24 and 25

1шт.

24

P1337409

PLUG

- filter cover

1шт.

25

P545233

SEAL

O-RING - plug, used with plug P1337465

1шт.

25

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - plug, sealing

1шт.

26

P3127174

COVER - filter, return oil, no longer available

1шт.

27

P5346020

SEAL, RUBBER

O-RING - cover

1шт.

28

P3127165

COVER

- filter, drain return, no longer available

1шт.

29

P5346018

SEAL, RUBBER

O-RING - cover, drain return filter

1шт.

30

P1728863

RING

- adapter, filter

1шт.

31

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- adapter ring

1шт.

32

P250588

FILTER COVER

HOUSING - filter

1шт.

33

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

- reservoir mounting, hex, 20 - 2.5 x 70 mm (Replaces bolt P33865)

4шт.

34

832-1410

NUT - hex, self-locking, 10 mm - 1.5, filter support (Replaces nut P34598)

4шт.

35

P34611

WASHER

- nut, filter support

4шт.

36

P5130141

SUPPORT

- filter

1шт.

37

P1350519

FILTER COVER

HOUSING - filter, return

1шт.

38

P945290

WASHER, SEALING

SEAL -, Serial Range: filter-housing

1шт.

39

P4528718

WASHER

SPACER - mounting bolt

4шт.
