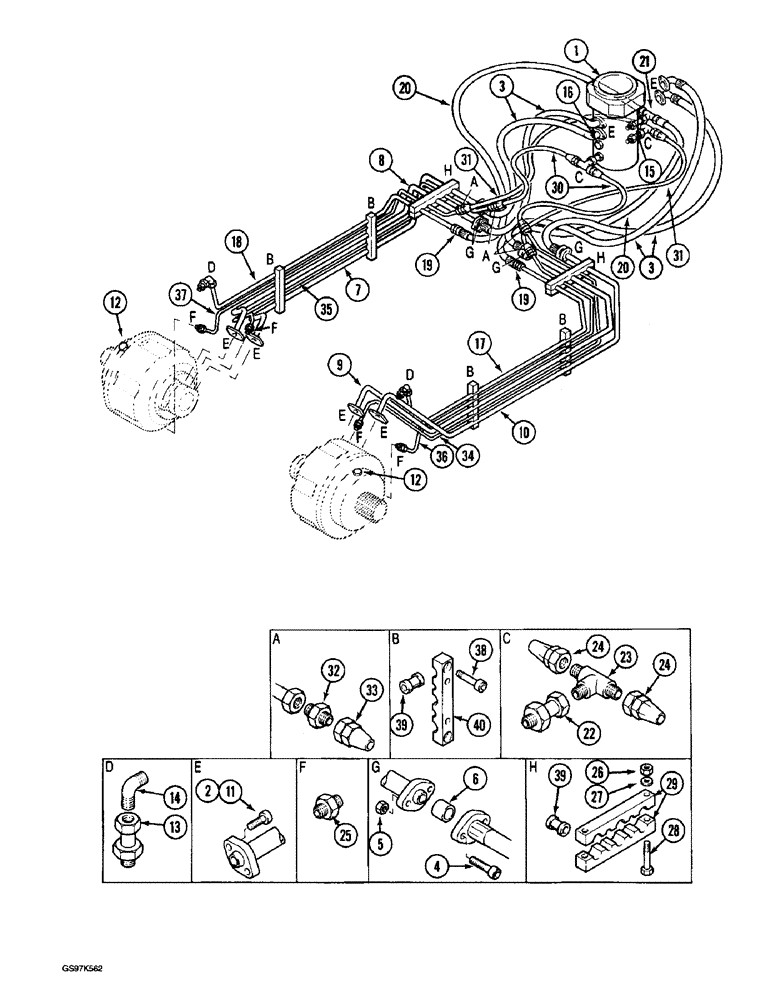

Запчасти Case 220B (7-6) - LOWER TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, PIN 74570 - 74597, PIN 03201 AND AFTER (07) - BRAKES

1

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-186

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange to swivel Hex Soc Hd, M10 x 35, 10.9

8шт.

3

P3231911

HOSE

- swivel to drive motors

4шт.

4

P1432903

SCREW

BOLT - hex socket, hose flange to tube flange

8шт.

5

825-1408

NUT,M8, Cl 8

Flange bolt, Hose flange to tube flange M8, Cl 8

8шт.

6

P1737758

JUNCTION

ADAPTER -, Serial Range: hose-tube

4шт.

7

P4949130

HYD TUBE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P4949128

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

9

P4949129

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

10

P4949131

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

11

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to drive motor Hex Soc Hd, M10 x 35, 10.9

8шт.

12

P1437456

PLUG

ASSEMBLY - drive motor housing

2шт.

P945295

SEAL

- plug

1шт.

13

P2337594

FITTING

TUBE ASSEMBLY - connecting, motor housing drain, at motor

2шт.

P5746063

SEAL

- tube

1шт.

14

P37078

ELBOW-CONNECTION

ELBOW - 90 degree, at motor drain

2шт.

15

P3037512

FITTING

TUBE ASSEMBLY - connecting, drain, Serial Range: hoses-swivel

1шт.

P5746063

SEAL

- tube

1шт.

16

P1437458

PLUG

ASSEMBLY - hydraulic swivel port

1шт.

P5746063

SEAL

- plug

1шт.

17

P4949133

PIPE

TUBE - right-hand motor housing drain

1шт.

18

P4949132

PIPE

TUBE - left-hand motor housing drain

1шт.

19

P37554

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

20

P4431917

HOSE

- motor housing drain, at swivel, 1250 mm (49-1/4 inch) long

2шт.

21

P37234

TEE

- drain, Serial Range: hoses-swivel

1шт.

22

P3037508

FITTING

TUBE ASSEMBLY - connecting, pilot control, Serial Range: hoses-swivel

2шт.

P5746063

SEAL

O-RING - connecting tube

1шт.

23

P1237226

TEE

- pilot, Serial Range: hoses-tube

2шт.

24

P4037588

END FITTING

ADAPTER - straight, pilot, Serial Range: hoses-tee

4шт.

25

P4037573

UNION

ADAPTER ASSEMBLY - straight, tube to drive motor

4шт.

P945295

SEAL

- adapter

1шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Clamp bolt (Replaces nut P34596) M12 x 1.75, Cl 8

4шт.

27

P3528793

WASHER

SPACER - bolt

4шт.

28

P133084

SCREW

BOLT - hex, tube clamp

4шт.

29

P4020368

SHIN

CLAMP - tubes, horizontal, near swivel hoses

4шт.

30

REF

INSTRUCTION

HOSE - pilot control, motor drive range, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

2шт.

31

REF

INSTRUCTION

HOSE - pilot control, motor brake release, 1300 mm (51-3/16 inch) long, cut from bulk hose P1103640 below

2шт.

32

P3237535

UNION

ADAPTER - pilot, Serial Range: hose-tube

4шт.

33

P4037588

END FITTING

ADAPTER - straight, pilot, Serial Range: hose-adapter

4шт.

34

P6849131

PIPE

TUBE - pilot control, right-hand motor drive range

1шт.

35

P6849132

PIPE

TUBE - pilot control, left-hand motor drive range

1шт.

36

P6849119

PIPE

TUBE - pilot control, right-hand motor brake release

1шт.

37

P6849120

PIPE

TUBE - pilot control, left-hand motor brake release

1шт.

38

P32943

SCREW

BOLT - hex socket, clamp to track frame

8шт.

39

P3141453

BUSHING

- rubber, tube clamp, 16 mm (5/8 inch) I D

6шт.

40

P4020367

SHIN

CLAMP - tubes to side of track frame

4шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
