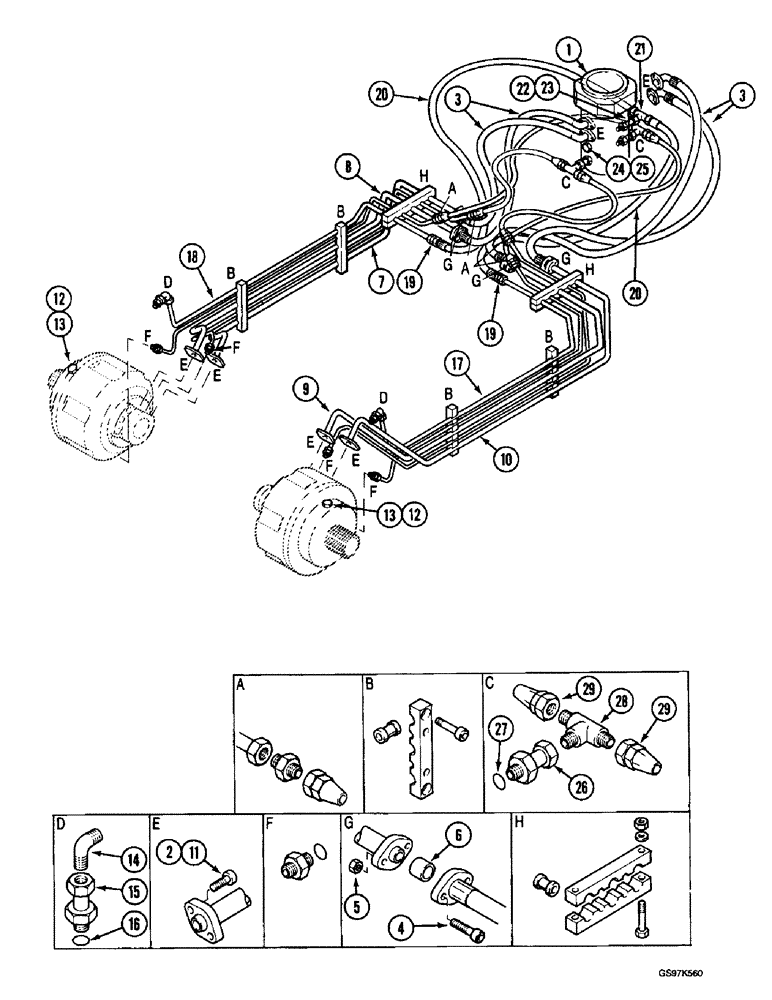

Запчасти Case 220B (7-2) - LOWER TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 74441 THROUGH 74569 (07) - BRAKES

1

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-186

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange to swivel Hex Soc Hd, M10 x 35, 10.9

8шт.

3

P3231911

HOSE

- swivel to drive motors

4шт.

4

P1432903

SCREW

BOLT - hex socket, hose flange to tube flange

8шт.

5

825-1408

NUT,M8, Cl 8

Flange bolt, Hose flange to tube flange M8, Cl 8

8шт.

6

P1737758

JUNCTION

ADAPTER -, Serial Range: hose-tube

4шт.

7

P4949130

HYD TUBE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P4949128

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

9

P4949129

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

10

P4949131

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

11

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Tube flange to drive motor Hex Soc Hd, M10 x 35, 10.9

8шт.

12

P1737451

PLUG

- drive motor housing

2шт.

13

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

14

P37078

ELBOW-CONNECTION

ELBOW - 90 degree, at motor drain

2шт.

15

P2337594

FITTING

TUBE - connecting, motor housing drain, at motor

2шт.

16

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Tube (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

17

P4949133

PIPE

TUBE - right-hand motor housing drain

1шт.

18

P4949132

PIPE

TUBE - left-hand motor housing drain

1шт.

19

P37554

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

20

P4431917

HOSE

- motor housing drain, at swivel, 1250 mm (49-1/4 inch) long

2шт.

21

P37234

TEE

- drain, Serial Range: hoses-swivel

1шт.

22

P3037512

FITTING

TUBE - connecting, drain, Serial Range: hoses-swivel

1шт.

23

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Tube (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

1шт.

24

P1737444

PLUG

- hydraulic swivel port

1шт.

25

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Plug (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

1шт.

26

P3037508

FITTING

TUBE - connecting, pilot control, Serial Range: hoses-swivel

2шт.

27

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Connecting tube (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

2шт.

28

P37248

TEE

- pilot, Serial Range: hoses-tube

2шт.

29

B506378

END FITTING

ADAPTER - straight, pilot hoses to tee (Replaces adapter P4037535) Continued on next figure

4шт.
