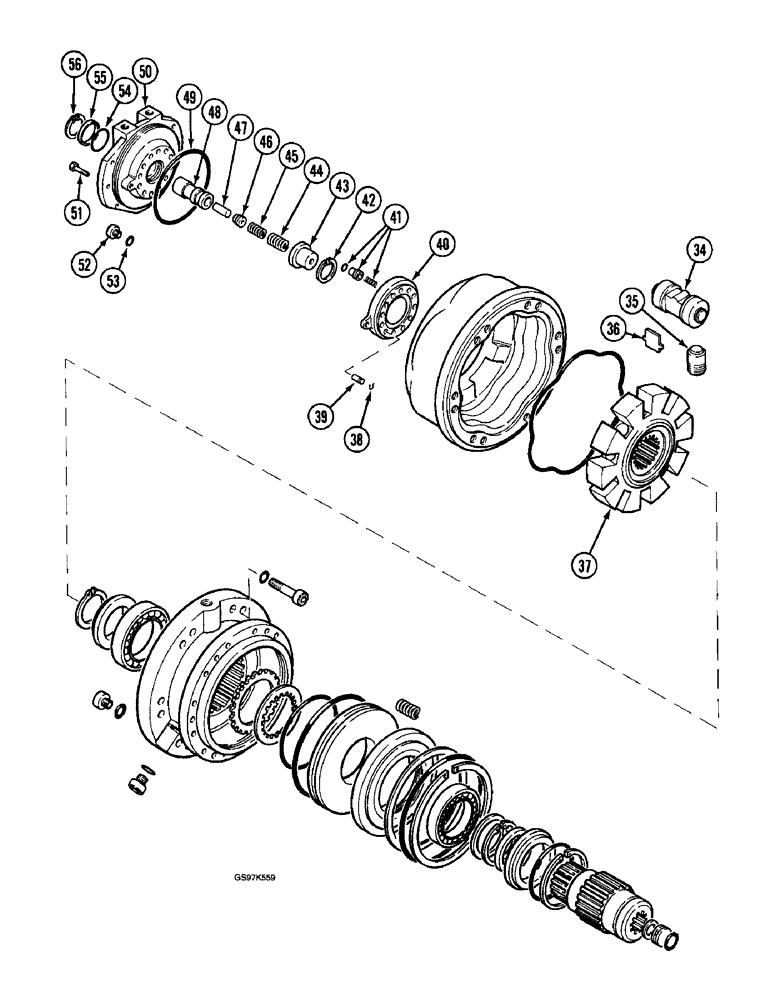

Запчасти Case 220B (6-6) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (06) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, track drive, continued, Includes: Ref. 34 - 56 and 1 - 32 on figure 6-4

2шт.

P7546291

CYLINDER BLOCK

ROTOR AND ROLLER ASSEMBLY - motor (Replaces rotor and roller assembly P6046275), Includes: Ref. 34 - 37

1шт.

34

P6446266

LARGE PIN

SHAFT - roller, motor, no longer available

10шт.

35

P7146256

PISTON

- motor

10шт.

36

P5537701

KIT

PLATE - wear, set of 20 (Replaces plate P3637779)

1шт.

37

NSS

NOT SOLD SEPARAT

ROTOR - drive motor, order assembly P7546291

1шт.

P5646218

VALVE, CONTROL

DISTRIBUTOR ASSEMBLY - motor, Includes: Ref. 38 - 56

1шт.

38

P1936914

SEGMENT

RING - snap, pin

2шт.

39

P836004

SPLIT PIN/SAFETY PIN

PIN - dowel, plate

2шт.

40

P7130154

LARGE PLATE

PLATE - distributor

1шт.

41

NSS

NOT SOLD SEPARAT

SPRING AND GUIDE - distributor plate, set of 12, order distributor assembly

1шт.

42

800-2170

SNAP RING,M70, Int

RING - snap, spool cap (Replaces ring P36237)

1шт.

43

P1729007

WASHER

CAP - spool

1шт.

44

P1838152

COMPRESSION SPRING

SPRING - spool, large

1шт.

45

P1838151

COMPRESSION SPRING

SPRING - spool, small

1шт.

46

P1637480

PLUG

- end

1шт.

47

NSS

NOT SOLD SEPARAT

PLUNGER - spool, order distributor assembly P5646218

1шт.

48

NSS

NOT SOLD SEPARAT

SPOOL - distributor, order distributor assembly P5646218

1шт.

49

P1830414

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

- distributor housing

1шт.

Part of seal kit P/N P4349608

1шт.

50

NSS

NOT SOLD SEPARAT

HOUSING - distributor, order distributor assembly P5646218

1шт.

51

P632944

SCREW

BOLT - distributor housing

6шт.

52

P1037474

PLUG

- housing

1шт.

53

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N P4349608

1шт.

54

P130413

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- end cover

1шт.

Part of seal kit P/N P4349608

1шт.

55

P1945008

WASHER

COVER - end, housing

1шт.

56

P36239

RING, SNAP

RING - snap, end cover

1шт.

P4349608

SEAL PACKAGE

KIT - seal, Includes: Ref. 49, 53 and 54

1шт.
