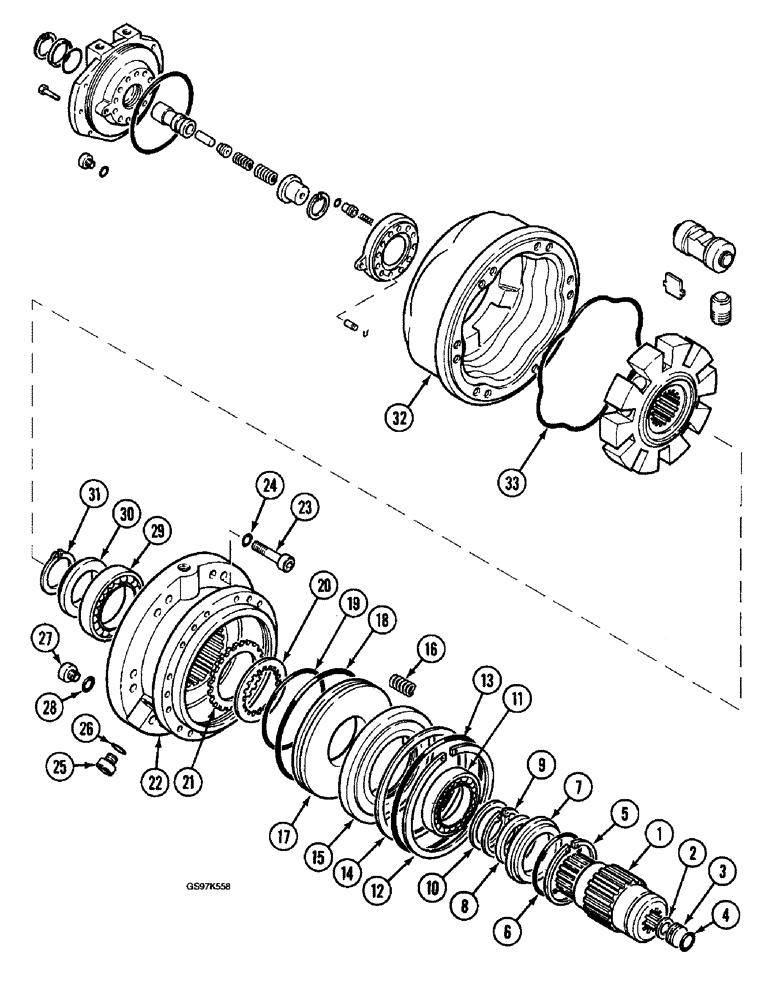

Запчасти Case 220B (6-4) - TRACK DRIVE HYDRAULIC MOTOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (06) - POWER TRAIN

P2543754

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Ref. 1 - 32 and 34 - 56 on figure 6-6

2шт.

P5646204

SHAFT

ASSEMBLY - drive, motor, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - drive, motor, order shaft assembly P5646204

1шт.

2

P1745349

SHIM KIT

KIT - shim, shaft

1шт.

3

P1945014

WASHER

COVER - end

1шт.

4

P2130407

O-RING

- end cover

1шт.

Part of seal kit P/N P4349608

1шт.

P5646202

CYLINDER END CAP

BRAKE ASSEMBLY - track drive

1шт.

5

P1936918

SEGMENT

RING - snap, seal retainer

1шт.

6

P1630403

O-RING

- retainer

1шт.

Part of seal kit P/N P4349608

1шт.

P5646203

CAP

SEAL ASSEMBLY - bearing

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - seal, order seal assembly P5646203

1шт.

8

P3637744

OIL SEAL

SEAL - bearing

1шт.

Part of seal kit P/N P4349608

1шт.

9

P436356

RING, SNAP

RING - snap, bearing

1шт.

10

P1745354

SHIM KIT

SET - shim, bearing

1шт.

11

P39627

BEARING

- tapered roller, shaft, outer

1шт.

12

P936206

RING, SNAP

RING - snap, bearing support

1шт.

13

P1830468

O-RING

- bearing support

1шт.

Part of seal kit P/N P4349608

1шт.

14

P2645303

BLOCK

SHIM - bearing support

1шт.

15

P1729025

SUPPORT

- bearing

1шт.

16

P4037717

KIT

- spring, brake piston, set of 27

1шт.

17

P5143137

PISTON

- brake, no longer available

1шт.

18

P30377

O-RING

- piston, large

1шт.

Part of seal kit P/N P4349608

1шт.

19

P630374

O-RING

- piston, small

1шт.

Part of seal kit P/N P4349608

1шт.

20

P5143106

DISC

- friction

13шт.

21

P2639302

DISC

- steel

11шт.

22

P5143138

SLEWING RING

HOUSING - brake

1шт.

23

P1332917

SCREW

- brake housing

12шт.

24

P34718M

WASHER, LOCK

WASHER - lock, housing screw

12шт.

25

P737464

PLUG

- brake housing, front

1шт.

26

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

Part of seal kit P/N P4349608

1шт.

27

P1037474

PLUG

- brake housing, rear

1шт.

28

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N P4349608

1шт.

29

P2339827

BEARING

- tapered roller, shaft, inner

1шт.

30

P1729029

SPACER

- bearing

1шт.

31

P1936916

SEGMENT

RING - snap, bearing

1шт.

P5646212

HOUSING

ASSEMBLY - motor

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - motor, order housing assembly P5646212

1шт.

33

P7046027

SEAL

- motor housing

1шт.

Part of seal kit P/N P4349608

1шт.

P4349608

SEAL PACKAGE

KIT - seal, Includes: Ref. 4, 6, 8, 13, 18, 19, 26, 28 and 33, continued on next figure

1шт.
