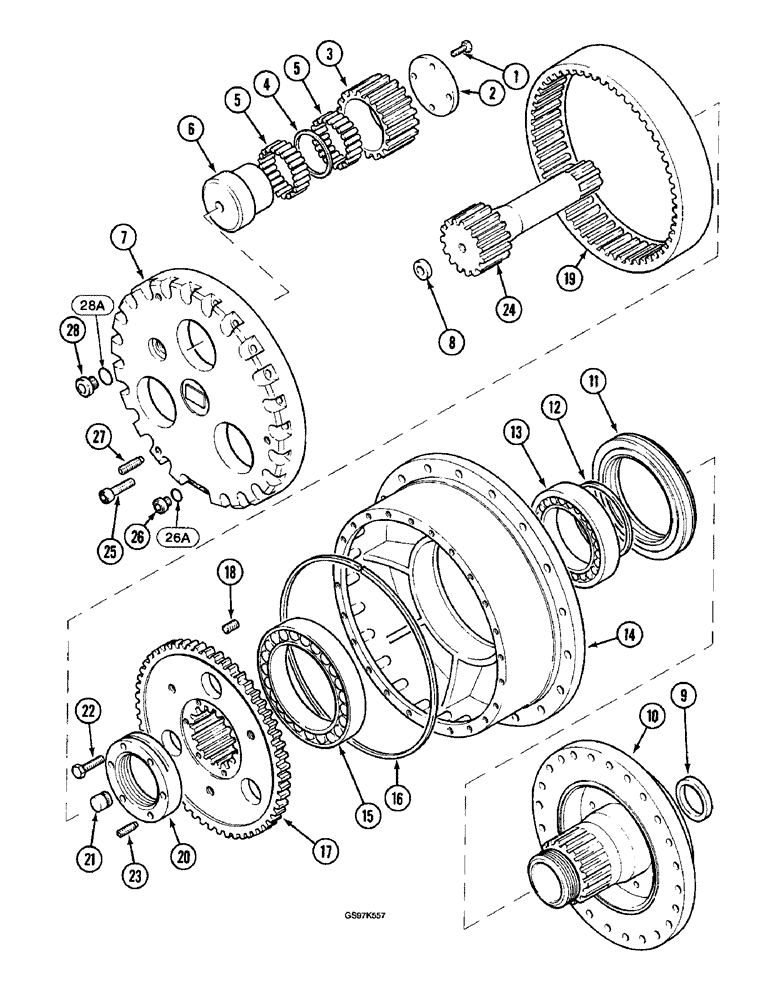

Запчасти Case 220B (6-2) - FINAL DRIVE TRANSMISSION, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (06) - POWER TRAIN

P1938972

REDUCER

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 8

2шт.

P3739374

PINION CARRIER

GEAR AND CARRIER ASSEMBLY - planetary, no longer available

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - plate, order assembly P3739374

12шт.

2

NSS

NOT SOLD SEPARAT

PLATE - planetary, order assembly P3739374

3шт.

3

NSS

NOT SOLD SEPARAT

GEAR - planetary, order assembly P3739374

3шт.

4

NSS

NOT SOLD SEPARAT

RING - bearing, order assembly P3739374

3шт.

5

NSS

NOT SOLD SEPARAT

BEARING - needle, planetary gear, order assembly P3739374

432шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - planetary gear, order assembly P3739374

3шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - planetary gear, order assembly P3739374

1шт.

8

P2329171

STOP

- planetary drive

1шт.

9

P7546081

SEAL

- spindle

1шт.

10

NSS

NOT SOLD SEPARAT

SPINDLE - final drive, order transmission assembly P1938972

1шт.

11

P7546080

SEAL

- spindle, inner

1шт.

12

P1929033

SPACER

- bearing

1шт.

13

P1139829

BEARING

- ball, spindle

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - final drive transmission, order transmission assembly P1938972

1шт.

15

P1139838

BEARING

- ball, planetary hub

1шт.

P2348510

SUPPORT

HUB ASSEMBLY - planetary, no longer available, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap, planetary hub, order hub assembly P2348510

1шт.

17

NSS

NOT SOLD SEPARAT

HUB - planetary, order hub assembly P2348510

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - hub, order hub assembly P2348510

3шт.

19

NSS

NOT SOLD SEPARAT

GEAR - ring, planetary, order hub assembly P2348510

1шт.

20

P2434511

NUT

- locking

1шт.

21

P5327863

DOWEL

PIN - dowel, shaft, no longer available

1шт.

22

P2033097

SCREW

- locking nut

2шт.

23

P32875

SCREW

- locking nut

1шт.

24

P828096

SHAFT

AND GEAR - planetary drive, no longer available

1шт.

25

P732920

SCREW

-, Serial Range: carrier-housing

24шт.

26

P37477

PLUG

- drain

1шт.

26a

P28431

COMPOSITE SEAL

SEAL - drain plug

1шт.

27

P32849

SCREW

- set, carrier

3шт.

28

P2537445

PLUG

- fill

1шт.

28a

P1245217

WASHER, SEALING

SEAL - fill plug

1шт.
