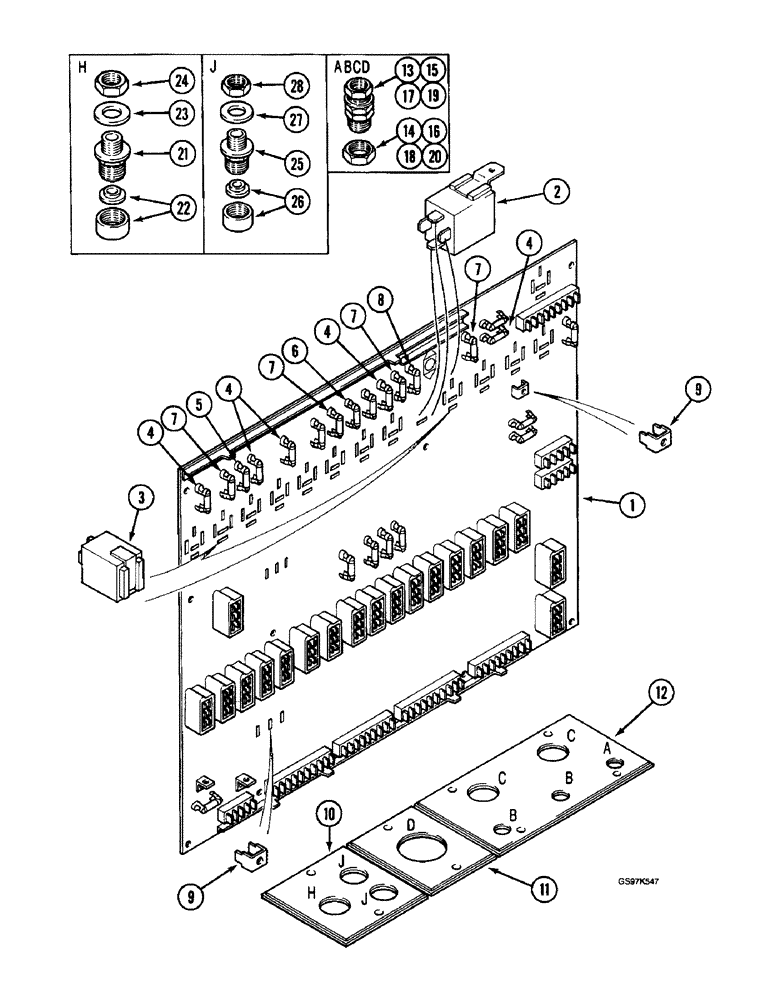

Запчасти Case 220B (4-66) - ELECTRICAL BOX, WITH TOP LATCHED ACCESS DOOR, P.I.N. 74595 - 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P151678

BOARD, PRINTED CIRCU

CIRCUIT - printed, electrical box

1шт.

2

P2041150

IGNITION SWITCH

SWITCH - magnetic, bolt-on type

1шт.

3

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type, at printed circuit

2шт.

4

3021479R2

FUSE

- circuit, 5 amp (Replaces fuse P841297)

5шт.

5

3021478R1

FUSE,A8, White

- circuit, 8 amp

1шт.

6

P841295

FUSE

- circuit, 10 amp

1шт.

7

926644C1

FUSE,A16, Red

- circuit, 16 amp (Replaces fuse P841294)

4шт.

8

P1241265

FUSE

- circuit, 30 amp

1шт.

9

P640961

CONNECTION

CLIP - connector, printed circuit

2шт.

10

P4823469

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

11

P4823467

LARGE PLATE

PLATE - insulator, middle

1шт.

12

P4823473

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

13

P141431

GLAND

BUSHING - harness locking, 10 mm (0.39 inch) diameter, A hole in plate

1шт.

14

P141439

NUT

- bushing, used with 10 mm (0.39 inch) diameter bushing

1шт.

15

P141430

GLAND

BUSHING - harness locking, 8 mm (0.31 inch) diameter, B hole in plate

2шт.

16

P141438

NUT

- bushing, used with 8 mm (0.31 inch) diameter bushing

2шт.

17

P141434

GLAND

BUSHING - harness locking, 18 mm (0.71 inch) diameter, C hole in plate, no longer available, order bushing P141435 and nut P141453, items 19 and 20

2шт.

18

P141452

NUT

- bushing, used with 18 mm (0.71 inch) diameter bushing

2шт.

19

P141435

GLAND

BUSHING - harness locking, 24 mm (0.94 inch) diameter, D hole in plate

1шт.

20

P141453

NUT

- bushing, used with 24 mm (0.94 inch) diameter bushing

1шт.

21

P2340415

BODY

ADAPTER - plate cover, H hole in plate

1шт.

22

P2340414

CAP

COVER - adapter, includes seal

1шт.

23

P7546026

SEAL

-, Serial Range: adapter-box

1шт.

24

P1634584

NUT

- locking, Serial Range: adapter-box

1шт.

25

P2340444

BODY

ADAPTER - plate cover, J hole in plate

2шт.

26

P2340443

CAP

COVER - adapter, includes seal

2шт.

27

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

28

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.
