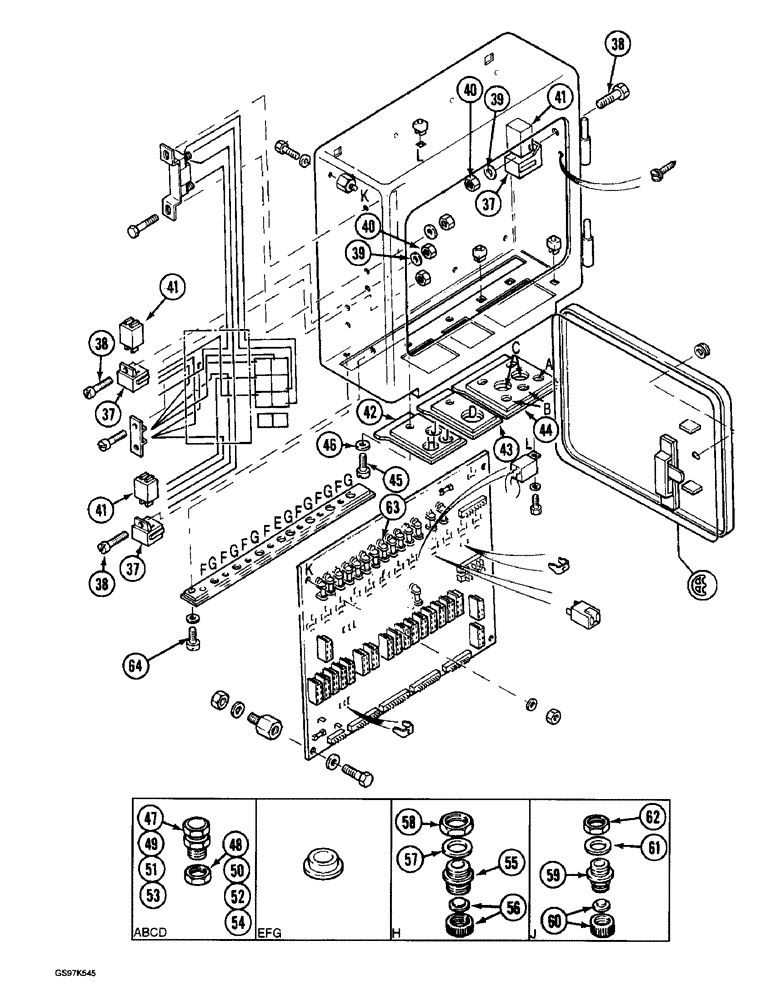

Запчасти Case 220B (4-62) - ELECTRICAL BOX, WITH SIDE HINGED ACCESS DOOR, P.I.N. 74570 THROUGH 74594 (04) - ELECTRICAL SYSTEMS

37

P40710

PLATE

RECEPTACLE - harness, magnetic switch, continued

3шт.

38

P32538

SCREW

- slotted head, 5 mm x 16 mm

3шт.

39

P4328717

WASHER

SPACER - screw, 3 mm thick

3шт.

40

825-1405

NUT,M5, Cl 8

(Replaces nut P34108) M5, Cl 8

3шт.

41

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type (Replaces switch P241140)

3шт.

42

P2826198

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

43

P3141477

LARGE PLATE

PLATE - insulator, middle

1шт.

44

P7043855

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

45

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

46

P35001

WASHER

- flat, 6 mm

4шт.

47

P141431

GLAND

BUSHING - harness locking, 10 mm (0.39 inch) diameter, A hole in plate

1шт.

48

P141439

NUT

- bushing, used with 10 mm (0.39 inch) diameter bushing

1шт.

49

P141430

GLAND

BUSHING - harness locking, 8 mm (0.31 inch) diameter, B hole in plate

2шт.

50

P141438

NUT

- bushing, used with 8 mm (0.31 inch) diameter bushing

2шт.

51

P141434

GLAND

BUSHING - harness locking, 18 mm (0.71 inch) diameter, C hole in plate, no longer available, order bushing P141435 and nut P141453, items 53 and 54

2шт.

52

P141452

NUT

- bushing, used with 18 mm (0.71 inch) diameter bushing

2шт.

53

P141435

GLAND

BUSHING - harness locking, 24 mm (0.94 inch) diameter, D hole in plate

1шт.

54

P141453

NUT

- bushing, used with 24 mm (0.94 inch) diameter bushing

1шт.

55

P2340415

BODY

ADAPTER - plate cover, H hole in plate

1шт.

56

P2340414

CAP

COVER - adapter, includes seal

1шт.

57

P7546026

SEAL

-, Serial Range: adapter-box

1шт.

58

P1634584

NUT

- locking, Serial Range: adapter-box

1шт.

59

P2340444

BODY

ADAPTER - plate cover, J hole in plate

2шт.

60

P2340443

CAP

COVER - adapter, includes seal

2шт.

61

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

62

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.

63

P841295

FUSE

- circuit, 10 amp

1шт.

64

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.
