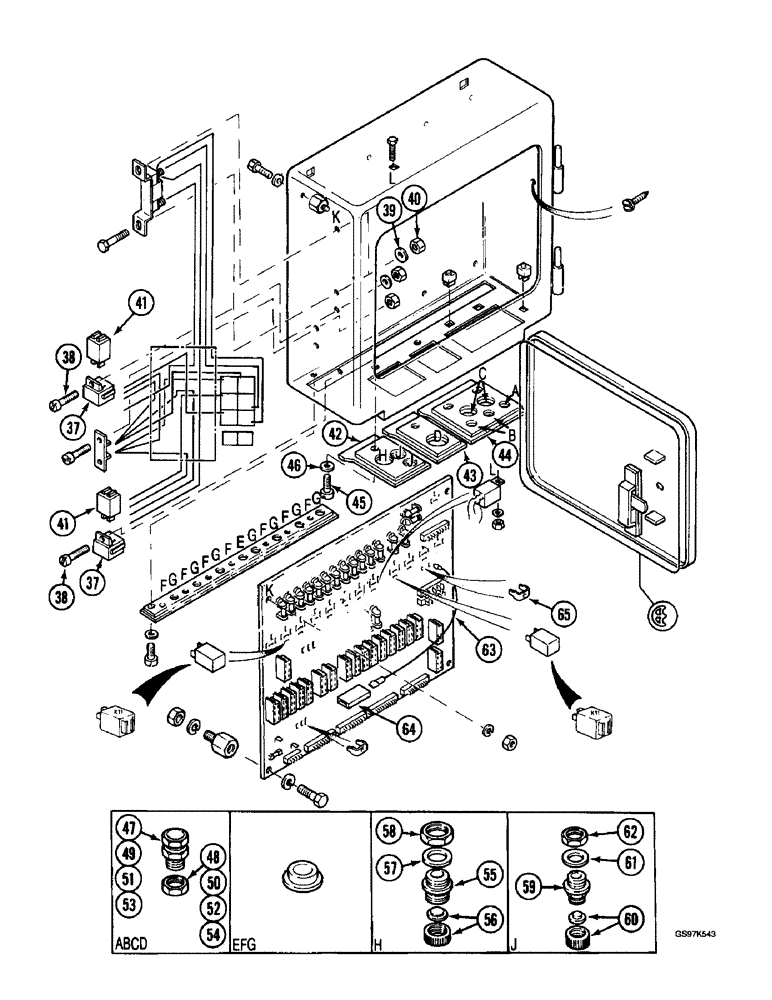

Запчасти Case 220B (4-58) - ELECTRICAL BOX, WITH SIDE HINGED ACCESS DOOR, P.I.N. 74441 THROUGH 74569 (04) - ELECTRICAL SYSTEMS

37

P40710

PLATE

RECEPTACLE - harness, magnetic switch

2шт.

38

P32538

SCREW

- receptacle mounting

2шт.

39

P4328717

WASHER

SPACER - mounting screw

2шт.

40

825-1405

NUT,M5, Cl 8

Receptacle mounting (Replaces nut P34108) M5, Cl 8

2шт.

41

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type, 24 volt (Replaces switch P241140)

2шт.

42

P3141479

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

43

P3141477

LARGE PLATE

PLATE - insulator, middle

1шт.

44

P7043855

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

45

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Plate mounting Hex, M6 x 16, 8.8

4шт.

46

P35001

WASHER

- lock

4шт.

47

P141431

GLAND

BUSHING - harness locking, 10 mm (3/8 inch) diameter, A hole in plate

1шт.

48

P141439

NUT

- bushing, used with 10 mm (3/8 inch) diameter bushing

1шт.

49

P141430

GLAND

BUSHING - harness locking, 8 mm (5/16 inch) diameter, B hole in plate

2шт.

50

P141438

NUT

- bushing, used with 8 mm (5/16 inch) diameter bushing

2шт.

51

P141434

GLAND

BUSHING - harness locking, 18 mm (3/4 inch) diameter, C hole in plate, no longer available, order bushing P141435 and nut P141453, Refs. 53 and 54

2шт.

52

P141452

NUT

- bushing, used with 18 mm (3/4 inch) diameter bushing

2шт.

53

P141435

GLAND

BUSHING - harness locking, 24 mm (1 inch) diameter, D hole in plate

1шт.

54

P141453

NUT

- bushing, used with 24 mm (1 inch) diameter bushing

1шт.

55

P2340436

BODY

ADAPTER - plate cover, H hole in plate

1шт.

56

P2340435

CAP

COVER - adapter, includes seal

1шт.

57

P7546067

SEAL

-, Serial Range: adapter-box

1шт.

58

P2434507

NUT

- locking, Serial Range: adapter-box

1шт.

59

P2340444

BODY

ADAPTER - plate cover, J hole in plate

2шт.

60

P2340443

CAP

COVER - adapter, includes seal

2шт.

61

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

62

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.

63

P9247266

ELECTRICAL WIRE

WIRE - connector, printed circuit, if used

1шт.

64

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip, if used

1шт.

65

P640961

CONNECTION

CLIP - connector, printed circuit, used when wire P9247266, Ref. 63, and connector P40941, Ref. 64, are not installed

1шт.
