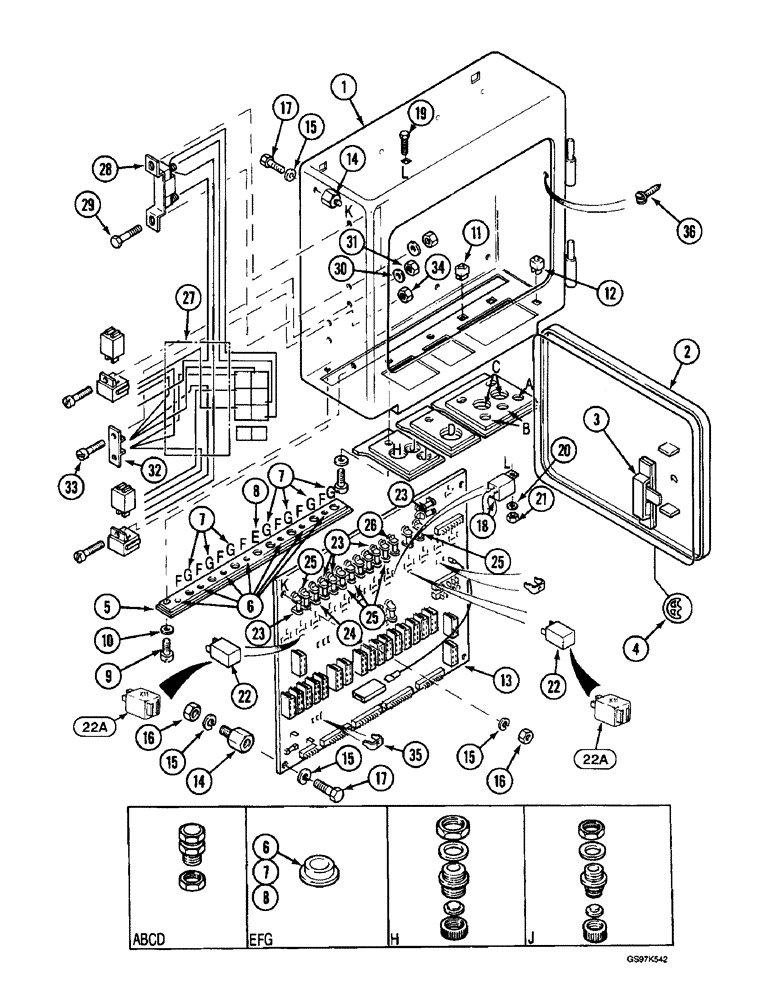

Запчасти Case 220B (4-56) - ELECTRICAL BOX, WITH SIDE HINGED ACCESS DOOR, P.I.N. 74441 THROUGH 74569 (04) - ELECTRICAL SYSTEMS

1

P2241037

ELECTRICAL CABINET

BOX - electrical, printed circuit components, Includes: Ref. 2 and 3

1шт.

P6643814

DOOR

ASSEMBLY - electrical box

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - electrical box, order door assembly P6643814

1шт.

3

P51922

LATCH

- door

1шт.

4

REF

INSTRUCTION

SEAL - door, rubber, 1400 mm (55-1/8 inch) long, cut from bulk seal P303111 below

1шт.

P3141478

LARGE PLATE

PLATE ASSEMBLY - insulator, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - insulator, order plate assembly P3141478

1шт.

6

P2537454

PLASTIC PLUG

PLUG - insulator plate, 16 mm (5/8 inch) diameter, F hole in plate

7шт.

7

P2537453

PLASTIC PLUG

PLUG - insulator plate, 19 mm (3/4 inch) diameter, G hole in plate

7шт.

8

P2537452

PLASTIC PLUG

PLUG - insulator plate, 31 mm (1-1/4 inch) diameter, E hole in plate

1шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Insulator plate Hex, M6 x 16, 8.8

4шт.

10

P35001

WASHER

- lock

4шт.

11

P1334574

NUT

- electrical box, plate retainer

8шт.

12

P1334560

NUT

- electrical box, plate retainer

4шт.

13

P151678

BOARD, PRINTED CIRCU

CIRCUIT - printed, electrical box

1шт.

14

P2329172

SPACER

- special, printed, Serial Range: circuit-box

12шт.

15

P34603

WASHER

- lock

24шт.

16

P2434505

SAFETY NUT

NUT - printed circuit bolt

12шт.

17

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- printed circuit to spacer, hex, full threads, 4 - 0.7 x 8 mm (Replaces bolt P232604)

12шт.

18

P2041150

IGNITION SWITCH

SWITCH - magnetic, bolt-on type

1шт.

19

P133857

SCREW

-, Serial Range: switch-box

1шт.

20

P35001

WASHER

- lock

1шт.

21

P1334574

NUT

- switch mounting

1шт.

22

P241140

RELAY

SWITCH - magnetic, plug-in type, at printed circuit, no longer available, order switch P3041116, Ref. 22A

2шт.

22a

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type, 24 volt

2шт.

23

3021479R2

FUSE

- circuit, 5 amp (Replaces fuse P841297)

5шт.

24

3021478R1

FUSE,A8, White

- circuit, 8 amp

1шт.

25

926644C1

FUSE,A16, Red

- circuit, 16 amp (Replaces fuse P841294)

5шт.

26

P1241265

FUSE

- circuit, 30 amp

1шт.

27

P1652212

HARNESS

- electrical box (Replaces harness P8547278)

1шт.

28

P242406

DEUTZ PART

RESISTOR - electrical circuit, order from Deutz

1шт.

29

P133857

SCREW

BOLT - resistor mounting

2шт.

30

P3528799

WASHER

SPACER - resistor bolt

2шт.

31

825-1406

NUT,M6, Cl 8

Resistor bolt M6, Cl 8

2шт.

32

P40826

SLIDER

CONNECTOR - electrical circuit

1шт.

33

P32531

SCREW

- connector mounting

2шт.

34

P34107X

NUT,M4, Cl 8

- connector mounting

2шт.

35

P640961

CONNECTION

CLIP - connector, printed circuit

1шт.

36

P2036942

SUPPORT

CLAMP - harness, electrical box

3шт.

P303111

SEAL

- bulk, sold by the meter Continued on next figure

1шт.
