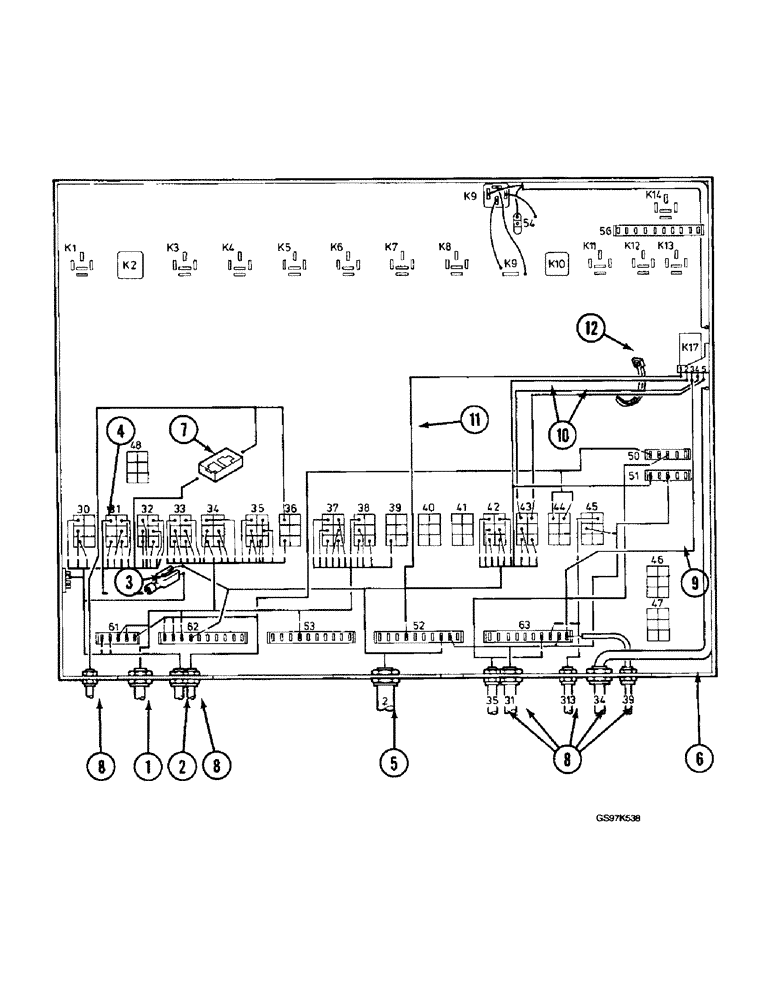

Запчасти Case 220B (4-48) - ELECTRICAL BOX SYSTEM, HARNESS CONNECTIONS TO ELECTRICAL BOX, P.I.N. 74597 & P.I.N. 03201 & AFTER (04) - ELECTRICAL SYSTEMS

1

P9547237

HARNESS

ASSEMBLY - instrument panel, parts list Figure 4-22

1шт.

2

P8547231

HARNESS

- cab wiring, see Figure 4-26

1шт.

3

3178377R1

CONNECTION

CONNECTOR - electrical, two wire (Replaces connector P640964)

1шт.

4

P8647280

ELECTRICAL WIRE

WIRE - connector, cab harness

1шт.

5

P9847237

HARNESS

- engine, see Figures 4-4

1шт.

6

P2241093

CONTROL PANEL

BOX - electric, see Figure 4-64

1шт.

7

P40941

CONNECTION,ELECTRIC

CONNECTOR - electrical instrument panel harness to electrical senders harness

1шт.

8

REF

INSTRUCTION

HARNESS - at turntable, see figure 4-42

1шт.

9

P9547269

ELECTRICAL WIRE

WIRE - ground, electrical box, 400 mm (15-3/4 inch) long

1шт.

10

REF

INSTRUCTION

WIRE - connector electrical box, 300 mm (11-13/16 inch) long, cut from bulk stock P31253

2шт.

11

P9547270

ELECTRICAL WIRE

WIRE - connector electrical box, 500 mm (19-11/16 inch) long

1шт.

12

P336923

CLAMP

STRAP - tie, 117 mm (4-5/8 inch) long

1шт.

P31253

ELECTRICAL WIRE

WIRE - bulk, sold by the meter

1шт.
