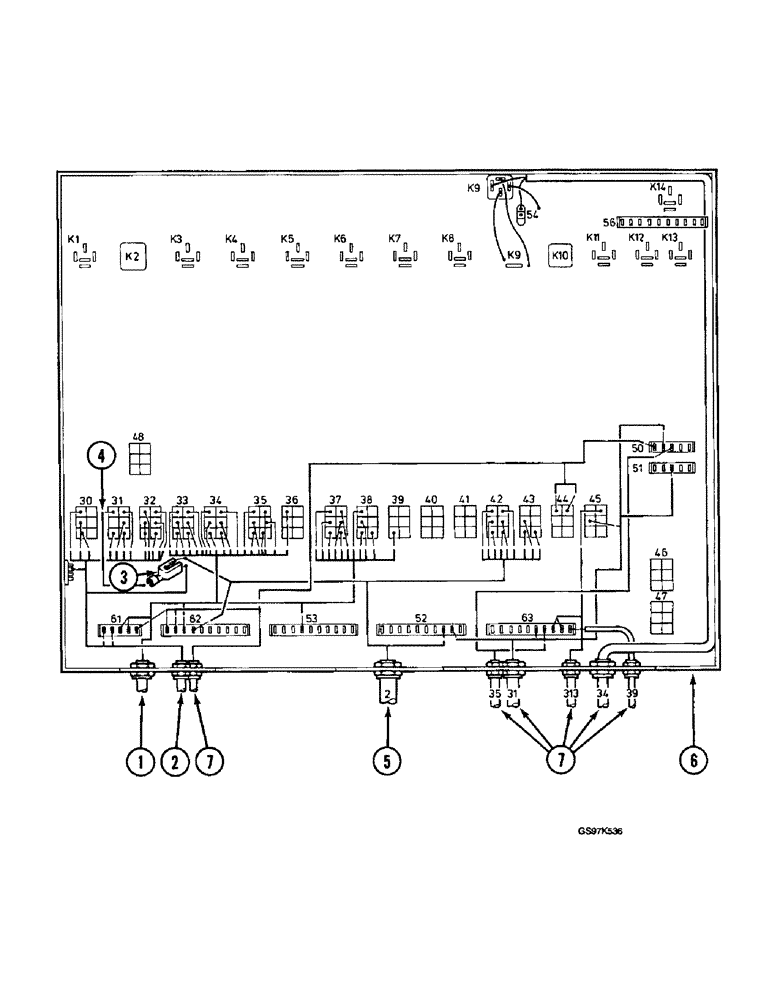

Запчасти Case 220B (4-44) - ELECTRICAL BOX SYSTEM, HARNESS CONNECTIONS TO ELECTRICAL BOX, P.I.N. 74441 THROUGH 74569 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - instrument panel, see Figure 4-20 or 4-22 for correct harness

1шт.

2

REF

INSTRUCTION

HARNESS - cab wiring, see figure 4-24

1шт.

3

3178377R1

CONNECTION

CONNECTOR - electrical, two wire (Replaces connector P640964)

1шт.

4

P8647280

ELECTRICAL WIRE

WIRE - connector, cab harness

1шт.

5

P8647262

HARNESS

- engine, see Figure 4-2

1шт.

6

REF

INSTRUCTION

BOX - electrical, see figure 4-56 or 4-60

1шт.

7

REF

INSTRUCTION

HARNESS - at turntable, see figure 4-40 or 4-42

1шт.
