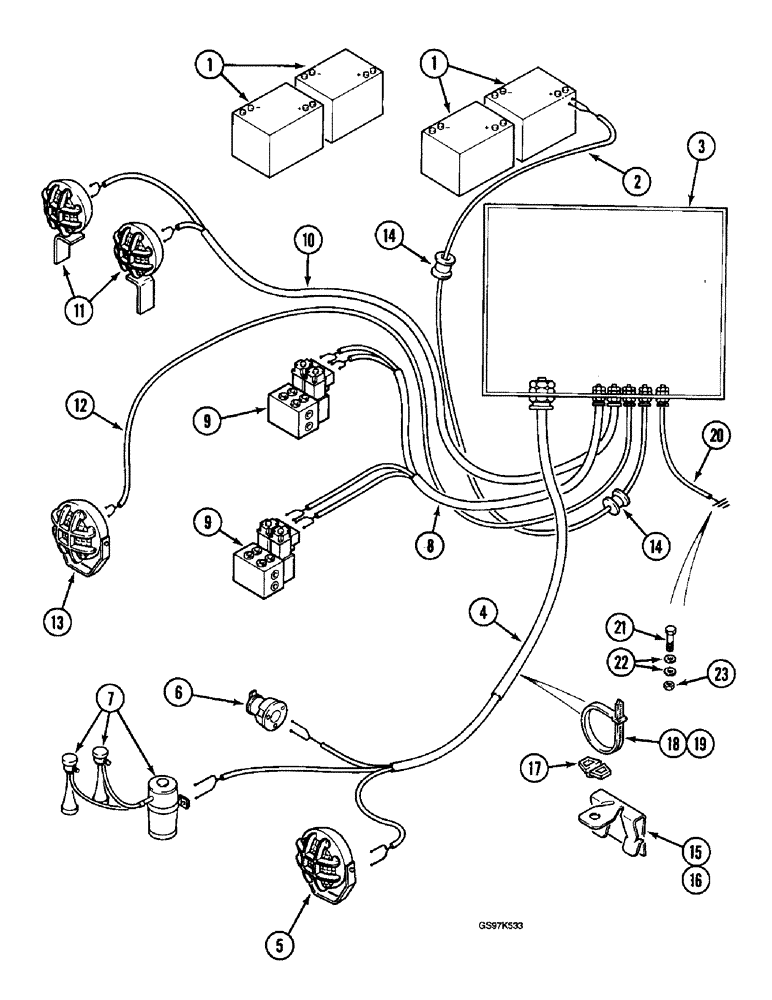

Запчасти Case 220B (4-38) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 74441 THROUGH 74529 (04) - ELECTRICAL SYSTEMS

1

P941895

DRY BATTERY

- 6 volt, see Figure 4-50 (Replaces battery P941879)

4шт.

2

P9247206

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

CIRCUIT - electrical box, printed, see figure 4-44

1шт.

4

P8647256

HARNESS

- horn, trouble lamp and left-hand turntable lamp

1шт.

5

REF

INSTRUCTION

LAMP - turntable, left-hand, see figure 4-50

1шт.

6

P1340721

PEDESTAL

SOCKET - trouble lamp, see Figure 4-50

1шт.

7

P141768

BUZZER

HORN ASSEMBLY - air, parts list Figure 4-50

1шт.

8

P8647266

HARNESS

- solenoid control valves

1шт.

9

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-148

2шт.

10

P8647255

HARNESS

- attachment lamps

1шт.

11

P841725

SPOTLIGHT

LAMP - attachment, see Figure 4-52

2шт.

12

P9247204

CABLE

HARNESS - right-hand turntable lamp

1шт.

13

REF

INSTRUCTION

LAMP - turntable, right-hand, see figure 4-50

1шт.

14

P41478

GROMMET

- harnesses

2шт.

15

P2036902

CLASP

CLIP - retainer, expands from 3 - 7 mm (1/8 - 1/4 inch)

1шт.

16

P2036903

CLASP

CLIP - retainer, expands from 8 - 13 mm (5/16 - 1/2 inch)

1шт.

17

P2036939

CLASP

RETAINER - tie strap

1шт.

18

P336923

CLAMP

STRAP - tie, harness, 117 mm (4-5/8 inch) long

1шт.

19

P51946

CLAMP

STRAP - tie, harness, 258 mm (10-1/4 inch) long

1шт.

20

P8547239

CABLE

HARNESS - ground

1шт.

21

P1133803

SCREW

BOLT - ground harness mounting

1шт.

22

P3528799

WASHER

SPACER - ground harness mounting bolt

2шт.

23

825-1406

NUT,M6, Cl 8

Ground harness mounting bolt M6, Cl 8

1шт.
