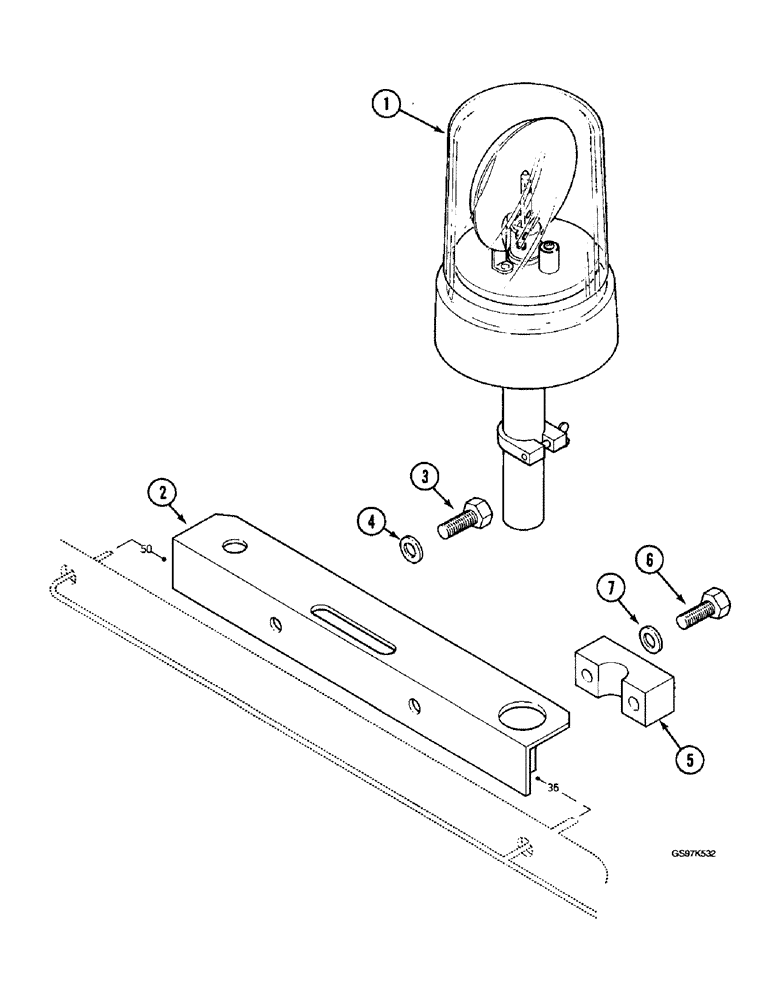

Запчасти Case 220B (4-36) - ROTATING BEACON, IF USED (04) - ELECTRICAL SYSTEMS

1

P841723

LIGHT

BEACON ASSEMBLY - rotating, no longer available, order lamp P841785 and tube P1348276

1шт.

P340501

LAMP

BULB - rotating beacon, not shown

1шт.

2

P4127164

SUPPORT

BRACKET - beacon mounting

1шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

4

P3528799

WASHER

SPACER - mounting bolt, 4 mm thick

2шт.

5

P462032

CLAMP - beacon, no longer available

1шт.

6

P733035

SCREW

BOLT - hex, 6 mm - 1 x 35 mm, full threaded

2шт.

7

P3528799

WASHER

SPACER - clamp bolt, 4 mm thick

2шт.
