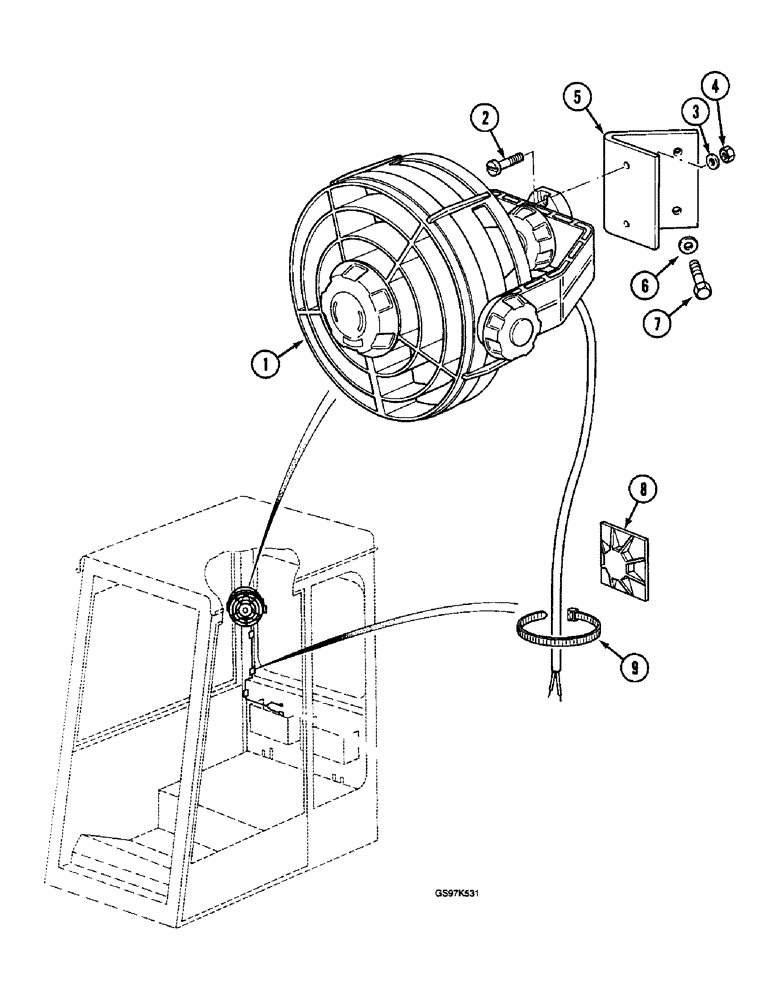

Запчасти Case 220B (4-34) - CAB FAN, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P1241868

VENTILATOR

FAN - cab, includes wiring harness

1шт.

2

P32529

SCREW,Hex Soc Hd, M4 x 16

- fan to bracket

2шт.

3

P34603

WASHER

- lock, bracket bolt

2шт.

4

P34107X

NUT,M4, Cl 8

- hex, bracket bolt

2шт.

5

P2426193

HOOD

BRACKET -, Serial Range: fan-cab

1шт.

6

P35001

WASHER

- flat, 6 mm

2шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Bracket to cab Hex, M6 x 16, 8.8

2шт.

8

P3036928

BASE

RETAINER - tie strap

4шт.

9

P1436941

MOUNTING CLIP

STRAP - tie, wiring harness

4шт.
