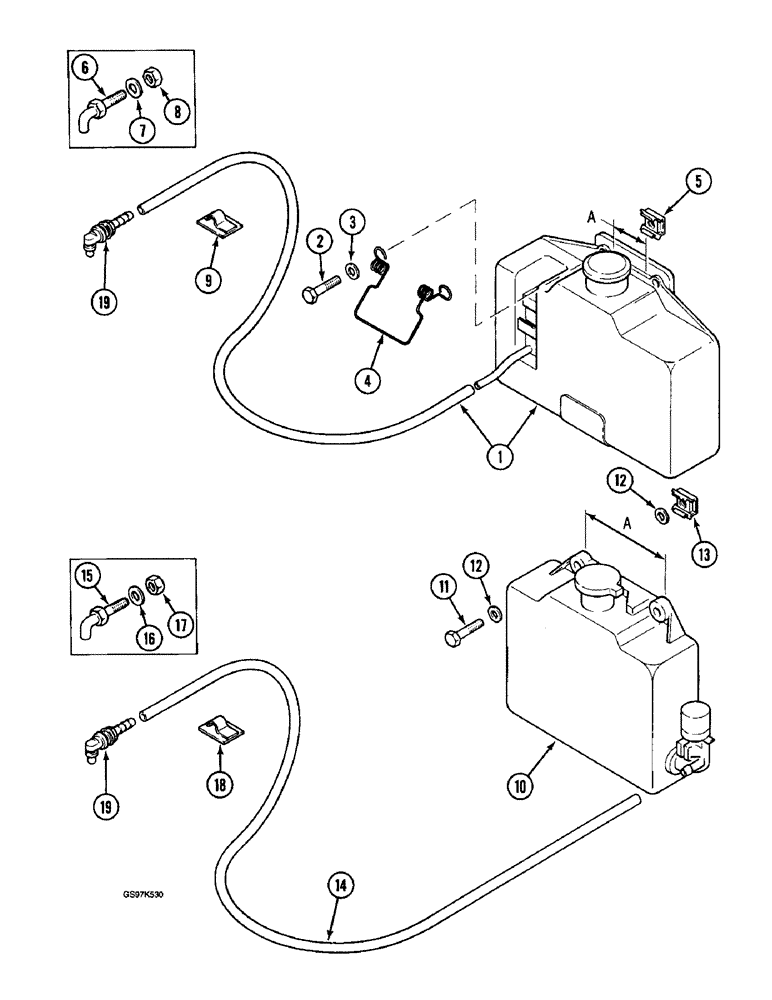

Запчасти Case 220B (4-32) - CAB WDSHLD WSHR,PIN 74441-74597 PIN 03201 & AFT (04) - ELECTRICAL SYSTEMS

1

P141878

WINDSHIELD WASHER

PUMP AND RESERVOIR - windshield washer

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Reservoir mounting to cab, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

2шт.

3

P35001

WASHER

- flat

2шт.

4

P38244

SPRING

- reservoir cap

1шт.

5

P1334574

NUT

- retainer, clip type

2шт.

6

P943210

JET

NOZZLE - windshield washer, no longer available, order nozzle P4143207, item 19

1шт.

7

P4528713

WASHER

SPACER - washer nozzle

2шт.

8

825-1410

NUT,M10, Cl 8

Washer nozzle (Replaces nut P34166) M10, Cl 8

1шт.

9

P1241413

CLIP,ELECTRICAL

CLIP - washer hose to cab frame

2шт.

10

P1241880

RESERVOIR ASSY.

PUMP AND RESERVOIR - windshield washer, mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

1шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Reservoir mounting to cab, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809), washer bracket "A" dimension is 135 millimeters (5 5/16 inch)

2шт.

12

P35002

WASHER

- flat, washer reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

4шт.

13

P1334574

NUT

- retainer, clip type, washer reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

2шт.

14

P1103643

PIPE

HOSE - washer nozzle, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

1шт.

15

P943210

JET

NOZZLE - windshield washer, no longer available, order nozzle P4143207, item 19, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

1шт.

16

P4528713

WASHER

SPACER - washer nozzle, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

2шт.

17

825-1410

NUT,M10, Cl 8

Washer nozzle (Replaces nut P34166), reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch) M10, Cl 8

1шт.

18

P1241413

CLIP,ELECTRICAL

CLIP - washer hose to cab frame, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

2шт.

19

P3743271

JET

NOZZLE - windshield washer, no longer available, order nozzle P4143207, item 19, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

1шт.

19

P4143207

JET

NOZZLE - windshield washer, P.I.N. 03048 and after, reservoir mounting bracket "A" dimension is 135 millimeters (5 5/16 inch)

1шт.
