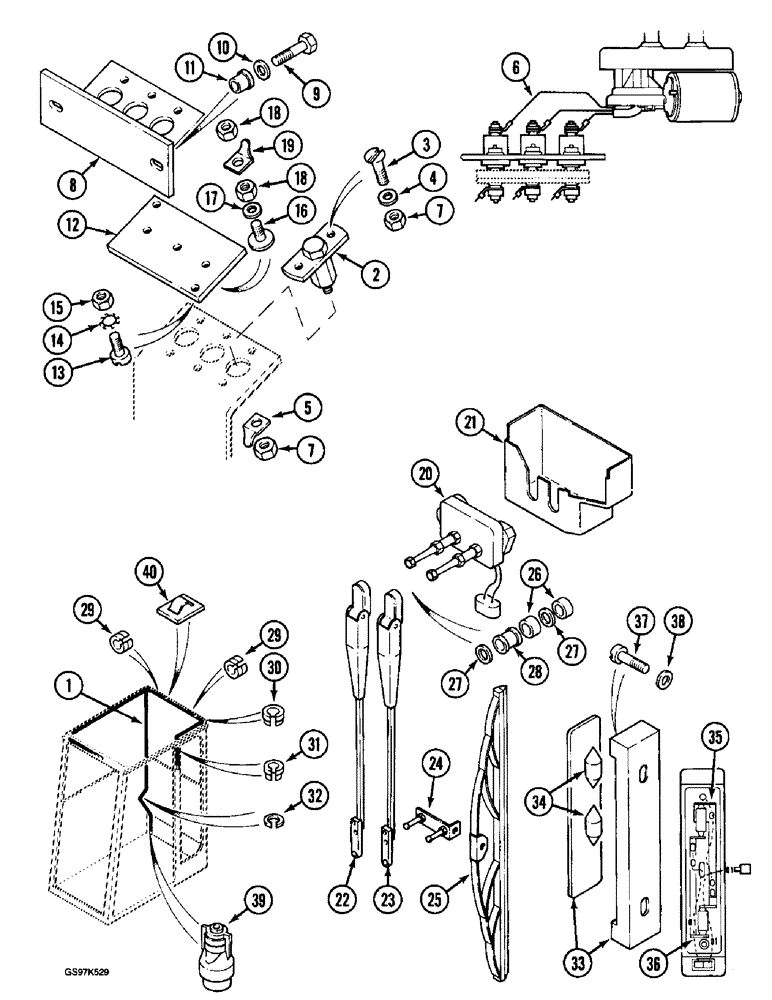

Запчасти Case 220B (4-30) - CAB ELECTRICAL COMPONENTS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 THROUGH 03047 (04) - ELECTRICAL SYSTEMS

1

P8647276

HARNESS

- cab wiring

1шт.

2

P41676

IGNITION SWITCH

SWITCH - terminal, wiper motor

3шт.

3

P32427

SCREW

-, Serial Range: terminal-bracket

6шт.

4

P34703V

WASHER, LOCK

WASHER - lock

6шт.

5

P640921

CONNECTION

TERMINAL - wiper, Serial Range: motor-switch

3шт.

6

P5447281

ELECTRICAL WIRE

WIRE - terminal to wiper motor

1шт.

7

P34107X

NUT,M4, Cl 8

- hex

9шт.

8

P2928214

SUPPORT

BRACKET - mounting, insulator and contact button

1шт.

9

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

10

P3528799

WASHER

SPACER - bolt

2шт.

11

P834513

NUT

RETAINER - bolt, sleeve type

2шт.

12

P1241437

RUBBER INSULATOR

INSULATOR - contact, Serial Range: button-bracket

1шт.

13

P32506

SCREW

-, Serial Range: insulator-bracket

2шт.

14

P34803

WASHER

- look

2шт.

15

825-1403

NUT,M3, Cl 8

- hex, 3 mm - 0.5 (Replaces nut P34105)

2шт.

16

P1033082

SCREW

BUTTON - electrical contact

3шт.

17

P34706Z

WASHER

- lock

3шт.

18

825-1405

NUT,M5, Cl 8

(Replaces nut P34108) M5, Cl 8

6шт.

19

P640921

CONNECTION

TERMINAL - contact button to cab wiring

3шт.

20

P1241823

WIPER MOTOR

MOTOR - wiper

1шт.

21

P3840370

HOUSING

COVER - wiper motor

1шт.

22

P2343292

ARM

- wiper, outer

1шт.

23

P2343291

ARM

- wiper, inner

1шт.

24

P2343293

BRUSH HOLDER

LINKAGE - wiper arm

1шт.

25

108433A1

WIPER BLADE

BLADE - windshield wiper (Replaces wiper P2343294)

1шт.

26

P1128594

WASHER

SPACER - motor shaft, long

4шт.

27

P1446361

WASHER

SPACER - motor shaft, short

4шт.

28

P2541402

GROMMET

BUSHING - motor shaft

2шт.

29

P41447

GROMMET

- rubber, Serial Range: harness-cab

3шт.

30

P141458

GROMMET

- rubber, Serial Range: harness-cab

1шт.

31

P3141476

HALF-BUSHING

GROMMET - rubber, 20 mm (3/4 inch) diameter

1шт.

32

P3141475

HALF-BUSHING

GROMMET - rubber, 16 mm (5/8 inch) diameter

1шт.

33

P841718

COURTESY LIGHT

LAMP - cab, includes cover

1шт.

34

P40565

LAMP

BULB - cab lamp

2шт.

35

P6747257

ELECTRICAL WIRE

WIRE - lamp, upper

1шт.

36

P6747256

ELECTRICAL WIRE

WIRE - lamp, lower

1шт.

37

P32529

SCREW,Hex Soc Hd, M4 x 16

- lamp to cab

2шт.

38

P4328717

WASHER

SPACER - lamp screw

2шт.

39

P40746

CONNECTOR,ELECTRIC

PLUG - cab harness, seven-way

1шт.

40

P1241413

CLIP,ELECTRICAL

CUP - retainer, cab harness

2шт.
